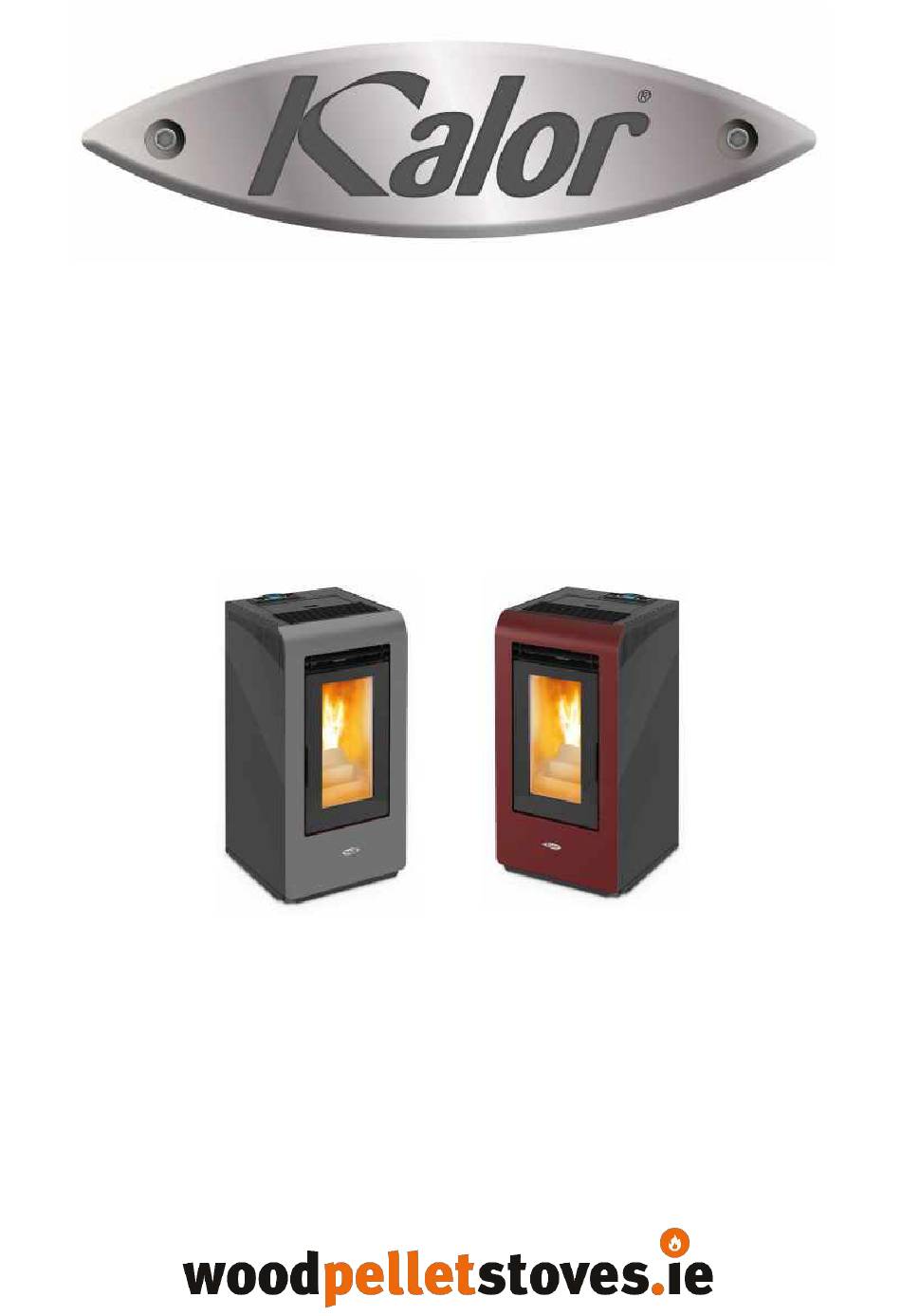

- Page 1 USER MANUAL Martina 7/ Angela 10 LED Air Stoves Instructions for the correct use and maintenance of your Kalor wood pellet air (dry) stove Distribution and warranty in Ireland by:...
- Page 2 Please refer to the notes on the inner back cover of this manual for further details regarding the installation, commissioning and warranty for your stove/boiler. We wish you all the best with your new Kalor stove/boiler and hope it serves you well for many, many years.
- Page 3 Dear Client, We thank you for having chosen one of our products, the fruit of technological experience and of continual research for a superior quality product in terms of safety, dependability, and service. In this manual you will find all the information and useful suggestions to use your product with the maximum safety and efficiency.
-
Page 4: Safety Information
1.0 Norms and declarations of conformit 1.1 Safety Information Please carefully read this use and maintenance manual before installing and operating the stove! the shut down stage, guaranteeing the safe operation of the stove. deposit more ash than others. 1.2 Responsibility With the delivery of the present manual, we decline all responsibility, both civil and penal, for accidents deriving from the partial or total lack of observance of the instructions contained herein. - Page 5 tubes become very hot: during operation do not touch these 2.0 Control board AL C AL F Display 2.1 Display keys and functions 1. Temperature / working power decrease 2. Temperature / working power increase 3. Key On/Off 4. Receiver 5.
- Page 6 6. Led AL F 7. Led chrono-thermostat 8. Led temperature ok the display. 9. Led pellets loading 10. Led resistance 11. Display LED 7 segments On the display you can read the different working functions of the stove, the room temperature and the set working power. 12.
-
Page 7: First Lighting Of The Stove
AL C AL F Please remember that the first lighting must be performed by our certified Authorized Assistance Centre (Law 37/2008) that verifies the installation and completes the guarantee. During the first lighting the environment should be well ventilated since during the first hours of operation unplea- sant odours could develop due to the physical stabilizing of the paint and from the grease in the tubyère wrapping. - Page 8 and the room temperature, according to the power bustion chamber. 3.2. Stove switching off switched off, the fan continues working for a set time in order to grant a fast smokes exhaust from the combustion chamber. If you have a model with remote control, you just need to switch the remote control off keeping the key pressed for starting up the stove again.
- Page 9 Please join the following procedure to set OFF1 le for the automatic switching off of the stove le for the automatic switching on of the stove SEND OFF2 tion to the pcb. le for the automatic switching off of the stove control.
- Page 10 How to change the temperature the wished temperature, confirm your selection pressing temperature ECONO SEND TURBO How to change the power board of the stove according to the selected power. derstand how the stove works in this mode. ECONO SEND TURBO Automatic Power Function room temperature on the control board of the stove.
- Page 11 Function turbo to heat your room quickly, for example when you have just switched the stove on. When you choose this fun ction, the stove will work at its max. power for a period of thirty minutes and the temperature will be automatically restart working as it did before you activated the turbo function.
- Page 12 Function SLEEP money. One hour after its activation, the system starts de transmit your selection to the stove. confirm your selection. Please note: if the stove is working in “Auto”, it is not possible to activate the function sleep. Function chrono-thermostat (available only through the remote control) WARNING: the time of the automatic switching on and off must be set when the remote control is Off! WARNING: in the event of an even very short lack of current, you will miss the set time for the automatic switching on or off.
- Page 13 Automatic switching off OFF1 the symbol OFF1 OFF1 OFF1 will now read the set switching off time on the remote control. ECONO SEND TURBO ON 1 AUTO OFF 1 not show the previously set time schedule anymore. Program 2 (ON2 and OFF2) As above but with the keys ON2 and OFF2.
-
Page 14: Display Information
4.1 How to replace the batteries of the remote control If you need to replace the batteries of the remote control, the old batteries with the new ones respecting the pola 5.0 Display information “OFF” “FAN - ACC” “LOAD WOOD” “FIRE ON”... - Page 15 5.1. Alarm codes COOL FIRE In the event of an even very short lack of current, the stove switches off. gram the eventual switching on and off times again. In the event of a lack of current, the stove will loose any previous time settings.
-
Page 16: Cleaning And Maintenance
6.0 Cleaning and maintenance Follow carefully the following cleaning instructions. Failure to follow these instructions could create problems with the operation of the stove. 6.1. How to clean the combustion chamber (once a month) Once you have cleaned the pipes, leave the scraper removed so that the removal of the indoor walls of the combustion chamber will be easier. - Page 17 Pict. 7...
- Page 18 6.3 Cleaning the surfaces to try it on a small section out of sight or contact the Authori- zed Assistance Centre for information regarding the product. 6.4 Cleaning the metal parts used, our company declines any responsibility. Eventual variations in the colour of the metal parts can be caused by an incorrect use of the stove. it is necessary to daily clean the brazier and often clean the ash box.
- Page 19 6.7 Daily cleaning with a scraper (if supplied) With the stove shut down and chill, activate the scraper in the heat exchange ducts by pushing and pulling the lever, loca 6.8 Cleaning of the hit fire support hooks have been placed correctly. Holding hangs upwards...
-
Page 20: Cleaning The Glass
6.9 Ash box vacuum to remove all the ash deposited within. frequently depending on the quality of the pel 6.10 Cleaning the glass shut down. How dirty the glass becomes also depends on the quality and quantity of pellets used. of this gasket can compromise the function of the stove. -
Page 21: Replacing Elements
7.0 Replacing elements 7.1 Replacing the glass only from a strong impact or from improper use. 8.0 Annual maintenance by the Authorized Assistance Centre that the product remains efficient and guarantee safe operation. Operations to perform every season before the first lighting. -
Page 23: Installation
(boilers and boiler stoves). Stove Warranty Your new Kalor appliance warranty is valid for two years with the following exclusions: The following components are covered by 12 month warranty only: •... - Page 24 Wood Pellet Stoves.ie Newport, Co. Mayo, Ireland Email: info@woodpelletstoves.ie Web: www.woodpelletstoves.ie...
