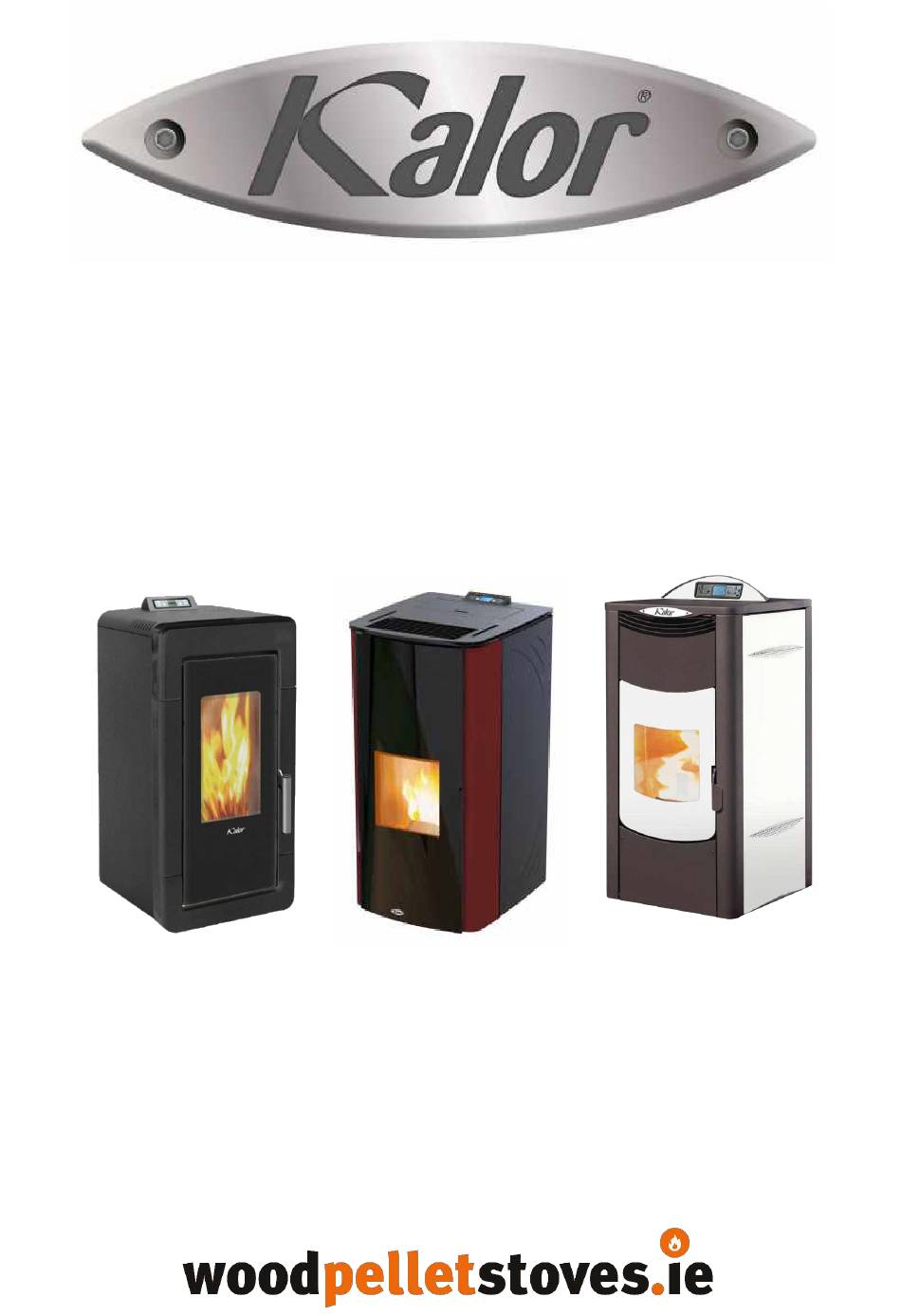

- Page 1 USER MANUAL Ilaria/Nadia 24B/24BDD Boiler Stoves Instructions for the correct use and maintenance of your Kalor wood pellet boiler stove Distribution and warranty in Ireland by:...
- Page 2 Please refer to the notes on the inner back cover of this manual for further details regarding the installation, commissioning and warranty for your stove. We wish you all the best with your new Kalor stove and hope it serves you well for many, many years.
- Page 3 oiler Stoves Dear Customer, Cod. 001121 We thank you for having chosen one of our products, the fruit of technological experience and of continual research for a superior quality product in terms of safety, dependability, and service. In this manual you will find all the information and useful suggestions to use your product with the maximum safety and efficiency.
- Page 4 Norms and declarations of conformity Our company declares that the stove conforms to the fol- • Use of non-original replacement parts; lowing norms for the EC European Directive labelling: • Exceptional events. • 2014/30 (regulation EMCD) following amendments; • 2014/35 UE (Low Voltage Directive) and following amendments;...
- Page 5 Charge pellet Fuel is loaded from the upper part of the stove by opening Never remove the protection grille in the a door. hopper. When filling, do not let the sack Pour the pellets in the hopper; vacuum contains about of pellets touch any hot surfaces.
-
Page 6: Operating Area
Operating area For proper functioning and a good temperature distribution, the stove shoul be positioned in a location where it is able to take in the air necessary for combustion of the pellet (about 40 m /h must be available), as laid down in the standard governing the installation and in accordance with local national standards. - Page 7 Connection to the flue pipe The flue pipe must have internal dimensions not larger than 20x20 cm, or diameter 20 cm. In the event of larger dimensions, or of the flue pipe being in poor condition ( for example cracks, poor insulation, etc.), it is advisable to fit a stainless steel pipe of suitable diameter inside the flue pipe throughout its length, right up to the top.
- Page 8 Fireplace flue gas Distance to objects Avoid contact with combustible materials (example: The thermostove should be inspected on all sides, so you wooden beams) and in any case provide for their insulation have to keep a distance of at least 40 cm at the back and with flame retardant material.
-
Page 9: Remote Control
Remote Control The remote control (Fig. 3) used to adjust water temperature power and the on/off functions for the pellet thermostove. To start the thermostove, press key and the stove will automatically enter the starting phase. Press keys (1) and (2) to adjust temperature, and use keys (6) and... - Page 10 PARAMETER M. UNITS TH17 Heat input 18,03 Nominal heat output 17,14 Reduced heat output 4,00 Water heat output 13,70 Reduced water heat output 3,10 CO concentration at nominal reference (13% O mg/m 48,23 CO concentration at reduced reference (13% O mg/m 345,4 Nominal efficiency...
-
Page 11: Plumbing System Connection
Plumbing system connection The connection of the stove to the plumb- ing system must be made ONLY by spe- cialized personnel who are capable of car- rying out installation properly, in compliance with current standards in the country of installation. The manufacturer will not be held responsible for damage to persons or things in the event of failed operation if the aforementioned warning is not... - Page 12 In case it is necessary additional water it is necessary to be made the filling process when the heater is cooled to room temperature. These are precautions to prevent the arising of thermal stress of the steel body of the heating stove. •...
- Page 13 Water Characteristics The characteristics of the water used to fill the system are very important to prevent the build-up of mineral salts and the formation of incrustations along the pipes, in the boiler and in the heat exchangers. Therefore, please get your plumber’s advice concering: •...
- Page 14 Configuration of the hydraulic diagram of the boiler BY A SPECIALIZED TECHNICIAN Before starting the boiler, it is necessary to configure the hydraulic scheme on which we want to work. The boiler is set up to receive the clean contact of an external thermostat (open / closed, the thermostat must not give tension to the back. If the thermostat carries voltage to the board causing faults, the warranty is void), two temperature probes and a motorized valve .
- Page 15 Following the principles of operation of the various hydraulic diagrams. Important considerations: • healthcare will always have priority • There are three types of stand-by: Type 01: the ambient temperature detected by the probe on the board has reached the SET AIR set Type 02: the water temperature in the boiler has reached the SET H2O set Type 03: the external thermostat has detected that the desired temperature has been reached and therefore the contact is open.
- Page 19 57 57...
