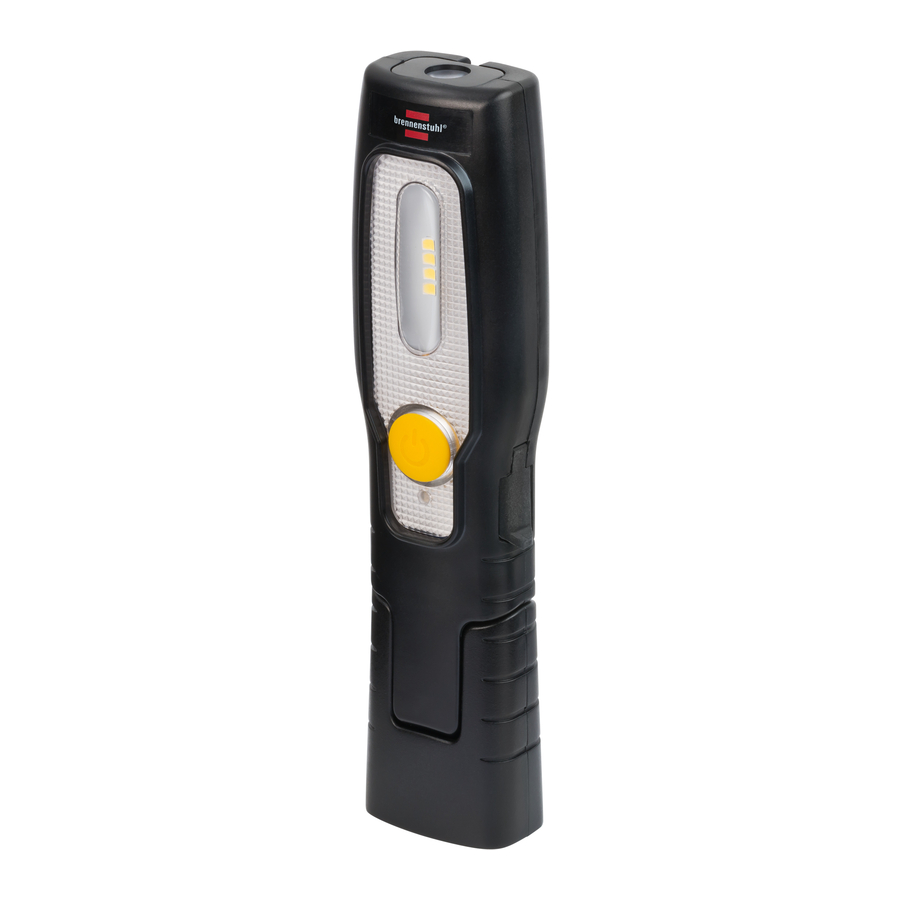

Brennenstuhl HL 200 A - Rechargeable LED Hand Lamp Manual

SAFETY INFORMATION

Carefully read these operating instructions before using the device.
Do not use the light if it is damaged - danger of death. In this case, contact an electrician or refer to the specified service address.
Do not look directly into the light.
Never open the device.
Do not use the working light in potentially explosive atmospheres - risk of death!
To charge the batteries, only use a certified USB power supply unit.

COMMISSIONING

Before using the device for the first time, completely discharge and recharge the rechargeable battery once.
Switch at the front :
press 1x: top LED on/
press 2x: front LEDs on/
press 3x: all LEDs off
Lamp can be used during charging.
Charging indicator : red during charging, green when accumulator is charged.
In cases of extended non-use, charge the rechargeable every 3 months.

CONTROL ELEMENTS

On/Off switch
Charging indicator (red/green)
Charging socket Micro-USB with cover cap
Front spotlight
LED lamp head
USB charging cable/Micro-USB
Swivelling hook
Magnet

CHARGING

Charge your battery using the supplied USB cable only. Exclusively use a certified USB power source (e.g. charging device, computer) with a maximum of 5 V output voltage: Connection: USB source – USB charging cable - charging socket .

TECHNICAL DATA

Rechargeable battery:	integrated, lithium-ion 3.7 V/1.0 Ah
USB charging input:	5.0 V DC, 1 A
Charging duration:	~2 h
IP class:	IP 20
Temperature range:	-5°C – +40°C

Electronic appliances, batteries and rechargeable batteries must not be disposed of in household waste!

Old electronic and electric devices, as well as batteries and rechargeable batteries are special waste and need to be gathered separately and be sent for recycling in an environmentally friendly manner.
