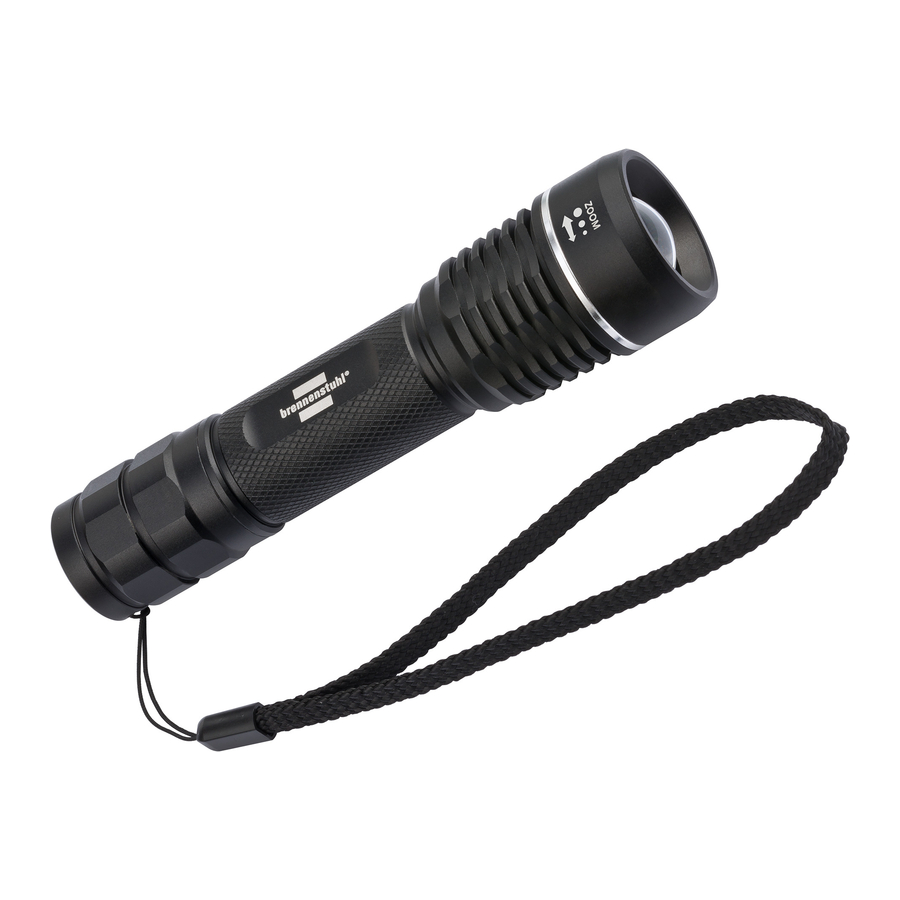

Brennenstuhl TL 600 AF, TL 1200 AF - LuxPremium LED Flashlight Manual

Table of Contents

Contents

1 SAFETY INSTRUCTIONS
2 OPERATION
3 OVERVIEW OF THE CONTROLS
4 CHARGING
5 BATTERY EXCHANGE
6 TECHNICAL SPECIFICATIONS
7 DECLARATION OF CONFORMITY
8 Documents / Resources
- 8.1 Download manual

SAFETY INSTRUCTIONS

Read the operating instructions carefully prior to use.
Do not use the torch if it is damaged.
Please contact an electrician or write to the service address provided.
Do not look directly into the light.
Do not use the flashlight in an explosive environment as this poses a fatal risk!
Only use a certified USB source to charge the batteries.

OPERATION

Drain the battery completely and recharge before using the lamp for the first time.
2 possible modes of operation
- Push the switch (1): 100% - off - 40% - off - 10% - off - SOS - off
- Soft-touch function by tipping the switch: 100% (push) - 40% - 10% - SOS - off (push).
The flashlight CANNOT be used while charging.
Charging indicator (5): red during charging, green when the battery is charged.
If the lamp is not used for an extended period of time, it is recommended that the battery be charged every 3 months.

OVERVIEW OF THE CONTROLS

On/Off switch
Switch end piece
Charger socket
Sealing cap
Charging indicator (Red/Green)
Focus
USB charging cable

CHARGING

Screwing off the switch end piece (2). Only charge your battery using a USB charging cable (7).
Exclusively use a certified USB power source (e.g. charging device, computer) with a maximum of 5 V output voltage:
Connection: USB source – USB charging cable (7) – charging socket (3). Screwing the switch end piece (2) down.
Please note that the product is only IP67-compliant (dust-tight and protected against temporary immersion in water) if the battery has been correctly inserted.
During the charging process, the product is not IP67-compliant (dust-tight and protected against temporary immersion in water).

BATTERY EXCHANGE

Unscrew switch end piece (2), screw off end cap (4), remove and replace battery, screw on end cap (4), screw on switch end piece.
Replacement batteries (TL 600 AF) can be purchased from Hugo Brennenstuhl (see address) under the art. no. 0293135.
Replacement batteries (TL 1200 AF) can be purchased from Hugo Brennenstuhl (see address) under the art. no. 0293143.

TECHNICAL SPECIFICATIONS

Type description	TL 600 AF	TL 1200 AF
LED:	CREE-LED	CREE-LED
Battery:	KBT 18650 dual pole Li-Ion 3.7 V/2.6 Ah	KBT 26650 dual pole Li-Ion 3.7 V/4.0 Ah
USB charging input:	5 V/1 A (Micro-USB)	5 V/2 A (Micro-USB)
Charging time:	~ 4.0 h	~ 4.0 h
Protection class:	IP 67/IK 07	IP 67/IK 07
Temperature range:	-10°C - +40°C	-10°C - +40°C
