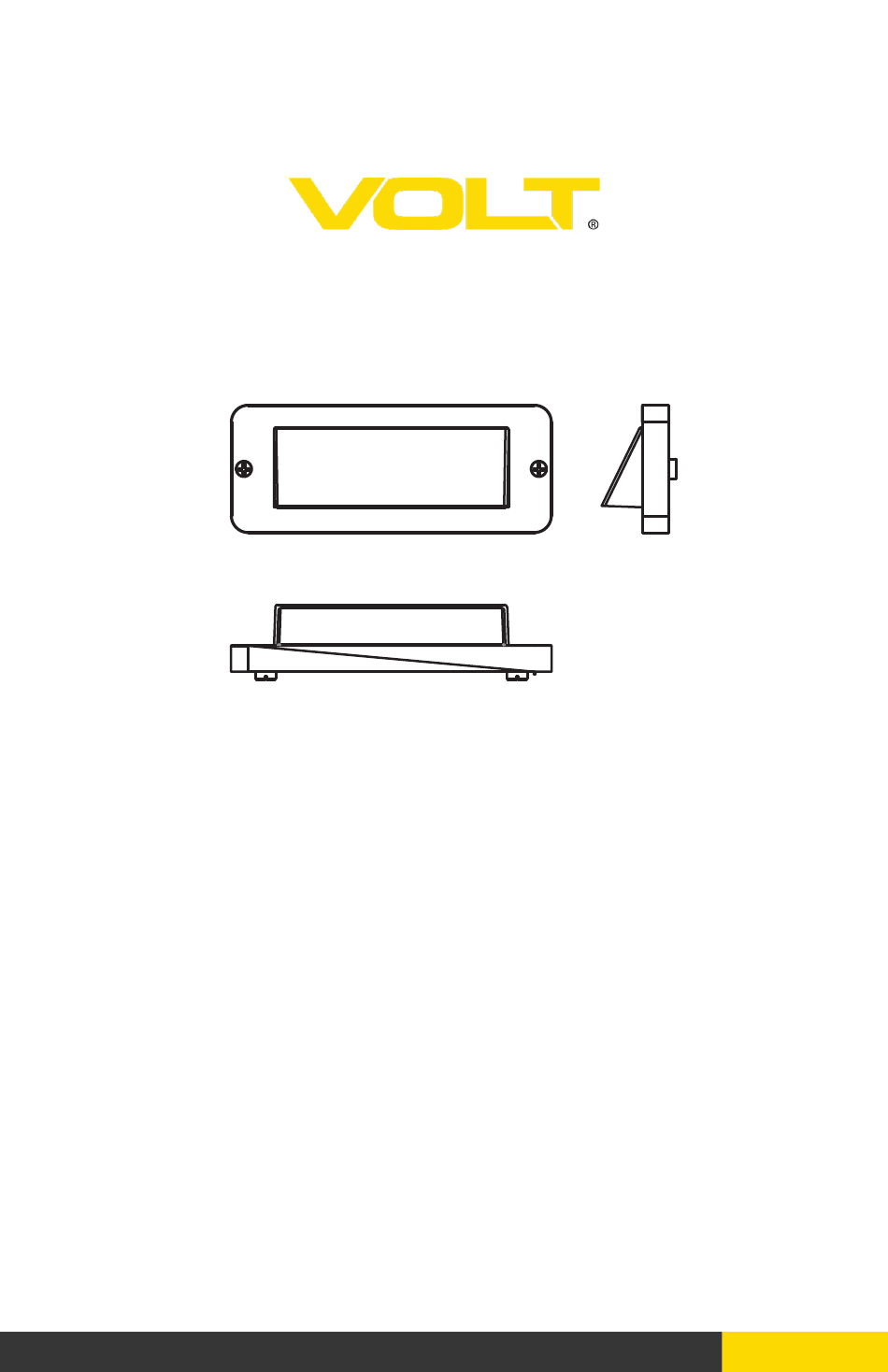

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT ® ITEM: VHS-610X-25-BBZ 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT - VHS-610X-25- ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instruc- tions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Luminaire B. (2) Anchors C. (2) Screws PRODUCT DIMENSIONS 5.92” 2.35” 0.70” 5.92” 2.35” 1.25” 5.92” 2.35” 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 4 INSTALLATION INSTRUCTIONS VOLT - VHS-610X-25- ® Install Luminaire Note: Anchors are required Anchor for concrete or brick walls. Hold the luminaire on the wall and mark two points for the anchors using the mounting holes as guides. Then drill the proper holes Screw using the marks.
- Page 5 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 6 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
