- Page 1 PROFESSIONAL CAMERA SUPPORT USER’S MANUAL & Maintenance...
- Page 2 DISCLAIMER CARTONI certifies that the information contained in this manual is correct at the time of printing. CARTONI reserves the right to update or change any specifica- tion, design and/ or functionality of the product and the relevant information at any time and without notifi- cation.
- Page 3 3.1 SETTING THE SPORT 200 3.2 MOUNTING A CAMERA SUPPORT HEAD 4. SAFETY PRECAUTIONS 5. DISASSEMBLING AND STORAGE 6. SERVICE 6.1 ROUTINE MAINTENANCE 6.2 EXTRA MAINTENANCE AND SPARE PARTS 6.5 DECOMMISIONING CARTONI ® All rights reserved © Manual Version: 1.0...
- Page 4 IT IS HEREBY CERTIFIED THAT THE QUALITY MANAGEMENT SYSTEM OF For information concerning validity of the certificate, you can visit the site CARTONI S.P.A. www.rina.org Per i requisiti della norma non VIA DI PORTONACCIO, 33/B 00159 ROMA (RM) ITALIA applicabili al campo di applicazione NELLE SEGUENTI UNITÀ...
-
Page 5: Warranty
In the case of replacement of single parts, these can be supplied free of charge by CARTONI, but the owner will bear the cost of transport/duty charges for the parts. The warranty is only valid if the tripod has been used properly as outlined... -
Page 6: A Uthorized Personnel
• Removal or mistreatment of marks and/or labels containing data and technical specification CARTONI accepts no responsibility for damage to the tripod caused by im- proper use or the malfunction of other equipment connected to the Cam- era support. In any case, the warranty only covers tripod damage and/or malfunctions... -
Page 7: Specifications

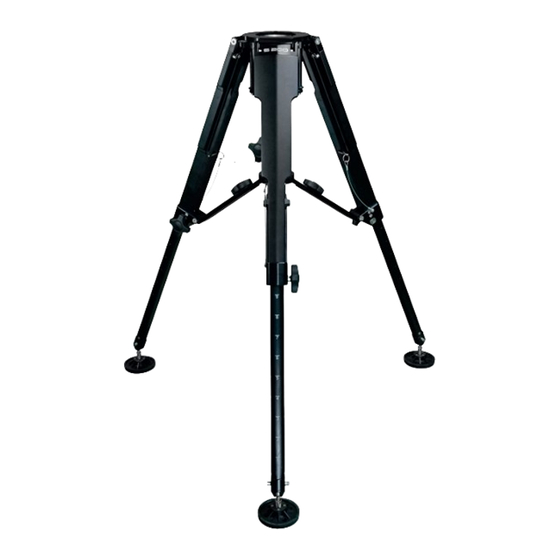

2. t echnIcal pecIfIcatIons Flat upper base Orientable foot Level bubble Extendable leg Central brace knob Tripod height reference Safety pin & housing Mid-level spreader knob Mid-level spreader Tripod leg Leg clamp knob 4 Peg holes... - Page 8 • Weight distribution must verify that the centre of gravity (CG) of the mounted elements stays well inside the opened tripod base diameter. CARTONI accepts no responsibility for malfunctions or damage to persons or equipment, materials, etc. when used with equipment other than those indicated in the manual.
- Page 9 Prior to setting-up, please check the state of packaging for its integrity on arrival, and also make sure that none of the components show signs of impact. If any such damage occurs CARTONI should be informed immedi- ately. If the Sport 200 is to be forwarded elsewhere, it should be carefully packed with care not to damage any of the components.
- Page 10 On open position, the mid-level spreader remains in an- gled position; do not force to total horizontal position. ❹ To set the tripod height, remove the safety pins (4) from their safety hous- ings (4) or if inserted, release the three leg clamp knobs (6), lift the tripod pulling up the upper flat base (1) till the desired height, then lock in place the three extendable legs (8) with the three leg clamp knobs (6);...
- Page 11 ❹ To obtain horizontal position for the upper flat base (1), release the extend- able leg clamp knobs (6), check the level bubble (2) to horizontal position and lock in place all the legs with the three leg clamp knobs (6). To widen the three tripod legs (11), release the three mid-level spreader knobs (10), extend the mid-level spreader (5) and lock in place all the legs with the three mid-level spreader knobs (10);...
-
Page 12: Safety Precautions
Each foot has 4 holes for optional Pegs ❼ (12). To install a dolly or a floor spreader, bend the three feet (7) outwards in order to access the tripod hooking bar. ⓬ 3.2 m ountIng a amera upport The tripod flat upper base (1) has a standard Mitchell base attachment and 4 holes for Vinten standard attachment;... - Page 13 Anyone who operates the tripod must be throughly trained in the correct methods of use and its safety features. The tripod must be used according to the instructions indicated in this manual. IsassemblIng and torage Before folding the tripod ensure that the load has been removed.
-
Page 14: Routine Maintenance
Whatever extra maintenance requires to be carried out by CARTONI’s own technical servicing staff or an authorized service station appointed by CAR- TONI. Information on authorized service station staff can be obtained by contact- ing CARTONI or www.cartoni.com... - Page 15 CARTONI Items whose center of gravity (CG) is too close to the opened tripod base diameter (Jib arms, Teleprompters, ecc.) could cause the tripod to tip over;...
- Page 16 PROFESSIONAL CAMERA SUPPORT CARTONI S.p.A Via di Portonaccio, 33/B - 00159 Rome (Italy) Phone +39 06 4382002 Fax +39 06 43588293 cartoni@cartoni.com cartoni.com April 2023...
