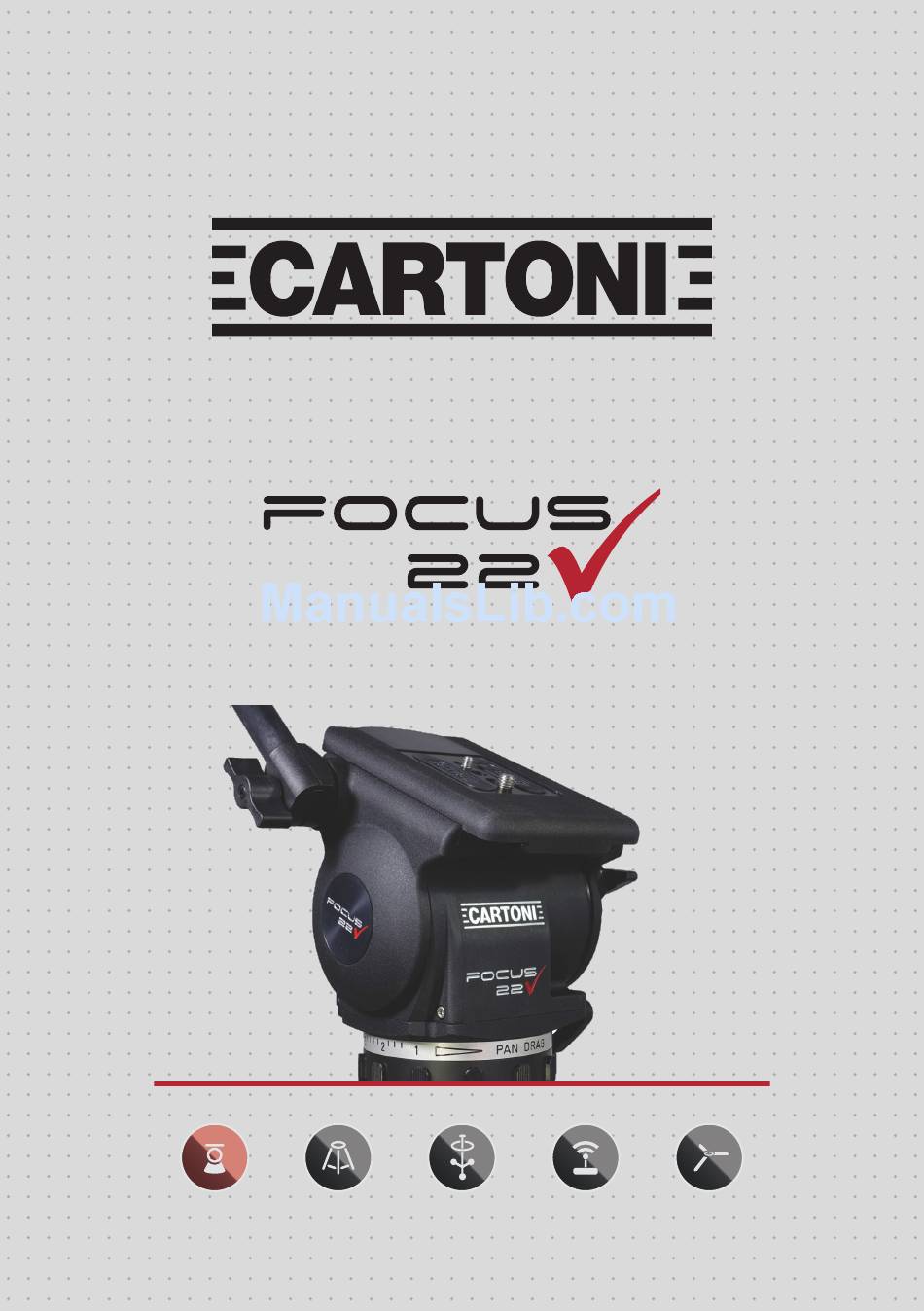

  • Page 1 PROFESSIONAL CAMERA SUPPORT...
  • Page 2 CARTONI ® / All rights reserved © User Manual Version: 1.0 Issue date: August 2016 CARTONI S.p.A. Via di Portonaccio, 33/B 00159 - Rome (Italy) phone. +39 06 4382002 fax. +39 06 43588293 email. cartoni@cartoni.com www.cartoni.com...
  • Page 3 USER MANUAL...
  • Page 4 INDEX Safety & Set-up instructions Operating elements Procedures Technical data Maintenance Warranty Accessories & Product line...

  • Page 5: Safety & Set-Up Instructions

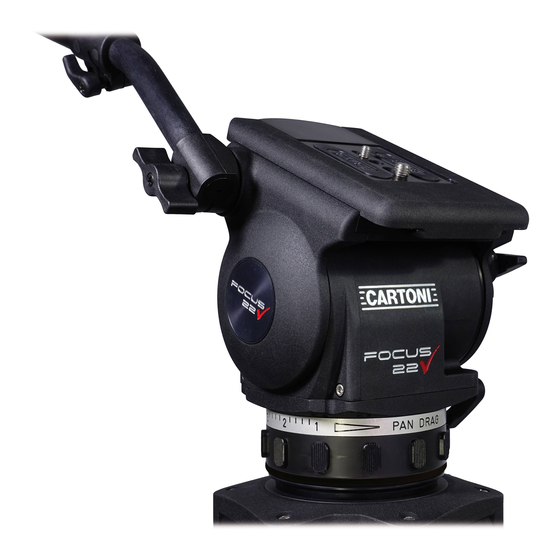

    FOCUS 22, weighs only 3.9 kg (8.6 lbs) thanks to the extensive use of extremely lightweight magnesium alloys. The 22 interfaces with all 100 mm bowl base tripods.

  • Page 6: Operating Elements

    2. OPERATING ELEMENTS Camera plate Sliding camera platform Pan bar attachment Pan bar extension Pan drag selector Pan brake lever Tilt brake lever...
  • Page 7 Camera plate release lever Safety button Sliding platform lock Tilt drag selector Illuminated spirit level Counterbalance selector Tie down knob Pan bar...

  • Page 8: Procedures

    3. PROCEDURES 1 - Place the FOCUS 22 on your Tripod by loosening the tie-down knob (14) under the Fluid Head and level using the level bubble (12). In low light conditions, press button (12) for light. 2 - Connect the Pan bar (15) to the Fluid Head tightening the lever (3) on the Pan bar attachment and select your desired operating angle.

  • Page 9: Technical Data

    Dirt accumulated during storage may be removed using a brush or Air spray. CARTONI products main mechanisms are sealed as they are also built for professional outdoor use. However, use under rough conditions will require special care. Salt water is very corrosive and can cause extreme damages.

  • Page 10: Warranty

    6. WARRANTY All CARTONI Fluid Heads & Pedestals have a free of charge three (3) year warranty. Register your product at www.cartoni.com within 30 days from date of first purchase/invoice to receive further two (2) year warranty for the unsurpassed free five (5) year warranty.

  • Page 11: Accessories & Product Line

    7. ACCESSORIES & PRODUCT LINE For the complete Accessories list & Product line please visit CARTONI’s official website www.cartoni.com. Every product has an updated list of compatible items sorted by groups, with descriptions and technical data.
