RSA Lighting Combolight PAR30 120V Specifications

DESCRIPTION

An adjustable Multi-lamp Recessed fixture for trimless installation suitable for
downlighting and accent applications. Utilizes FOUR (4) PAR30 120V lamps in
a 2x2 square configuration.
For new construction applications. Insulation must be kept 3" from all sides
and at least 1" above the housing.

SPECIFICATION FEATURES

A ... Housing
Housing, junction box & trimless
meshplate assembly are all steel
construction. Perforated meshplate allows
for trimless installation in drywall/plaster
ceilings by allowing the ceiling's mudding
compound to be applied right up to the
edge of the fixture opening. Includes
a beveled "knife-edge" lips to ensure a
clean edge. Can accommodate 0.50" to
1.25" ceiling thickness. Optional Chicago
Plenum configuration available.
B ... System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture. Vent
holes in housing provide cooler operation.
C ... Junction Box
Junction Box is UL listed for through
For use with PAR30 120V lamps 75W max.

ORDERING INFORMATION

CX
Configuration
CX
= COMBOLIGHT
Recessed Four (4) Light
Square
Housing
N New Construction
=
C
= Chicago Plenum
www.cooperlighting.com
branch wiring, 6 #12 90º C supply
conductors or 60º C for end of run. The
fixture is also UL listed as 'access above
ceiling not required'.
D ... Electrical
Electrical accessible through ceiling
opening. J-Box located on the side
wall of the housing behind removable
access doors. Electrical components on
individually removable "trays" for easy
maintenance.
E ... Lamps
Four (4) PAR30 120V lamps mounted in
adjustable double gimbals. Lamp holders
are individually removable and may be re-
gressed 1" for additional cut-off. Lamp can
accept up to three optical accessories (i.e.
lens + hex louver + snoot). 45º x 45º locking
lamp adjustment. Beveled-edge lamp ring

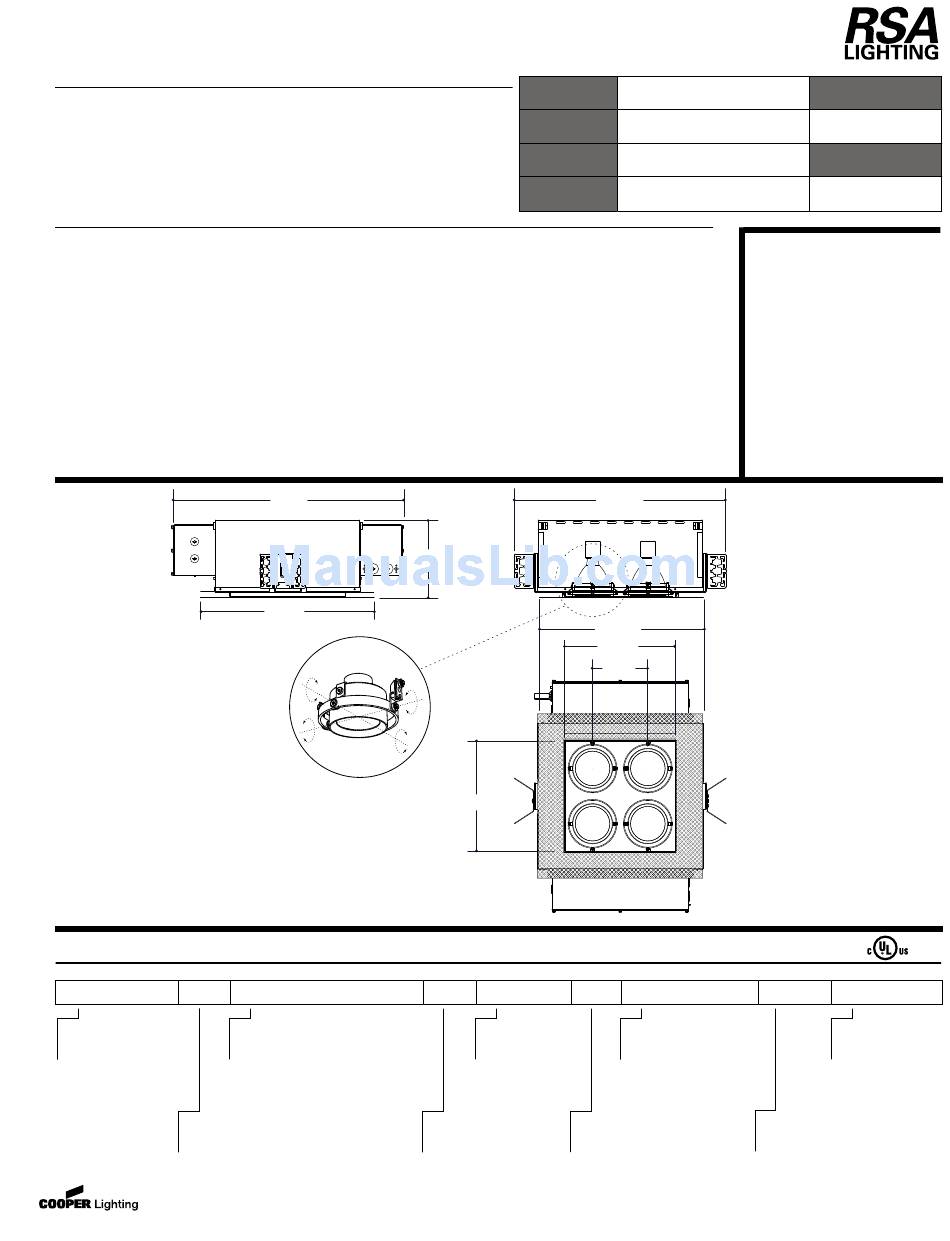

23.87"
17.70"
Double
Gimbal
45º x 45º
Adjust
Lamp Type / Wattage Label
075P30 = 75 Watt max. PAR30 120V
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Project
Comments
Prepared by
is secured with threadless, bayonet ac-
tion. Optional retractable arm is available
for lamp pulldown and extreme aiming.
Includes Med. base sockets.
F ... Mounting
Butterfly Brackets accept 1/2" EMT,
C Channel, Tbar fasteners, and bar
hangers. Four tabs on housing for
securing to structure. Perforated flaps
along housing sides for securing trimless
insert to fixture and drywall.
G ... Labels
cULus listed for non-type IC
applications, suitable for use in damp
locations.
Ceiling Cut-Out: 12.18" x 12.18"
7.45"
Thermal
Protector
11.38"
N 120 N
Primary Voltage
1 = 120V
Power Supply
Trim Insert
N None - Line Voltage Lamp
= N = Trimless
COMBOLIGHT
Four (4) Light Square
21.83"
17.70"
11.38"
5.69"
Electrical Enclosure
Wiriing Compartment
Perforated
Meshplate
Electrical Enclosure
Wiriing Compartment
Lamp Mechanism
G Double Gimbal
=
R
= Retractable Double Gimbal
Housing Interior/Electrical Door/Sleeve
Finish
W
=
B Black
=
S = Industrial Silver
Type
Date
®
Next Generation
Recessed
Multi-Lamp Fixture
PAR30 120V
New Construction
Housing
Trimless
N
Trim Insert Finish
N
= Trimless
White
rev 042408
