RSA Lighting Combolight Galleria Series PAR20 120V Specification

DESCRIPTION

An adjustable Single-lamp Recessed fixture for trimless installation suitable for
downlighting and accent applications. Utilizes ONE (1) PAR20 120V lamp.
For new construction applications. Insulation must be kept 3" from all sides
and at least 1" above the housing.

SPECIFICATION FEATURES

A ... Housing
Housing, junction box & trimless
meshplate assembly are all steel
construction. Perforated meshplate allows
for trimless installation in drywall/plaster
ceilings by allowing the ceiling's mudding
compound to be applied right up to the
edge of the fixture opening. Includes
a beveled "knife-edge" lips to ensure a
clean edge. Can accommodate 0.50" to
1.25" ceiling thickness. Optional Chicago
Plenum configuration available.
B ... System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture. Vent
holes in housing provide cooler operation.
C ... Junction Box
Junction Box is UL listed for through
For use with PAR20 120V lamps 50W max.

ORDERING INFORMATION

C1
Configuration
C1
= COMBOLIGHT
Recessed One (1) Light
Housing
N New Construction
=
C
= Chicago Plenum
www.cooperlighting.com
branch wiring, 6 #12 90º C supply
conductors or 60º C for end of run. The
fixture is also UL listed as 'access above
ceiling not required'.
D ... Electrical
Electrical accessible through ceiling
opening. J-Box located on the side
wall of the housing behind removable
access doors. Electrical components on
individually removable "trays" for easy
maintenance.
E ... Lamps
One (1) PAR20 120V lamp mounted in
adjustable double gimbal. Lamp holder
is individually removable and may be re-
gressed 1" for additional cut-off. Lamp can
accept up to three optical accessories (i.e.
lens + hex louver + snoot). 45º x 45º locking
lamp adjustment. Beveled-edge lamp ring

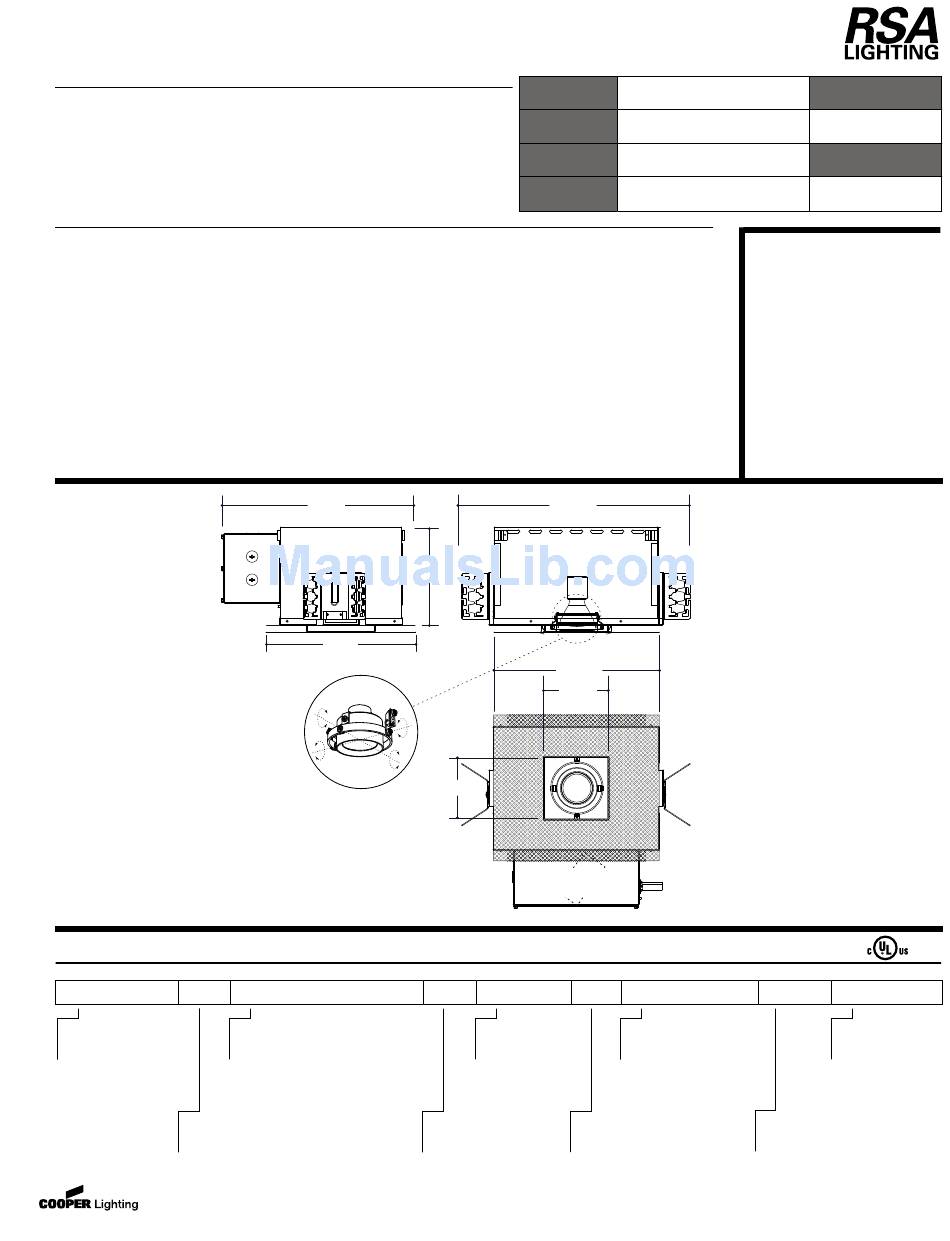

15.01"
10.96"
Double
Gimbal
45º x 45º
Adjust
Lamp Type / Wattage Label
050P20 = 50 Watt max. PAR20 120V
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Project
Comments
Prepared by
is secured with threadless, bayonet ac-
tion. Optional retractable arm is available
for lamp pulldown and extreme aiming.
Includes Med. base sockets.
F ... Mounting
Butterfly Brackets accept 1/2" EMT,
C Channel, Tbar fasteners, and bar
hangers. Four tabs on housing for
securing to structure. Perforated flaps
along housing sides for securing trimless
insert to fixture and drywall.
G ... Labels
cULus listed for non-type IC
applications, suitable for use in damp
locations.
Ceiling Cut-Out: 5.44" x 5.44"
16.14"
7.45"
12.01"
4.65"
4.65"
Integral Electronic
Metal Halide Ballast
N 120 N
Primary Voltage
1 = 120V
Power Supply
Trim Insert
N None - Line Voltage Lamp
= N = Trimless
COMBOLIGHT
Single-Lamp Fixture
Perforated
Meshplate
Thermal
Protector
Lamp Mechanism
G Double Gimbal
=
R
= Retractable Double Gimbal
Housing Interior/Electrical Door/Sleeve
Finish
W
= White
B Black
=
S = Industrial Silver
Type
Date
®
Next Generation
Recessed
One (1) Light
PAR20 120V
New Construction
Housing
Trimless
N
Trim Insert Finish
N
= Trimless
rev 022408
