RSA Lighting Combolight Galleria Series PAR38 120V Specification

DESCRIPTION
An adjustable Multi-lamp Recessed fixture with a 0.75" trim flange suitable for
downlighting and accent applications. Utilizes THREE (3) PAR38 120V lamps.
For remodel applications. Insulation must be kept 3" from all sides and at least
1" above the housing.
SPECIFICATION FEATURES
A ... Housing
Housing and junction box are aluminum,
trim assembly is steel with powder coated
finish. Fixture utilizes a removable trim
sleeve to provide a 0.75" flange around
the ceiling opening and to help conceal
the inner hardware of the fixture from sight
below the ceiling. Can accommodate
various ceiling thickness.
B ... System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture. Vent
holes in housing provide cooler operation.
C ... Junction Box
Junction Box is UL listed for through branch
wiring, 6 #12 90º C supply conductors or
60º C for end of run. The fixture is also UL
listed as 'access above ceiling not required'.
Double
Gimbal
45º x 45º
Adjust
For use with PAR38 120V lamps 100W max.
ORDERING INFORMATION
C3 R
Configuration
C3
= COMBOLIGHT
Recessed Three (3) Light
Housing
R Remodel
=
www.cooperlighting.com
D ... Electrical
Electrical accessible through ceiling
opening. J-Box located on the side
wall of the housing behind removable
access doors. Electrical components on
individually removable "trays" for easy
maintenance.
E ... Lamps
Three (3) PAR38 120V lamps mounted in
adjustable double gimbal. Lamp holders
are removable and may be regressed 1"
for additional cut-off. Lamps can accept
optical accessories. 45º x 45º locking
lamp adjustment. Beveled-edge lamp
ring is secured with threadless, bayonet
action. Optional retractable arm is avail-
able for lamp pulldown and extreme aim-
ing. Includes Med. Base sockets.

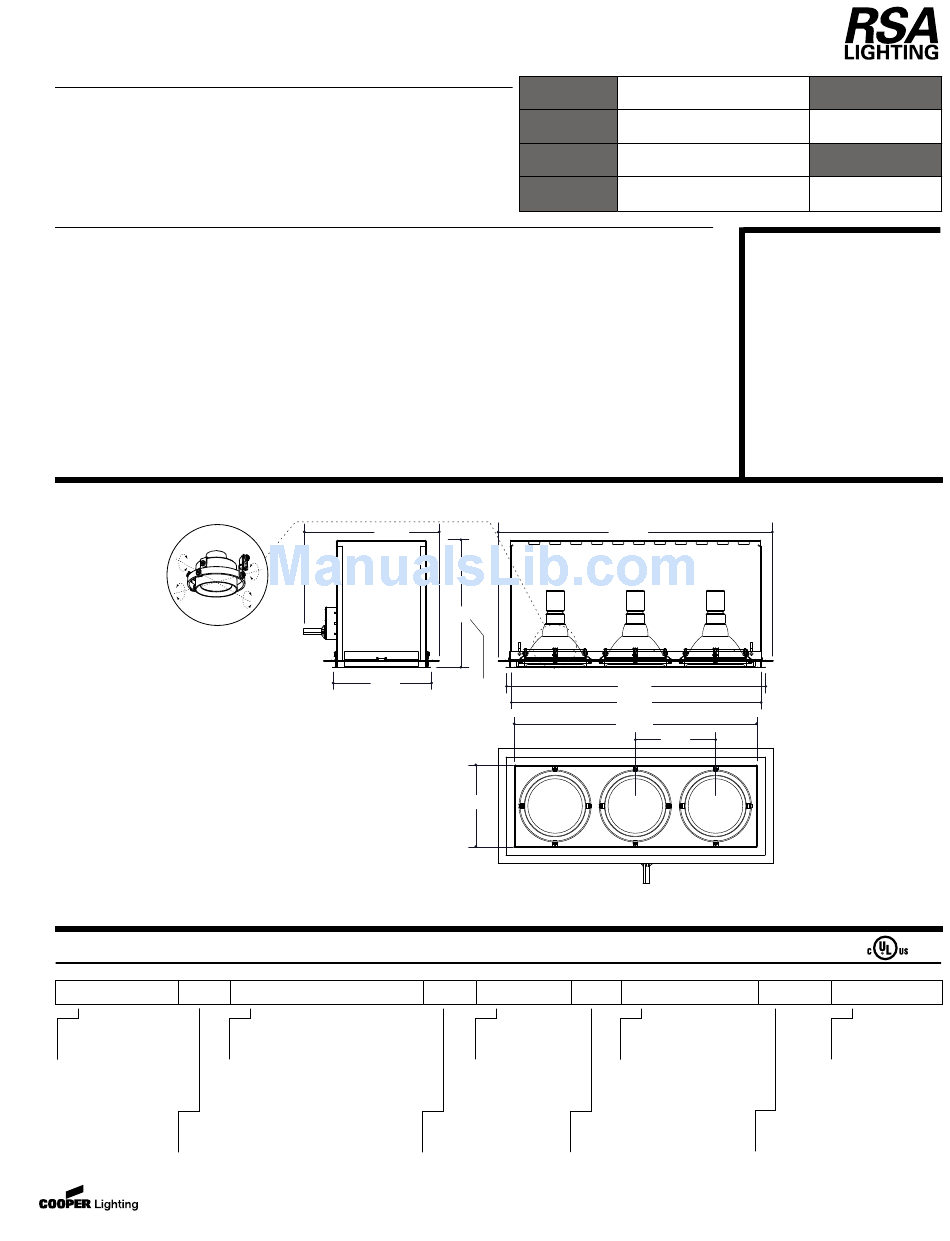

11.31"
Wiring Enclosure
8.19"
Lamp Type / Wattage Label
100P38 = 100 Watt max. PAR38 120V
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Project
Comments
Prepared by
F ... Mounting
A mounting frame is provided which
inserts into the ceiling opening. The
housing is then pushed through the
mounting frame and secured with
screws.
G ... Labels
cULus listed for non-type IC
applications, suitable for use in damp
locations.
Ceiling Cut-Out: 7.94" x 21.16"
9.95"
9.45"
Required
above
ceiling
6.69"
N 120 T
Primary Voltage
1 = 120V
Power Supply
Trim Flange
N None - Line Voltage Lamp
= T = 0.75" Trim Flange
COMBOLIGHT
Multi-Lamp Fixture
w/ 0.75" Trim Flange
22.86"
21.56"
20.89"
20.06"
6.69"
Thermal
Protector
Lamp Mechanism
G Double Gimbal
=
R
= Retractable Double Gimbal
Housing Interior/Electrical Door/Sleeve
Finish
W
= White
B Black
=
S = Industrial Silver
Type
Date
®
Next Generation
Recessed
Three (3) Light
PAR38 120V
Remodel Housing
Trim Finish
W
= White
B Black
=
S
= Industrial Silver
rev 072908
