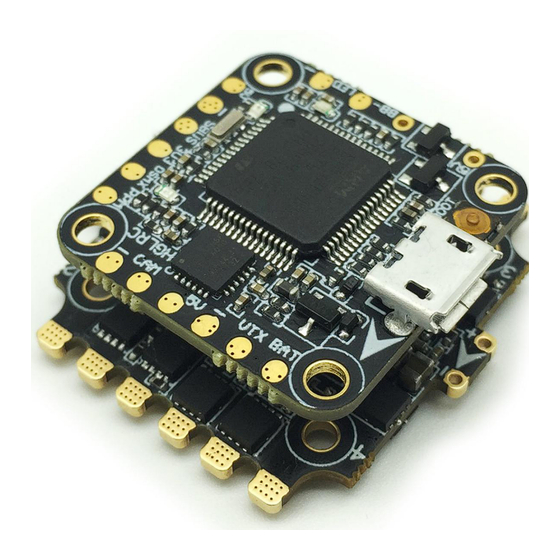

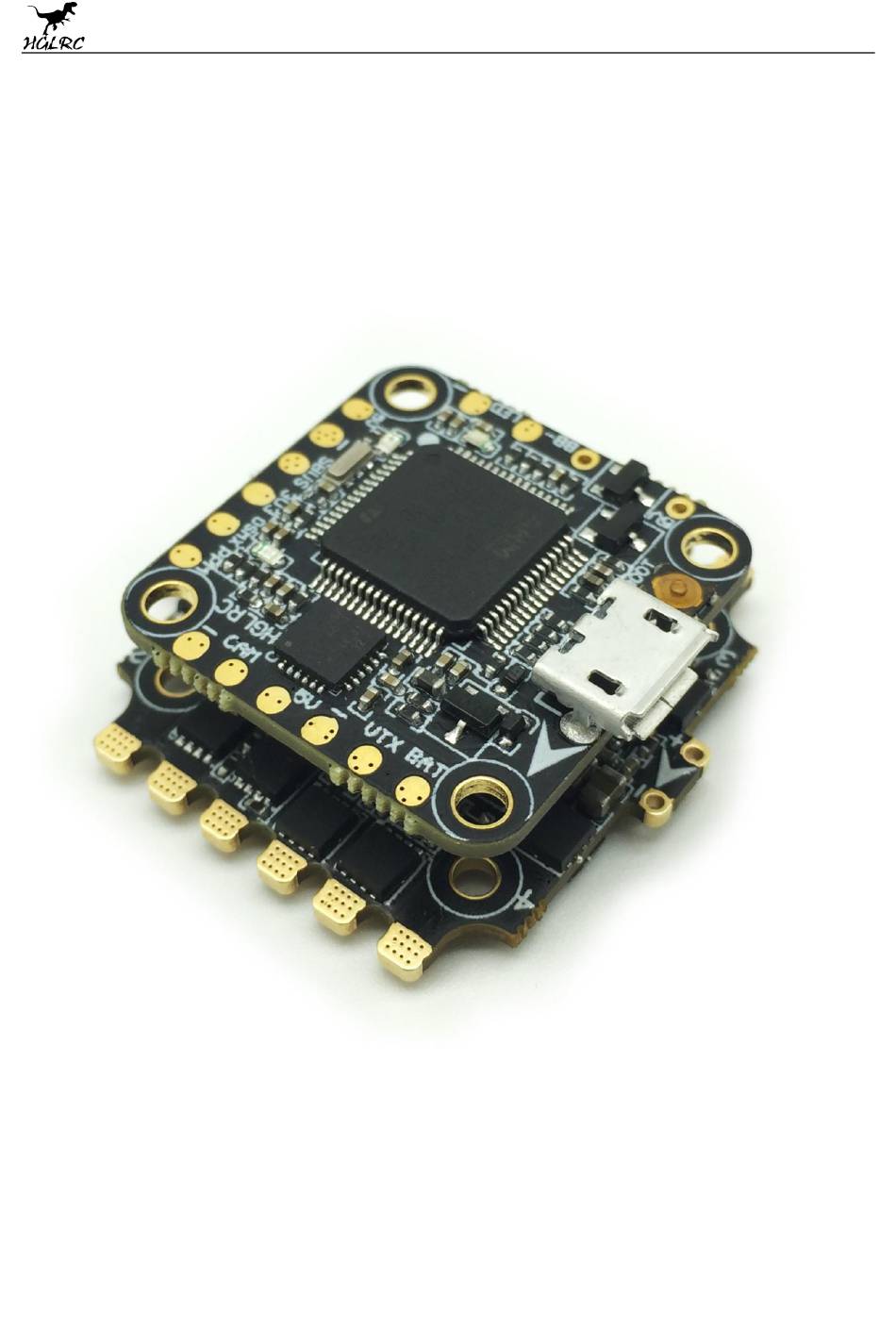

- Page 1 HGLRC F428 FC Manual www.hglrc.com...
-
Page 2: Table Of Contents
Voltage and current parameters setting....................8 Setting up the receiver..........................9 VTX serial port use. VTX uses OSD smart audio................10 GPS parameters setting...........................11 Check receiver signal..........................12 Select flight mode startup mode......................13 OSD settings..............................14 LED settings..............................15 Troubleshooting............................16 ..................Package IncIuded HGLRC F428 FC*1 Accessory Bag*1 www.hglrc.com... -
Page 3: Product Specifications
1.Product Specifications Product parameters Model HGLRC F428 Flight Control Weight 7.9g Usage for 110mm-1000mm Frame Kit MPU6000-SPI STM32F405RGT6, 8K Black Box Flash memory 16M Support receiver SBUS .PPM .DSMX Input Voltage 2-4S Lipo BEC Output 5V@3A 32*32mm board, 20mm Size mounting holes www.hglrc.com... -
Page 4: Interface Description
2.Interface Description www.hglrc.com... -
Page 5: Check The Flight Control Drive
3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode ， www.hglrc.com... - Page 6 5.Click Select firmware version 6.Click Load firmware Waiting for completion It will be prompted upon completion 7.open betaflight configurator 。Controller plugged into the computer. Betaflight Automatically assigned port，click “Connect” Enter setup interface（Different computer COM） www.hglrc.com...
-
Page 7: Calibration Accelerometer
4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again www.hglrc.com... -
Page 8: Urat Serial Port Use
5.URAT serial port use URAT1 uses the receiver UART3 can use GPS/VTX URAT6 can use ESC telemetry / GPS 6.Select aircraft model Select model Click www.hglrc.com... -
Page 9: Choose Esc/Motor Protocol
I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite “ ” 7.Choose ESC/Motor protocol 1.Choose the correct ESC / Motor protocol, optional universal protocol DSHOT600. For F428, DSHOT600 is recommended. www.hglrc.com... -
Page 10: Voltage And Current Parameters Setting
8.Voltage and current parameters setting Click Setting parameters www.hglrc.com... -
Page 11: Setting Up The Receiver
9.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART1 Open the receiver serial port “ ” 3.Set the SBUS receiver www.hglrc.com... - Page 12 4.Set the PPM receiver 5.Set the DSMX receiver 6.Turn on the receiver telemetry serial port Function on www.hglrc.com...
-
Page 13: Vtx Serial Port Use. Vtx Uses Osd Smart Audio
10.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram www.hglrc.com... - Page 14 www.hglrc.com...
- Page 15 Roll-right will enter the sub-menu. For example, in the screen to the right, moving the cursor to “Features” and then moving the roll stick to the right will enter the “Features” sub-menu. www.hglrc.com...
- Page 16 The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. www.hglrc.com...
-
Page 17: Gps Parameters Setting
11.GPS parameters setting 1. GPS connection diagram 2. Open the GPS serial port www.hglrc.com... -
Page 18: Check Receiver Signal
3.When using the GPS function, remember to configure the serial port (via the Ports tab). 12.Check receiver signal Check the remote control output signal Click www.hglrc.com... -
Page 19: Select Flight Mode Startup Mode
Click channel (below are for reference only) 14.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. www.hglrc.com... -
Page 20: Led Settings
15. LED settings Click Turn on LED support 2.Click Click set according to need www.hglrc.com... -
Page 21: Troubleshooting
2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. www.hglrc.com... - Page 22 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
