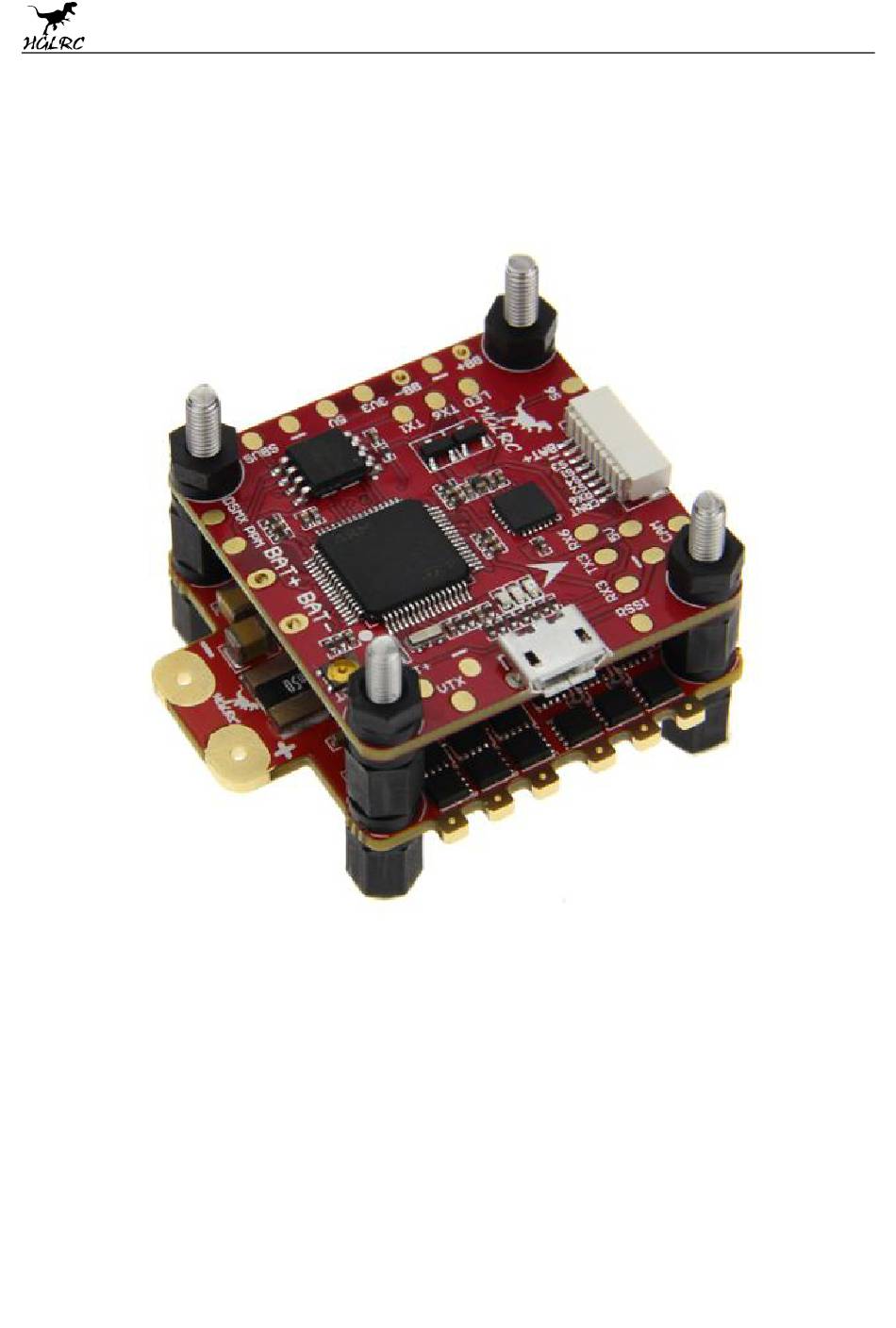

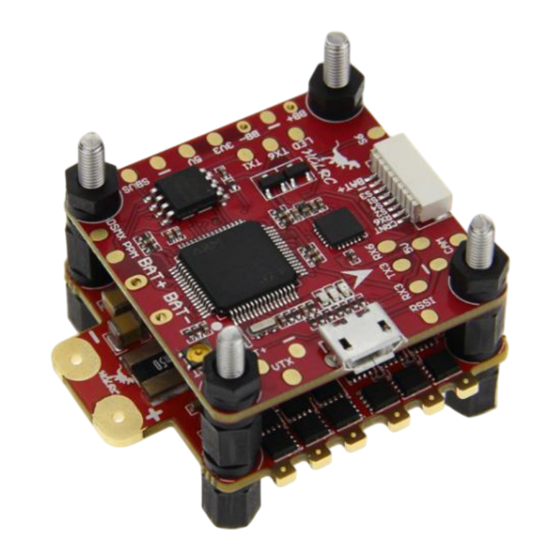

  • Page 1 HGLRC F460 FC Manual www.hglrc.com...
  • Page 2: Table Of Contents

    Voltage and current parameters setting....................9 Setting up the receiver..........................10 VTX serial port use. VTX uses OSD smart audio................11 GPS parameters setting...........................12 Check receiver signal..........................13 Select flight mode startup mode......................14 OSD settings..............................15 LED settings..............................16 Troubleshooting............................17 ..................Package IncIuded SH1.0 8PIN 60MM*1 HGLRC F460 FC*1 www.hglrc.com...
  • Page 3: Product Specifications

    1.Product Specifications Product parameters Model HGLRC F460 Flight Control Weight 21.2g Usage for 110mm-1000mm Frame Kit MPU6000-SPI STM32F405RGT6, 8K Black Box Flash memory 16M Support receiver SBUS .PPM .DSMX Input Voltage 3-6S Lipo BEC Output 5V@3A 48*40mm board, 30.5mm Size mounting holes www.hglrc.com...
  • Page 4: Interface Description

    2.Interface Description www.hglrc.com...
  • Page 5: Check The Flight Control Drive

    3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode , www.hglrc.com...
  • Page 6 5.Click Select firmware version 6.Click Load firmware Waiting for completion It will be prompted upon completion 7.open betaflight configurator 。Controller plugged into the computer. Betaflight Automatically assigned port,click “Connect” Enter setup interface(Different computer COM) www.hglrc.com...
  • Page 7: Calibration Accelerometer

    4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again www.hglrc.com...
  • Page 8: Urat Serial Port Use

    5.URAT serial port use URAT1 uses the receiver UART3 can use GPS/VTX URAT6 can use ESC telemetry / GPS 6.Select aircraft model Select model Click www.hglrc.com...
  • Page 9: Choose Esc/Motor Protocol

    1.Choose the correct ESC / Motor protocol, optional universal protocol DSHOT600. Fly Tower recommends using DSHT1200 8.Turn on ESC telemetry 1.Open ESC telemetry serial port.TX on the ESC needs to be connected to the RX6 on the flight controller to use the ESC telemetry www.hglrc.com...
  • Page 10 2.Use KISS/BLHeli_32 ESC telemetry as sensor. 3.View telemetry data on OSD www.hglrc.com...
  • Page 11: Voltage And Current Parameters Setting

    9.Voltage and current parameters setting Click Setting parameters www.hglrc.com...
  • Page 12: Setting Up The Receiver

    10. Setting up the receiver 1.Receiver connection diagram 2.Click have found UART1 Open the receiver serial port “ ” www.hglrc.com...
  • Page 13 3.Set the SBUS receiver 4.Set the PPM receiver 5.Set the DSMX receiver 6.Turn on the receiver telemetry serial port Function on www.hglrc.com...
  • Page 14: Vtx Serial Port Use. Vtx Uses Osd Smart Audio

    11.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram www.hglrc.com...
  • Page 15 www.hglrc.com...
  • Page 16 Roll-right will enter the sub-menu. For example, in the screen to the right, moving the cursor to “Features” and then moving the roll stick to the right will enter the “Features” sub-menu. www.hglrc.com...
  • Page 17 The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. www.hglrc.com...
  • Page 18: Gps Parameters Setting

    11. GPS parameters setting 1. GPS connection diagram 2. Open the GPS serial port www.hglrc.com...
  • Page 19: Check Receiver Signal

    3.When using the GPS function, remember to configure the serial port (via the Ports tab). 13.Check receiver signal Check the remote control output signal Click www.hglrc.com...
  • Page 20: Select Flight Mode Startup Mode

    Click channel (below are for reference only) 15. OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. www.hglrc.com...
  • Page 21: Led Settings

    16. LED settings Click Turn on LED support 2.Click Click set according to need www.hglrc.com...
  • Page 22: Troubleshooting

    2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. www.hglrc.com...
  • Page 23 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
