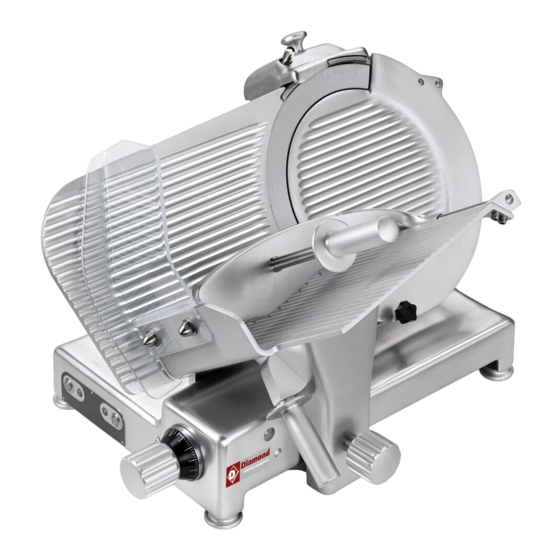

Diamond 350/MKD-C Operating And Maintenance Manual

Professional slicer ce
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
01/2019
Mod: 350/MKD-C
Production code: 15359002S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 350/MKD-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Diamond 350/MKD-C

Summary of Contents for Diamond 350/MKD-C

  • Page 1 01/2019 Mod: 350/MKD-C Production code: 15359002S...
  • Page 2 Professional slicer CE GRAVITA’ RFL 330-350-370 Operating and Maintenance Manual...
  • Page 3 INTRODUCTION  This manual has been re-presented to provide the Client with all the information on the machine and its safety regulations, and also the use and maintenance instructions which permit using the machine in the best way and maintaining its efficiency throughout time. ...

  • Page 4: Putting Out Of Service

    CHAP. 5 - MACHINE USE page 19 - OPERATIONAL CHECK - LOADING AND CUTTING THE PRODUCT - SHARPENING THE BLADE CHAP. 6 - ROUTINE CLEANING page 22 - GENERALITIES - CLEANING THE MACHINE 6.2.1 - Cleaning the goods holder plate 6.2.2 - Cleaning the blade, the blade guard and the ring 6.2.3 - Cleaning the sliceguard 6.2.4 - Cleaning the sharpener...
  • Page 5 CHAP. 1 - RECEIVING THE MACHINE 1.1 - PACKAGE The slicer is shipped in a package which consists of (Fig. n°1): cardboard box, wooden pallets and protective nylon. They should be disposed of separately and according to the norms in force in the country of installation. Dimensions Gross weight AxBxC...
  • Page 6 Do not expose the package to humidity or rain (Fig. n°4). Fig. n°4 Heavy package. Do not lift manually unless with help of at least three people (Fig. n°5). Fig. n°5 Move the package only by electrical trolleys or manually, equipped with lifting straps (Fig.

  • Page 7: Chap. 2 - Installation

    turn the package!! When transporting it make sure that it is firmly held by the four corners (keeping it parallel to the floor CHAP. 2 - INSTALLATION WARNING! All operations must be carried out by specialized personnel (Fig. n°9). Fig. n°9 2.1 - UNPACKING Remove the straps from the package (Fig.
  • Page 8 2.2 - POSITIONING Position the pallet, with the slicer, on a flat surface and take off (a) the sharpe- ner from the slicer (Fig. n°12). At this point turn the machine on its side (Fig. n°13) and unscrew, with the Fig.

  • Page 9: Electrical Connection

    2.3 - ELECTRICAL CONNECTION Check that the data reported on the technical-part number plate (Fig. n°18), the delivery documents and the order, correspond; contact the supplier for cla- rification if they do not. At this point make sure that the system is standard and that the cable and grounding system perfectly operate.
  • Page 10 the position of two of the three phase wires (black, gray or brown) in the plug. Fig. n°20 2.3.5 - Electrical connection modification Unless otherwise specified, the slicers are equipped with 400 V. three-phase connection. To modify the connection carefully follow these instructions: remove the plug from the electric network;...
  • Page 11 2.4.1 - 115 V. tension selection Fig. n°21a 2.4.2 - Single-phase 230 V. tension selection OUTPUT DIAGRAM Fig. n°21b 2.4.3 - Three-phase 230 V. tension selection Fig. n°21c 2.4.4 - Three-phase 400 V. tension selection Fig. n°21d...

  • Page 12: Preliminary Check

    2.5 - PRELIMINARY CHECK Before testing make sure the goods holder plate is well-blocked, after which test functioning with the following procedure: P u s h - b u t t o n Push the “ON” push-button and the “OFF” “OFF”...
  • Page 13  The slicer must only be used by trained personnel who know the safety norms contained in this manual perfectly.  In the case of an alteration in personnel, give time for training.  Do not allow the slicer to be used by Fig.

  • Page 14: Construction Features

     Do not pull the slicer or the feeding cable (Fig. n°29) to unplug it.  Regularly check the state of the fee- ding cable; a worn out cable or in any case not intact represents a serious electrical danger. ...
  • Page 15 LEGEND: Sharpener knob Blade cover knob Sharpener Base Thickness gauge plate Bladeguard Handguard Product grip Push-button panel Blade protection ring Foot Product grip knob Graduated handgrip Locking blade cover knob Stem handgrip Slice deflector knob Stem Slice guard Stem knob Support cover knob Product plate Thickness plate support cover...

  • Page 16: Safety Devices Installed On The Machine

    4.2 - SAFETY DEVICES INSTALLED ON THE MACHINE 4.2.1 - Mechanical safety As far as mechanical safety is concerned, the slicer described in this manual responds to: CEE 2006/42 machine directives. Safety is made possible by the: (Fig. n°31 ) - Thickness gauge plane (ref.

  • Page 17: Description Of The Machine

    Even though the professional CE slicers are equipped with the standard mea- sures for electrical and mechanical protection (both while operating and during cleaning and maintenance), RESIDUAL RISKS which cannot be completely eli- minated in any case exist, highlighted in this manual under the form of WAR- NING.
  • Page 18 Fig. n°33 TAB. n°1 - DIMENSION MEASUREMENTS AND TECHNICAL FEATURES Model U.m. mod. 330 - 350 - 370 Blade diameter Motor Watt/Hp 275/0,37 370/0,50 370/0,50 Cut thickness Run of carriage Hopper 330X307 330X307 330X307 A x B 513X340 513X340 513X340 C x D x E 690x560x475 715x570x480...

  • Page 19: Operational Check

    CHAP. 5 - MACHINE USE 5.1 - OPERATIONAL CHECK For the 1° use follow these instructions: check that installation has been car- ried out correctly as in chapter 2; check that the plate is well fastened with the lock handgrip (Fig. n°34 ref.1);...

  • Page 20: Loading And Cutting The Product

    5.2 - LOADING AND CUTTING THE PRODUCT WARNING: The goods to be cut are loaded on the plate only with the graduated handgrip at “0” and the motor stopped, being careful with the blade and the points. Adhere to the following procedure: 1.
  • Page 21 5.3 - SHARPENING THE BLADE WARNING: Before starting to sharpen the blade, pay attention to RESI- DUAL RISKS (chapter 4.2.2) concerning the dangers of cutting without ha- ving followed the instructions listed below. To sharpen the blade, which needs to be done periodically as soon a decrease in cutting is noticed, the following directions must be adhered to: 1.
  • Page 22 7. press the 2 push-buttons (2 and 3) contemporaneously for 1/2 sec. and release them in the same instant (Fig. n°45); 8. after having completed the sharpe- ning it is advisable to clean the grin- ders and the blade (chapter 6.2.3); 9.
  • Page 23 6.2 - CLEANING THE MACHINE 6.2.1 - Cleaning the product plate The trolley (plate + arm + stem) is easily transportable: bring the graduated handgrip to “0” (1 Fig. n°45); bring the trolley (2) to the end of its run (a) from the controls side; partially unscrew the plate lock handgrip (3), pull the trolley towards the operator;...
  • Page 24 6.2.2 - Cleaning the blade, the blade guard and the ring WARNING: a pair of metallic gloves must be worn while cleaning the blade (1) (Fig. n°47) and a damp cloth must be used. Rotate the locking blade cover knob (3) and unscrew the blade cover knob (4), and then pull the blade cover (2) out Fig.
  • Page 25 6.2.3 - Cleaning the sliceguard (Fig. n°50) To remove the sliceguard simply grasp the handgrip (1) and pull up so that the two pins unhook (2), and then extract the sliceguard. At this point clean the sliceguard with warm water, the equipped detergent or with neutral detergent (pH 7).

  • Page 26: Chap. 7 - Maintenance

    CHAP. 7 - MAINTENANCE 7.1 - GENERALITIES Before carrying out any maintenance operations it is necessary to: a) disconnect the feed plug from the electrical network to completely isolate machine from the rest of the system. b) bring the graduated handgrip which regulates the thickness gauge to “0”. 7.2 - BELT The belt does not need to regulated.

  • Page 27: Chap. 8 - Dismantling

    CHAP. 8 - DISMANTLING 8.1 - OUT OF SERVICE If for some reason it is decided to put the machine out of service, make sure that it cannot be used by anyone: detach or cut the electrical connections. 8.2 - WEEE Waste of Electric and Electronic Equipment Directive 2002/95/EC, 2002/96/EC and 2003/108/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment, and waste electrical and electronic equipment.

This manual is also suitable for:

Gravita rfl 330Gravita rfl350Gravita rfl 370
