STORM

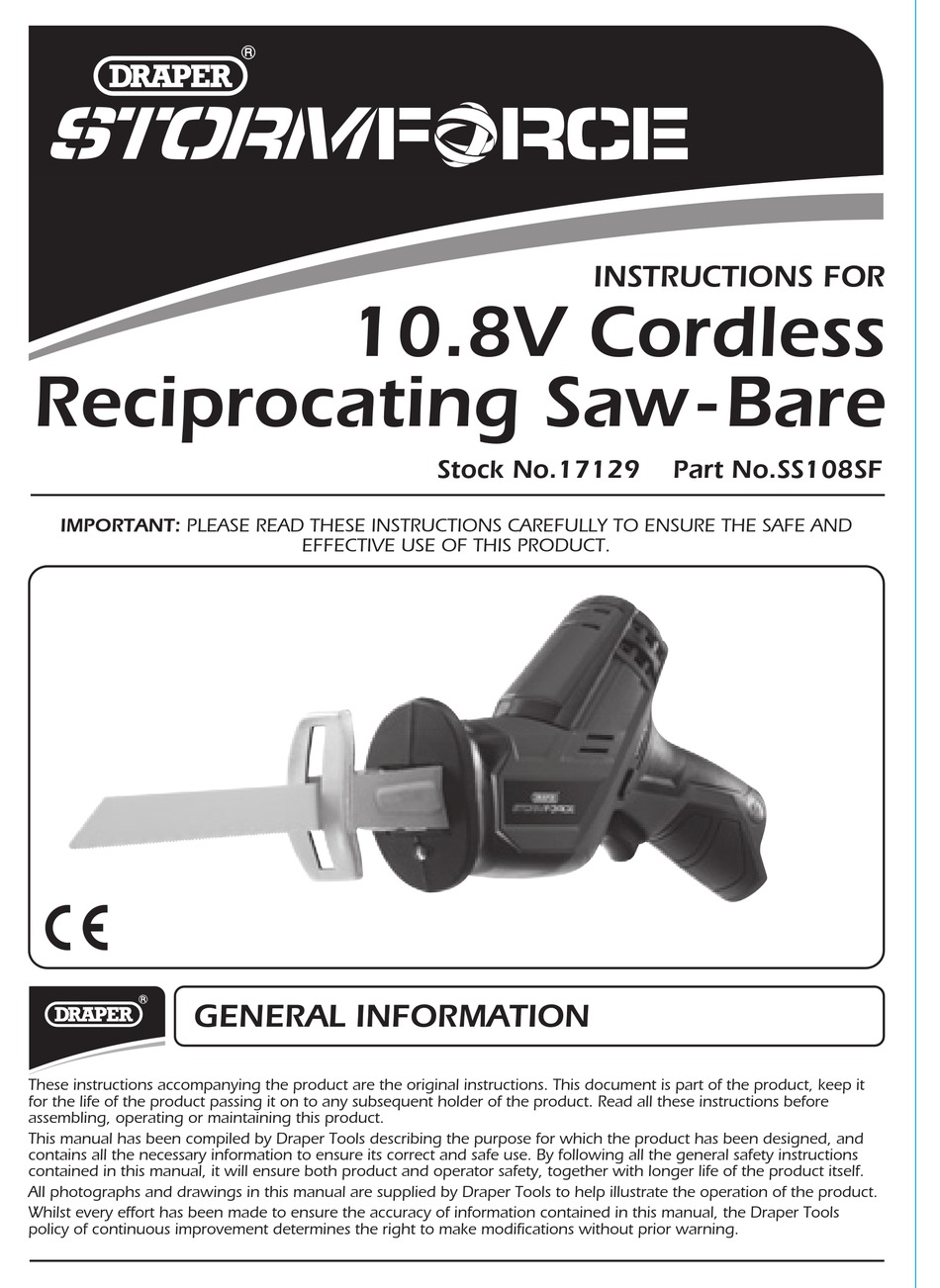

INSTRUCTIONS FOR
10.8V Cordless
Reciprocating Saw - Bare
Stock No.17129
Part No.SS108SF
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Related Manuals for Draper 10.8V
Summary of Contents for Draper 10.8V
-
Page 1: General Information
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product. -
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
This reciprocating saw is designed to cut wood, plastic and metal, including sheet materials, branches/logs and window surrounds. It is intended for domestic and light commercial use only. Any other application is considered misuse. This product requires a Draper Power Interchange 10.8V battery (sold separately) to operate. -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS Do not overreach. Keep proper footing and balance at all times. This enables better control of General Power Tools Safety Warnings the power tool in unexpected situations. Dress properly. Do not wear loose clothing or WARNING: Read all instructions. -
Page 7: General Instructions For Battery Powered Tools & Chargers
HEALTH & SAFETY INFORMATION 5.2 GENERAL INSTRUCTIONS FOR Check that cutting tools are undamaged and are kept clean and sharp, this will maintain their operating BATTERY POWERED TOOLS & performance and lessen the loading on the tool. CHARGERS 5.3 SAFETY INSTRUCTIONS FOR MAINS POWERED BATTERY Good Working Practices/Safety The following suggestions will enable you to observe... -
Page 8: Instructions For Chargers And Batteries
NOTE: This information relates to the battery charging system for the Draper 10.8V cordless range. This product is supplied “bare” which means that it does not have a battery or charger supplied. -
Page 9: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Foot Trigger switch Quick blade release clamp Secondary hand grip Battery charge indicator LED work light Hand grip... -
Page 10: Unpacking & Checking
Lay the contents out and check them against the parts shown on page 9. If any part is damaged or missing; please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the saw. -
Page 11: Setting The Cordless Reciprocating Saw
SETTING THE CORDLESS RECIPROCATING SAW 8.1 BLADE INSTALLATION - FIGS. 1 - 2 FIG.1 Turn and hold the spring-loaded blade release clamp counter-clockwise. Insert the blade into the slot of blade clamp Release the blade clamp to lock the blade. Check that the blade is secure before operating the saw. -
Page 12: Basic Reciprocating Saw Operation
BASIC RECIPROCATING SAW OPERATION 9.1 SWITCH AND VARIABLE STROKE FIG.5 RATE CONTROL - FIG. 5 Your reciprocating saw is equipped with a trigger switch to turn the saw on and off, and to control the speed. To start the saw, press the trigger switch To stop the saw, release the trigger switch. -
Page 13: Plunge Cutting
BASIC RECIPROCATING SAW OPERATION 9.3 PLUNGE CUTTING - FIGS. 6 - 7 FIG.6 WARNING: Plunge cutting is only suitable when working softer materials such as wood or plaster board! However, this requires a degree of practice and is only possible with short saw blades. Place the tool via the pivoting footplate onto the work piece and switch on. -
Page 14: Optional Accessories
10. OPTIONAL ACCESSORIES 10.1 OPTIONAL ACCESSORIES Stock No. Part No. Description Quantity 16254 CB108LI 10.8V Battery 16255 C108LI 10.8V Charger 02313 RSB/MP 150mm Multi purpose cutting blade 5 piece 02314 RSB/MP 200mm Multi purpose cutting blade 5 piece 02315 RSB/MP... -
Page 15: Maintenance
11. MAINTENANCE 11.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets. If necessary, disconnect the battery from the saw and vacuum the ventilation slots. -
Page 16: Troubleshooting
12. TROUBLESHOOTING WARNING: For your own safety always remove the battery before carrying out any maintenance or troubleshooting. PROBLEMS POSSIBLE CAUSES REMEDY Saw does not 1. Flat battery 1. Charge battery work Saw does not 1. Check blade clamp 1. Remove blade, fully open grip clamp and re-insert blade. -
Page 17: Explanation Of Symbols
13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Class II construction (Double insulated). WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish For indoor use only. Do not expose to rain. Li-ion battery must be recycled or disposed of properly. Li-ion Fuse protective device. -
Page 18: Disposal
14. DISPOSAL 14.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 19 NOTES...
- Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Help Line for details of an agent in your local area. YOUR DRAPER STOCKIST RDCH0816...
