Chamberlain K1A6636 Quick Start Manual

WARNING
The receiver module can be used as a replacement or to change
CAUTION
to a different frequency.
NOTE: Verify frequency marked on the receiver module matches
the frequency of your remote control.

REMOVE RECEIVER MODULE

1. Disconnect power to control box.
2. Open the cover to the control box.
3. Disconnect the batteries and then the 24 Vac or solar input
at the board.
4. Remove the receiver module by gently deflecting the
latching connector on one side and remove the module.

INSTALL RECEIVER MODULE

1. Remove the new receiver module from the protective bag.
AVERTISSEMENT
2. Install the new receiver module onto the control board
making sure to properly align all the pins and seat the
module until the latching connector snaps into place.
ATTENTION
3. Make sure the control box is clear of all debris and tools.
4. Restore power.

COMPLETE THE INSTALLATION

NOTE: Programmed remote controls will not be affected if the
receiver module is exchanged for one at the same frequency.
However, if the frequency has changed, then all remote controls
at the old frequency must be erased and all remote controls at
the new frequency must be programmed. In addition, the new
antenna only needs to be installed if the frequency has changed.
1. Reprogram any remote controls as necessary.
2. Replace the existing antenna with the new antenna if
necessary (if the system changed frequencies).
3. Make sure that the rubber seal around the cover is intact
and close the cover.
ADVERTENCIA
PRECAUCIÓN
WARNING
WARNING WARNING
To avoid SERIOUS PERSONAL INJURY or DEATH from
electrocution, disconnect ALL electric and battery power
BEFORE performing ANY service or maintenance.
NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of
this receiver and/or remote are prohibited, except for changing the code setting or replacing the
battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
AVERTISSEMENT
AVERTISSEMENT
ADVERTENCIA
ADVERTENCIA

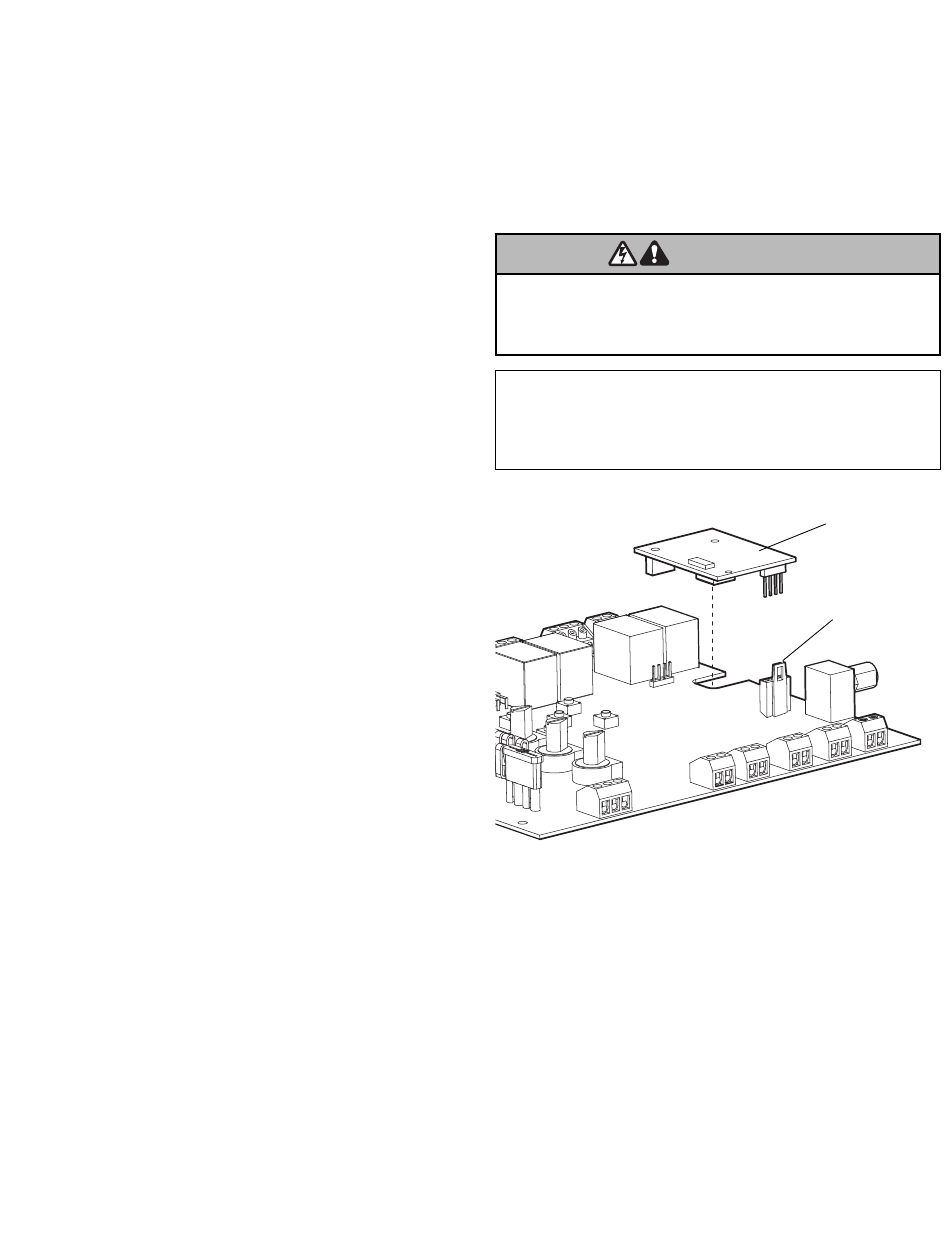

Receiver Module
K1A6636 (315MHZ)
K1A6636-1 (390MHZ)
K1A5747 (315MHZ)
K1A5747-2 (390MHZ)
Receiver Module
Latching Connector
