Summary of Contents for Logik L33DAB10

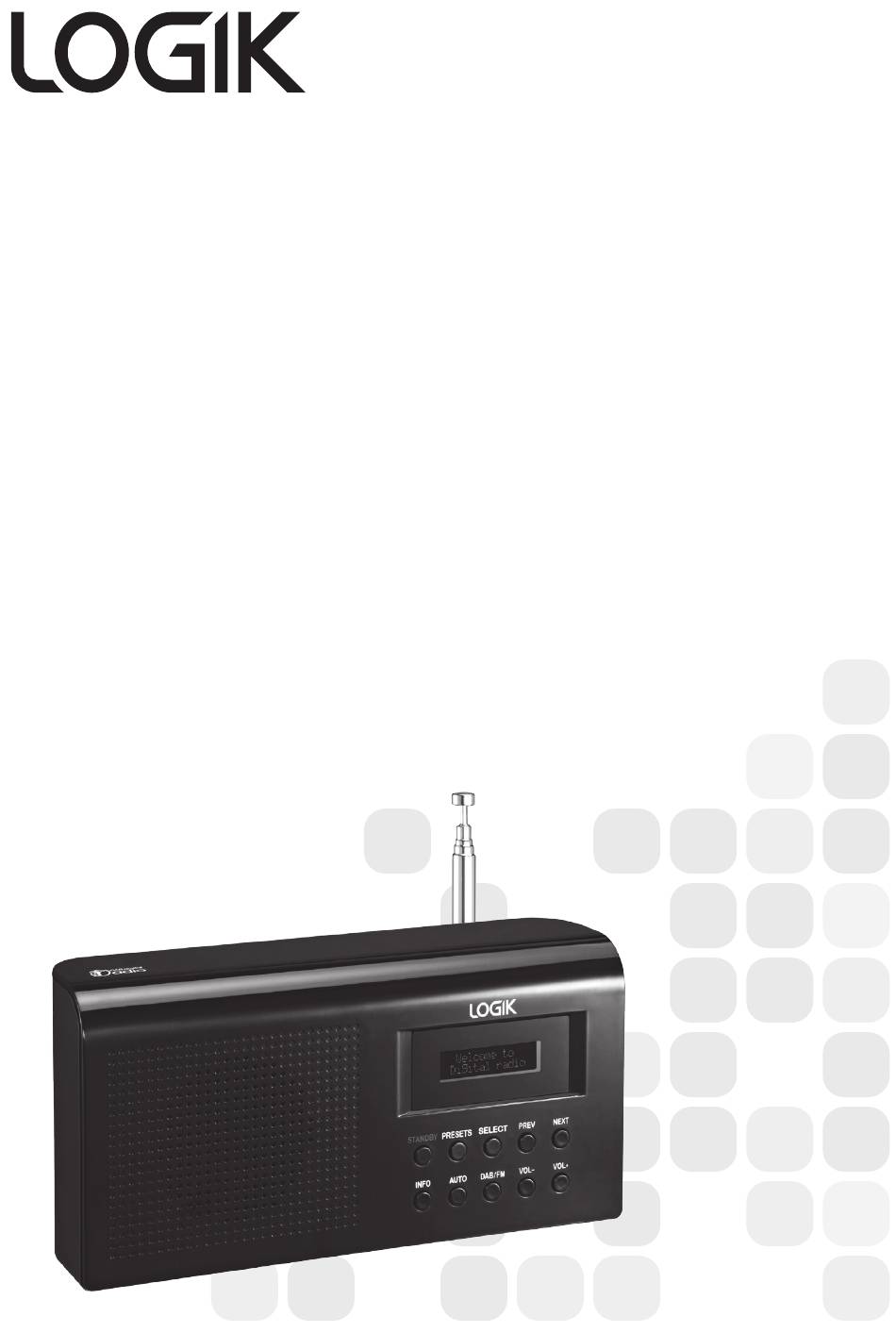

- Page 1 DAB Clock Radio Instruction Manual L33DAB10...
-
Page 2: Table Of Contents
Contents Unpacking ..........................3 Product Overview .........................4 Power Source ........................5 Mains Power ..............................5 Battery Power ..............................5 Switching on Your Unit for the First Time ................5 Basic Operation ........................6 Powering ON/OFF ............................6 Selecting Modes ............................6 Adjusting Volume ............................6 DAB Operation ........................7 Memory................................7 Storing Stations.............................7 Recalling a Stored Station .........................7 Display Modes ...............................8... -
Page 3: Unpacking
Congratulations on the purchase of your new Logik DAB Clock Radio. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 4: Product Overview
Product Overview Front View STANDBY PRESETS SELECT PREV NEXT INFO AUTO DAB/FM VOL- VOL+ INFO Button LCD Display Window STANDBY Button AUTO Button PRESETS Button DAB/FM Button SELECT Button VOL– Button PREV Button VOL+ Button NEXT Button Rear View DC IN Telescopic Aerial ON/OFF Switch Earphones... -
Page 5: Power Source
Power Source Mains Power Connect the mains adapter (included) to the DC 6V IN socket and the mains socket. DC IN Battery Power Insert 4 AA batteries (not included) correctly by following the polarity (+ or –) indications in the DC IN battery compartment. -
Page 6: Basic Operation
Basic Operation Powering ON/OFF When you first connect the unit to the mains socket and switch the ON/OFF switch at the back of the unit to “ON” position to switch the unit on. • Press the STANDBY button to switch the unit back to Standby mode. • Switch the ON/OFF switch to the “OFF”... -
Page 7: Dab Operation
DAB Operation To listen to the tuned stations press either the PREV / NEXT buttons. Each time you press the PREV / NEXT buttons, you will skip to the previous or next stored station. The unit will display the station name. Memory When you power up the unit again, the unit plays the same mode and station (DAB or FM) as the last operation. -
Page 8: Display Modes
Display Modes Every time you press the INFO button, the display will cycle through the following display modes: Programme Type, Multiple Name, Signal Strength, Time/Date, DLS (Scrolling Text). The information is displayed on the lower segment of the LCD display. Programme Type Programme Type This describes the “Style”... -
Page 9: Software Version
Software Version Press and hold the INFO button for 2 seconds and then release it to view the software version of this unit. The software version will automatically disappear after 5 seconds. Auto Scan Modes There are two types of scans, one is Quick scan and the other is Full scan. • Quick scan: Searches the stations between channels 10A and 12D. -
Page 10: System Reset
System Reset There may be times when you need to reset your unit back to the factory settings. If you experience reception problems you may want to reset and try again. If you move the unit to another part of the country and pick up the local and national DAB stations in that area, your previously tuned channels may no longer be available. -
Page 11: Fm Operation
FM Operation Switching from DAB to FM Mode In order to switch the unit from DAB to FM mode, press the DAB/FM button once. The display shows “Switching to FM”. On the top line of the display is the current frequency. On the bottom of the display, <Programme Type>... -
Page 12: Display Modes
Display Modes Every time you press the INFO button, the display will cycle through the following display modes: Programme Type, Signal Strength, Time/Date, Channel Frequency, Audio Mode, Radio Text. Programme Type Programme Type This describes the “Style” or “genre” of music that is being broadcast e.g. -
Page 13: Software Version
Software Version Press and hold the INFO button for 2 seconds and then release it to view the software version of this unit. Press the INFO button again to display the Program Identification code (PI code). The software version will automatically disappear after 5 seconds. System Reset There may be times when you need to reset your unit back to the factory settings. -
Page 14: Maintenance
Maintenance Ensure to unplug the unit from the mains socket before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. • Do not spray an aerosol at or near the unit. Hints and Tips Problem Cause / Solution... -
Page 15: Safety Warnings
Safety Warnings Safety Always disconnect the unit from the mains supply before connecting/disconnecting Retain the manual. If you pass the unit onto a other devices or moving the unit. third party make sure to include this manual. Unplug the unit from the mains socket during Check that the voltage marked on the rating a lightning storm. - Page 16 EU. For more information, please contact the local authority or your retailer where you purchased the product. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead • Herts • HP2 7TG • England (P.N.: L33DAB10-001)
