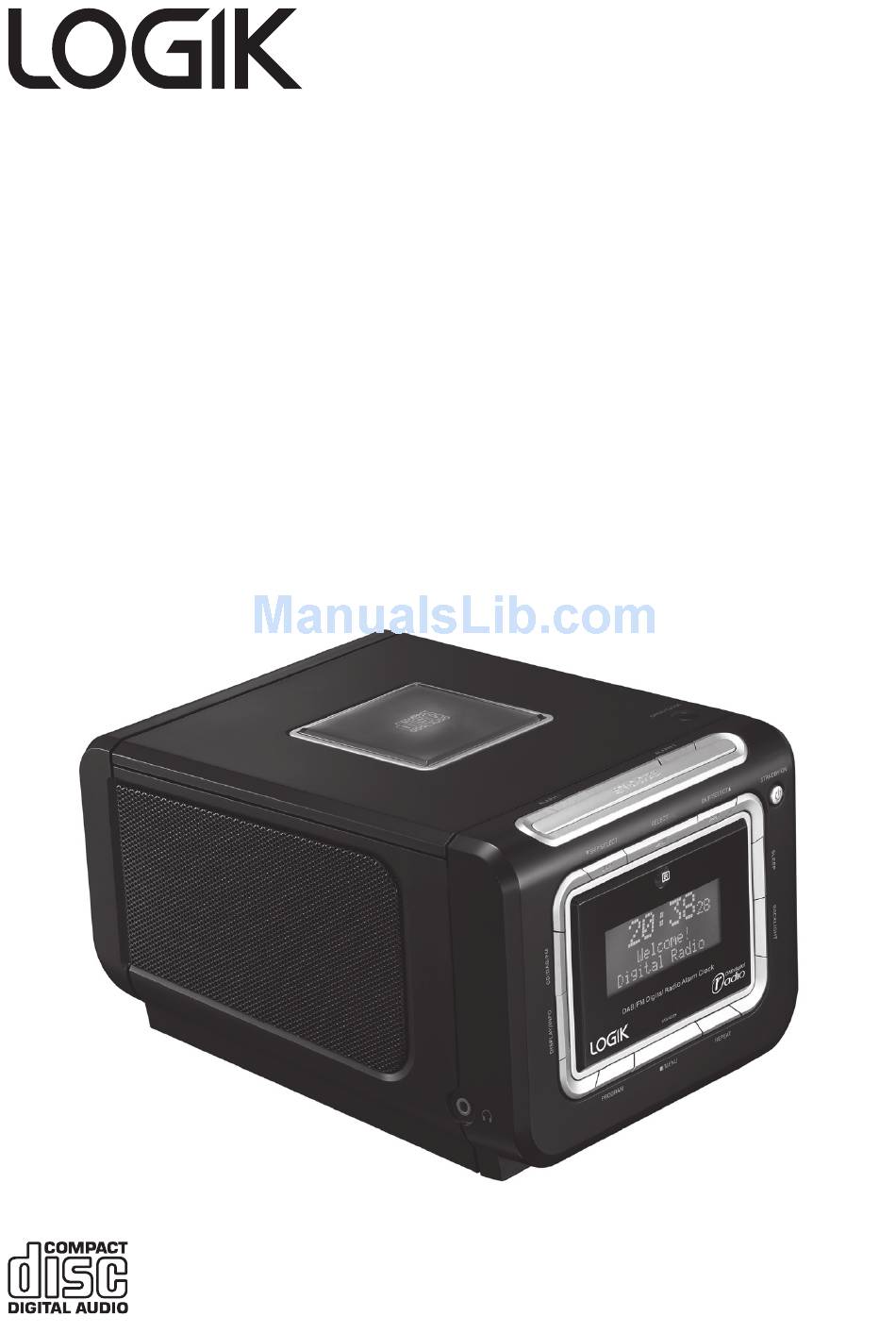

- Page 1 CD Radio Clock with DAB Instruction Manual LCDCRDB10...
-
Page 2: Table Of Contents
Contents Unpacking ..........................4 Product Overview .........................5 Front View ...............................5 Side View .................................5 Top View ................................6 Rear View .................................6 Remote Control .............................7 Battery Installation for the Remote Control..................7 Remote Control Operation Range......................8 Connections ..........................9 Connecting to the Mains Socket ......................9 Using Earphones............................9 Basic Operation ........................10 Powering ON/OFF ............................. - Page 3 Switching from DAB to FM Mode ......................16 Auto Scan ..............................16 Manual Scan ..............................16 Audio Mode ..............................16 Storing Stations............................16 Recalling a Stored Station ........................17 Display Modes ............................17 Compatible Disc Types .......................18 Playing a CD ........................18 Selecting a Different Track ........................
-
Page 4: Unpacking
Congratulations on the purchase of your new Logik CD Radio Clock with DAB We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 5: Product Overview
Product Overview Front View SKIP/SELECT SELECT SKIP/SELECT STANDBY/ON DAB/FM Digital Radio Alarm Clock STANDBY PROGRAM /MENU REPEAT SKIP/SELECT STANDBY/ON Button Button SELECT 10. JOG MODE Button Button SKIP/SELECT 11. SLEEP Button Button 12. BACKLIGHT Button IR Sensor CD/DAB/FM Button VOL/SKIP/SELECT Control 14. -
Page 6: Top View
Top View OPEN/CLOSE ALARM 1 ALARM 2 SNOOZE ALARM 2 Button CD Door OPEN/CLOSE SNOOZE Button Button ALARM 1 Button Rear View Mains Cable DAB/FM Aerial GB-6... -
Page 7: Remote Control
Remote Control STANDBY/ON Button STANDBY MUTE MUTE Button CD/DAB/FM Button CD/DAB/FM SLEEP DISPLAY/INFO SLEEP Button DISPLAY/INFO Button SNOOZE Button SNOOZE PROGRAM Button MENU Button PROGRAM MENU SELECT SELECT Button 10. REPEAT Button REPEAT SKIP/SELECT SKIP/SELECT Button SKIP/SELECT Button RANDOM ALARM 1 ALARM 2 13. -
Page 8: Remote Control Operation Range
Handling the Batteries • Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property. • Only use the battery type indicated in this manual. • When the battery is exhausted, the remote control will not function. Replace the battery at the same time with new ones. -
Page 9: Connections
Connections Connecting to the Mains Socket Connect the mains cable at the rear of the main unit to the mains socket. To the Mains Socket Using Earphones Connect earphones (Ø3.5mm stereo mini plug) to the earphone socket. Adjust the volume control to obtain the desired volume level. -
Page 10: Basic Operation
Basic Operation Powering ON/OFF When you first connect the unit to the mains socket. The unit will be in STANDBY mode. • Press the STANDBY/ON button to switch the unit on. • Press the STANDBY/ON button again to switch the unit off. • Disconnect the mains cable from the mains socket if you want to switch the unit off completely. -
Page 11: Activating The Alarm Function And Selecting The Wake-Up Mode
The minute digits will flash. Turn the VOL/SKIP/SELECT control on the unit or press the SKIP/SELECT buttons on the remote control to adjust the minute digits, and then press the SELECT button to confirm. The wake-up mode settings will flash on the display. Adjust BEEP TONES / DAB &... -
Page 12: Sleep Function
Sleep Function This function allows you to program the unit to switch off by itself after a set period of time. To activate the sleep function, press the SLEEP button repeatedly. The time will change in the below sequence on every press: Stop pressing the button when the display shows your desired length of time. -
Page 13: Dab Operation
DAB Operation If the unit is connected to the mains power and then switched on from standby for the first time, the unit will automatically enter into DAB mode and perform the auto scan function. During the scan the LCD display will show “Scanning …” together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far. -
Page 14: Secondary Services
Secondary Services You may see a “ ” symbol after the name of the station during tuning (press the JOG MODE button, then turning the VOL/SKIP/SELECT control on the unit), this indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station. -
Page 15: Dab Display Modes
DAB Display Modes Every time you press the DISPLAY/INFO button, the display will cycle through the following display modes: Time/Date, Frequency, Audio Bit Rate, Signal Strength, DLS, Programme Type, Ensemble/Multiplex (Group name). The information is displayed on the lower segment of the LCD display. Time/Date Time/Date The broadcaster (Radio station) provides clock... -
Page 16: Fm Operation
FM Operation Switching from DAB to FM Mode To switch the unit to FM mode, press the CD/DAB/FM button repeatedly to select FM. The LCD display will show “switch to FM”, and show the frequency. Auto Scan To search for an FM station, press and hold the SKIP/SELECT button on the remote SKIP/SELECT button on control to start the forward auto scanning. -
Page 17: Recalling A Stored Station
Recalling a Stored Station Once you have saved a station, you can recall it by pressing the PRESET buttons. Press the PRESET buttons to select your desired preset station number. If you choose a preset that hasn’t been allocated a station, the “Preset empty”... -
Page 18: Compatible Disc Types
Compatible Disc Types Disc Types Disc Logo Recorded Content CD-R (CD Recordable) AUDIO CD-RW (CD-Rewritable) AUDIO AUDIO-CD (Compact Disc Digital Audio) AUDIO Some recorded files may not be able to be played due to the type and format of disc or condition of the recording. Playing a CD Press the CD/DAB/FM button repeatedly to select CD mode Open the CD door, and insert a CD with the printed side facing... -
Page 19: Programming Track Numbers
Programming Track Numbers You may store up to 20 tracks in the desired sequence. Be sure to press the STOP button before use to ensure no prior program has been set. In stop mode, press the PROGRAM button to activate programming. -
Page 20: Repeat Mode
Repeat Mode You can play the current track or the whole disc repeatedly with REPEAT mode. • During playback, press the REPEAT button once to repeat a single track. The “ “ REP 1 indicator will illuminate. • Press the REPEAT button twice to repeat the whole disc. The “ “... -
Page 21: Maintenance
Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. -
Page 22: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Problem Cause / Solution The unit does not power on • Make sure the mains plug is secure in the outlet, and the outlet has power. -
Page 23: Specifications
Specifications Model LCDCRDB10 Power Supply 100V-240V ~60/50Hz Output Power 1.2 Watts x 2 Unit Dimension 155 (W) x 202 (D) x 120 (H) mm N.W.: 1.25 kg Radio Section FM 87.5 – 108 MHz Frequency Range DAB 174 – 240 MHz... -
Page 24: Safety Warnings
Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not onto a third party make sure to include this obstruct the ventilation vents. - Page 25 Batteries CAUTION • Batteries used in the remote control for this RISK OF ELECTRIC SHOCK unit are easily swallowed by young children DO NOT OPEN and this is dangerous. The lightning flash with arrowhead • Keep loose batteries away from young children and make sure that the battery symbol, within an equilateral triangle, is intended to alert the...
- Page 28 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control 070-3232DN-01B0 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
