Multi-application - LiFePO4 Power
UE-48Li100BL
Issued Date
Issued Version
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack
MASTER BATTERY, S.L., describes the type, performance, technical characteristics, warning and caution of the
battery pack. The battery pack support Bluetooth communication function. Through Android and IOS APP, can
read the battery status and information. Especially due to the Android system's openness, different smart phone
manufacturer will have their own different Bluetooth hardware version and customized feature Android systems.
So the APP may not work well on some smart phones (with Android system) due to compatible issue.
It is necessary for the customer to confirm whether the phone is compatible for the APP.
2. Specification (@Battery initial Temp25±5°C)
NO.
Items
Rated Capacity
1
Minimum Capacity
2
Energy
3
Nominal Voltage
4
Outgoing Voltage
5
Internal resistance
6
Limited charge voltage
7
Floating charge voltage
8
Standard charge current
9
Maximum charge current
10
Standard discharge current
11
Maximum discharge current
12
Pulse discharge current
>
2016-08-15
>
V01

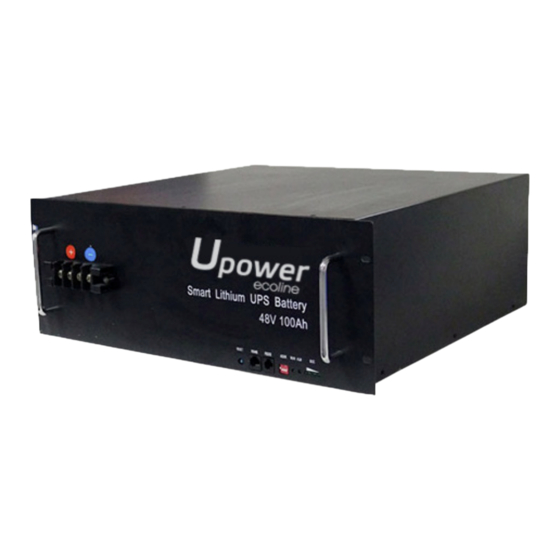

LITHIUM IRON PHOSPHATE BATTERY
UE-48Li100BL
Criteria
100Ah
100Ah
5.12KWh
51.2V
≥51.2V
≤40mΩ
58.4±0.2V
55.2±0.2V
45A
50A
45A
50A
150A / Continuous for 3 s
01
Advertisement
Related Manuals for UPOWER Ecoline UE-48Li100BL
Summary of Contents for UPOWER Ecoline UE-48Li100BL
- Page 1 LITHIUM IRON PHOSPHATE BATTERY Multi-application - LiFePO4 Power UE-48Li100BL Issued Date > 2016-08-15 Issued Version > 1. General Information This specification defines the performance of rechargeable LiFePO4 battery pack UE-48Li100BL MASTER BATTERY, S.L., describes the type, performance, technical characteristics, warning and caution of the battery pack.
-
Page 2: Test Condition
UE-48Li100BL Items Criteria Discharge cut-off voltage 36.8V Length: 482.0±3mm Dimension Width: 220.5±3mm Height: <= 520mm ±3mm Weight Approx: 57.5Kg Charging: 0~45°C Operating Temperature Discharging: -20~60°C Recommended operating temperature: 15°C~35°C Residual capacity: ≤3%/month; ≤15%/years Self-discharge rate Reversible capacity: ≤1.5%/month; ≤8%/years Less than 1 month: -20°C~35°C，45% RH~75％ RH Less than 3 months: -10°C~35°C，45% RH~75％ RH Storage Temperature &... - Page 3 UE-48Li100BL 4. Product Performance Items Criteria Testing Method Rated Capacity 100Ah Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 120...
- Page 4 UE-48Li100BL www.masterbattery.es Items Content Specification Over-charge protection for each cell 3.85±0.03V Over charge Over-charge release for each cell 3.65±0.05V Over-charge release method Under the release voltage Over-discharge protection for each cell 2.30±0.05V Over discharge Over-discharge release for each cell 2.50±0.05V...
- Page 5 UE-48Li100BL 7. Transportation • Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery. • Battery should be stayed in the warehouse 15ºC 〜 35ºC where it’s dry, clean, shade and well-ventilated.
- Page 6 UE-48Li100BL 9. Battery Operation Instruction 9.1 Charge and discharge 9.1.1 Charging current: Do not surpass the largest charging current that specification stipulated. 9.1.2 Charging voltage: Do not surpass the highest limited voltage that specification stipulated. 9.1.3 Charging temperature: within temperature scope that specification stipulated.
