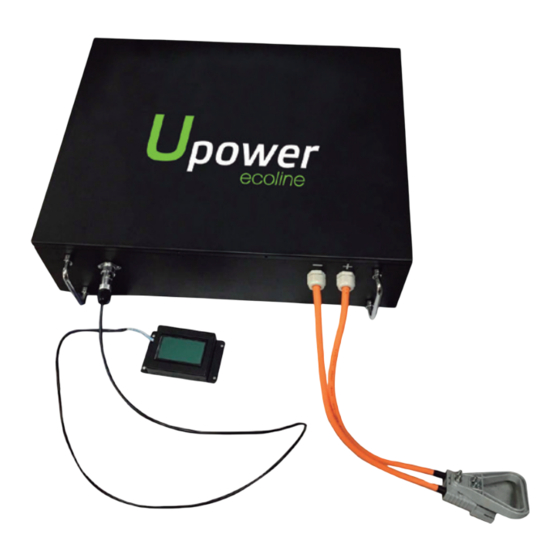

UE-24Li300
Issued Date
Issued Version
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack
UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery
pack.
2. Specification (@Battery initial Temp25±5°C)
NO.
Items
Rated Capacity
1
Minimum Capacity
2
Energy
3
Nominal Voltage
4
Outgoing Voltage
5
Internal resistance
6
Limited charge voltage
7
Floating charge voltage
8
Standard charge current
9
Maximum charge current
10
Standard discharge current
11
Maximum discharge current
12
Pulse discharge current
13
Discharge cut-off voltage
>
2016-08-05
>
V01
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
info@upowerbatteries.com
LITHIUM IRON PHOSPHATE BATTERY
UE-24Li300
Criteria
300Ah
285Ah
7.68KWh
25.6V
≥25.6V
≤20mΩ
29.2±0.2V
27.6±0.2V
60A
100A
100A
150A/Continuous for 1 hour
200A/Continuous for 15 min
20V
www.upowerbatteries.com
manufactured by
01
Advertisement
Related Manuals for UPOWER Ecoline UE-24Li300
Summary of Contents for UPOWER Ecoline UE-24Li300

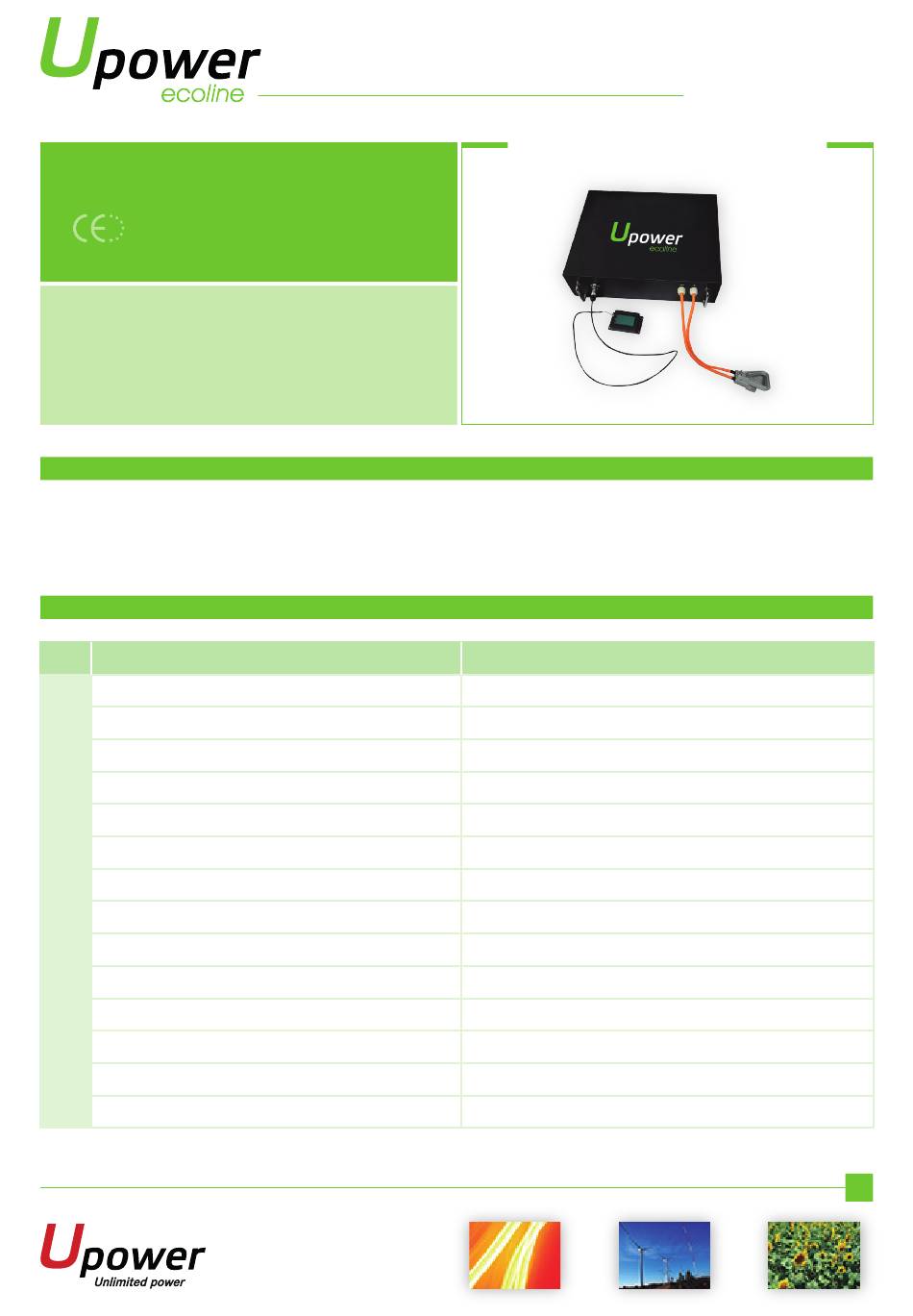

- Page 1 LITHIUM IRON PHOSPHATE BATTERY Multi-application - LiFePO4 Power UE-24Li300 Issued Date > 2016-08-05 Issued Version > 1. General Information This specification defines the performance of rechargeable LiFePO4 battery pack manufactured by UE-24Li300 UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery pack.
- Page 2 UE-24Li300 www.upowerbatteries.com Items Description Length: 602±3mm Dimension Width: 530±3mm Height: 202±3mm Weight Approx: 85.0±1.0Kg Charging: 0~45°C Operating Temperature Discharging: -20~60°C Recommended operating temperature: 15°C~35°C Residual capacity: ≤3%/month; ≤15%/years Self-discharge rate Reversible capacity: ≤1.5%/month; ≤8%/years Less than 1 month: -20°C~35°C，45% RH~75％ RH Less than 3 months: -10°C~35°C，45% RH~75％ RH Storage Temperature & Humidity Range Recommended storage environment: 15°C~35°C, 45% RH~75％ RH...
-
Page 3: Product Performance
UE-24Li300 www.upowerbatteries.com 4. Product Performance Items Criterion Testing method Rest for 1 hour after fully charged, then discharge with Rated Capacity 300Ah 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 120 minutes, you... - Page 4 UE-24Li300 www.upowerbatteries.com Items Content Specification Over-discharge protection for each cell 2.50±0.05V Over discharge Over-discharge release for each cell 3.00±0.05V Over-discharge release method Charging recovery Discharge over current protection 550±50A Over current Protection delay time 50~150ms Over current release method Release after cutoff the load...
-
Page 5: Dimensional Drawing
UE-24Li300 www.upowerbatteries.com 6. Dimensional Drawing 7. 4P - Air head Pin definition (main board and display) 1. The motherboard socket: Pin1 to 12V+, Pin2 to B, Pin2 to A and Pin4 to GND. 2. The LCD panel socket: Pin1 to 12V+, Pin2 to B, Pin2 to A and Pin4 to GND. - Page 6 UE-24Li300 www.upowerbatteries.com 8. Transportation • Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery. • Battery should be stayed in the warehouse 15ºC 〜 35ºC where it’s dry, clean, shade and well-ventilated.
- Page 7 UE-24Li300 www.upowerbatteries.com 10. Battery Operation Instruction 10.1 Charge and discharge 10.1.1 Charging current: Do not surpass the largest charging current that specification stipulated. 10.1.2 Charging voltage: Do not surpass the highest limited voltage that specification stipulated. 10.1.3 Charging temperature: within temperature scope that specification stipulated.
