Multi-application - LiFePO4 Power
UE-12Li200
Issued Date
Issued Version
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack
UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery
pack.
2. Specification (@Battery initial Temp25±5°C)
NO.
Items
Rated Capacity
1
Minimum Capacity
2
Energy
3
Nominal Voltage
4
Outgoing Voltage
5
Internal resistance
6
Series parallel application
7
Limited charge voltage
8
Floating charge voltage
9
Standard charge current
10
Maximum charge current
11
Standard discharge current
Maximum discharge current
12
13
Pulse discharge current
14
Discharge cut-off voltage
>
2017-07-26
>
V00
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
info@upowerbatteries.com

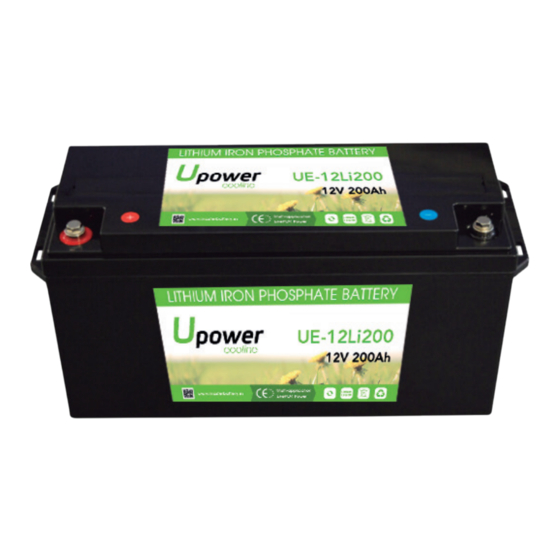

LITHIUM IRON PHOSPHATE BATTERY
UE-12Li200
Description
200Ah
190Ah
2.56KWh
12.8V
≥12.8V
≤200mΩ
Series connection is prohibited
14.6±0.2V
13.8±0.2V
60A
80A
80A
100A/ withstand 30min @Battery initial Temp 25±5°C
Withstand the 350A/3s
8.0V
www.upowerbatteries.com
manufactured by
01
01
01
01
Advertisement
Related Manuals for UPOWER Ecoline UE-12Li200
Summary of Contents for UPOWER Ecoline UE-12Li200
- Page 1 LITHIUM IRON PHOSPHATE BATTERY Multi-application - LiFePO4 Power UE-12Li200 Issued Date > 2017-07-26 Issued Version > 1. General Information This specification defines the performance of rechargeable LiFePO4 battery pack manufactured by UE-12Li200 UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery pack.
- Page 2 UE-12Li200 www.upowerbatteries.com Items Description Length: 483.5±3mm Dimension Width: 170±3mm Height: 241±3mm Weight Approx: 24.5±1.5Kg Charging: 0~45°C Operating Temperature Discharging: -20~60°C Recommended operating temperature: 15°C~35°C Residual capacity: ≤3%/month; ≤15%/years Self-discharge rate Reversible capacity: ≤1.5%/month; ≤8%/years Less than 1 month: -20°C~35°C，45% RH~75％ RH Less than 3 months: -10°C~35°C，45% RH~75％ RH Storage Temperature & Humidity Range Recommended storage environment: 15°C~35°C, 45% RH~75％ RH...
-
Page 3: Product Performance
UE-12Li200 www.upowerbatteries.com 4. Product Performance Items Criteria Testing Method 50% battery SOC state frequency of 1 KHZ ac resistan- ≤15mΩ Internal resistance ce tester. Discharge with the current of 0.33C until it can’t discharge, and then rest it for 1h. Charge the battery following CC (0.33C)/CV (14.6V) mode to full capacity,... -
Page 4: Dimensional Drawing
UE-12Li200 www.upowerbatteries.com Items Content Specification Discharge over current protection 300~500A Over current Protection delay time 0.5s~2s Over current release method Delay about 8S after recovery Short circuit Do not short-circuit the electrodes Designed For 600A /1ms Protection @65±5°C Charge over temperature Release @50±5°C... - Page 5 UE-12Li200 www.upowerbatteries.com 7. Transportation • Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery. • Battery should be stayed in the warehouse 15ºC 〜 35ºC where it’s dry, clean, shade and well-ventilated.
- Page 6 UE-12Li200 www.upowerbatteries.com 9. Battery Operation Instruction 9.1 Charge and discharge 9.1.1 Charging current: Do not surpass the largest charging current that specification stipulated. 9.1.2 Charging voltage: Do not surpass the highest limited voltage that specification stipulated. 9.1.3 Charging temperature: within temperature scope that specification stipulated.
