UPOWER Ecoline UE-48Li3600V2 Operation Manual

Rechargeable li-ion battery
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

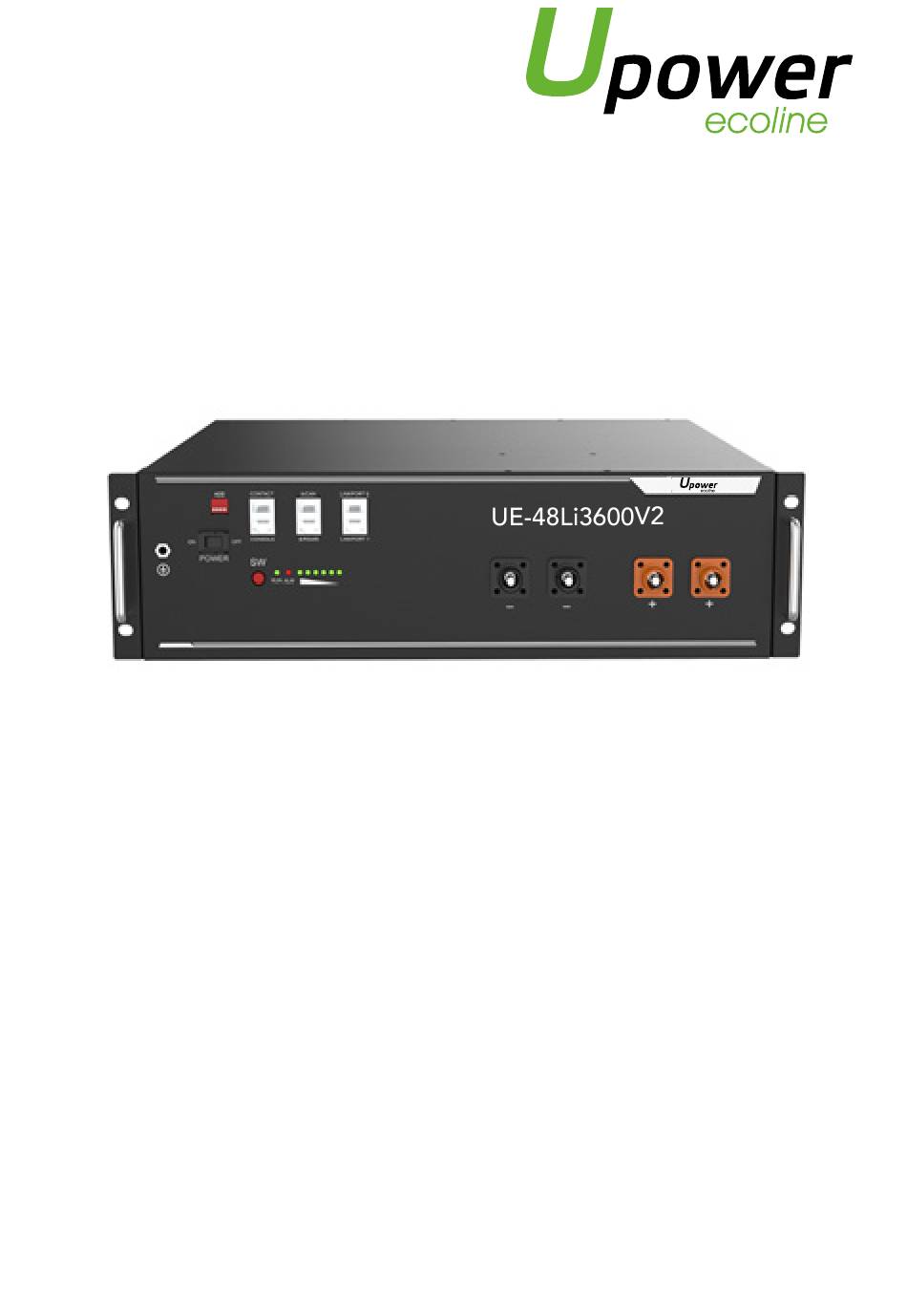

Rechargeable Li-Ion Battery
UE-48Li3600V2
Operation Manual
Information Version: 1.0
20CQSV0801

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UE-48Li3600V2 and is the answer not in the manual?

Questions and answers

Related Manuals for UPOWER Ecoline UE-48Li3600V2

Summary of Contents for UPOWER Ecoline UE-48Li3600V2

  • Page 1 Rechargeable Li-Ion Battery UE-48Li3600V2 Operation Manual Information Version: 1.0 20CQSV0801...

  • Page 2: Table Of Contents

    UE-48Li3600V2 product manual This manual introduces from Upower Ecoline. Please read this manual before you to install the UE-48Li3600V2 battery and follow the instruction carefully during the installation process. Any confusion, please contact Upower immediately for advice and clarification. Table of Contents 1.

  • Page 3: Safety Precautions

    UE-48Li3600V2 product manual 1. Safety Precautions Reminding 1) It is important and necessary to read the user manual carefully (in the accessories) before installing or using battery. Failure to do so or to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, or death, or can damage battery, potentially rendering it inoperable.

  • Page 4: Before Connecting

    UE-48Li3600V2 product manual Warning 1.1 Before Connecting 1) After unpacking, please check product and packing list first, if product is damaged or lack of parts, please contact with the local retailer. 2) Before installation, be sure to cut off the grid power and make sure the battery is in the turned-off mode.

  • Page 5: Introduction

    UE-48Li3600V2 product manual 2. Introduction UE-48Li3600V2 lithium iron phosphate battery is one of new energy storage products developed and produced by Upower, it can be used to support reliable power for various types of equipments and systems. UE-48Li3600V2 has built-in BMS battery management system, which can manage and monitor cells information including voltage, current and temperature.

  • Page 6: Specifications

    UE-48Li3600V2 product manual 2.2 Specifications UE-48Li3600V2 ecoline...
  • Page 7 UE-48Li3600V2 product manual Basic Parameters UE-48Li3600V2 Nominal Voltage (V) Nominal Capacity (Wh) 3552 Usable Capacity (Wh) 3374.4 Dimension (mm) 442*420*132 Weight (Kg) Discharge Voltage (V) 44.5 ~ 53.5 Charge Voltage (V) 52.5 ~ 53.5 Recommend Charge/Discharge Current (A) Maximum Charge/Discharge Current (A)

  • Page 8: Equipment Interface Instruction

    UE-48Li3600V2 product manual 2.3 Equipment Interface Instruction UE-48Li3600V2 Power Switch ON: ready to turn on. OFF: power off. For storage or shipping. Start Turn on: press more than 0.5s to start the battery module Turn off: press more than 0.5s to turn off the battery.

  • Page 9: Definition Of Rj45 Port Pin

    UE-48Li3600V2 product manual Contact Pin1 Input, passive signal. Pin2 On: turn off battery. Off: normal. Pin3 Output1. Pin4 On: stop charge. Pin5 Output2. Pin6 On: stop discharge. Pin7 Output3. Pin8 On: BMS error. Output request signal voltage ≤ 25V 500 Kbps. 120 . For connection to LV-HUB, inverter, or upper battery.
  • Page 10 UE-48Li3600V2 product manual Power Terminals Power cable terminals: there are two pair of terminals with same function, one connects to equipment, the other one paralleling to other battery module for capacity expanding. For power cables uses water-proofed connectors. must keep pressing this Lock Button while pulling out the power plug.

  • Page 11: Safe Handling Of Lithium Batteries Guide

    UE-48Li3600V2 product manual 3. Safe Handling of Lithium Batteries Guide 3.1 Schematic Diagram of Solution INVERTER PV ARRAY Public Grid Local Load BATTERY MODULE 3.2 Danger Label * Do not disconnect or disassemble by non-professional personnel. * Do not drop, deform, impact, cut or spearing with a sharp object.

  • Page 12: Tools

    UE-48Li3600V2 product manual 3.3 Tools Wire cutter Crimping Modular Plier Screw Driver NOTE Use properly insulated tools to prevent accidental electric shock or short circuits. If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape.multiple parallel batteries.

  • Page 13: Installation And Operation

    UE-48Li3600V2 product manual 4. Installation and Operation 4.1 Package Items Unpacking and check the Packing List 1) For battery module package: Two power cables and one communication cable for each battery package: 1000 Grounding cable: 2) For battery system connects to inverter: Two long power cables (current capacity 120A, constant 100A) and one communication cable for each energy storage system.

  • Page 14: Installation Location

    UE-48Li3600V2 product manual 4.2 Installation Location Make sure that the installation location meets the following conditions: • The area is completely water proof. • The floor is flat and level. • There are no flammable or explosive materials. • The ambient temperature is within the range from 0°C to 50°C.

  • Page 15: Put Into Cabinet Or Racks

    UE-48Li3600V2 product manual 4.4 Put Into Cabinet or Racks Put battery modules into cabinet and connect the cables: 1. Put the battery into the cabinet. 2. Drive the 4 pcs screws. 3. Connect the cables between battery modules. 4. Connect the cables to inverter.

  • Page 16: Put Into Bracket

    UE-48Li3600V2 product manual 4.5 Put Into Bracket 1. Dismantle the 2 holders of battery.
  • Page 17 UE-48Li3600V2 product manual 2. Put the battery into 2 pcs of bracket. 3. Use 4 location holes, stack the batteries together. And connect the 4 locker together.
  • Page 18 UE-48Li3600V2 product manual 4. Maximum 4 in stack. Caution 1) A suitable breaker between battery system and inverter is required. 2) All the installation and operation must follow local electric standard.

  • Page 19: Power On

    UE-48Li3600V2 product manual 4.6 Power On Double check all the power cable and communication cable. 3) Switch on all the battery modules: 4) The one with empty Link Port 0 is the Master Battery Module, others are slaves (1 master battery configure with...
  • Page 20 UE-48Li3600V2 product manual 5) Press the red SW button of master battery to power on, all the battery LED light will be on one by one from the master battery: Note: 1) After the battery module powered on, the soft-start function takes 3 sec to active.

  • Page 21: Power Off

    UE-48Li3600V2 product manual 4.7 Power Off 1) Turn external power source off. 2) Press red SW switch of master battery. Then all batteries will off. 3) Switch Power switch OFF. 4.8 Multi-group Mode By RS485. Do not support yet. Maximum 16 in 1 group.

  • Page 22: Trouble Shooting

    UE-48Li3600V2 product manual Each battery pile can configure maximum 16pcs UE-48LI2400V2/UE-48LI3600V2. 5. Trouble Shooting 5.1 Problem determination based on: 1) Whether the battery can be turned on or not. 2) If battery is turned on, check the red light is off, flashing or lighting.

  • Page 23: Emergency Situations

    UE-48Li3600V2 product manual 3) Unable to charge and discharge with red LED on. The temperature is 0~50 degree. Use charger to charge, not possible. Use load to discharge, not possible. g) Under permanent protection. The single cell voltage has been higher than 4.2 or lower than 1.5 or temperature higher than 80 degree.

  • Page 24: Remarks

    UE-48Li3600V2 product manual 3) Wet Batteries If the battery pack is wet or submerged in water, do not let people access it, and then contact Upower or an authorized dealer for technical support. Cut off all power switch on inverter side.
  • Page 25 Upower, LTD 66A Tzar Asen Srt. Sofia, Republic of Bulgaria +34 918 021 649 +34 917 750 542 info@upowerbatteries.com www.upowerbatteries.com...
