Multi-application - LiFePO4 Power
UE-12Li100
Issued Date
Issued Version
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack
UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery
pack.
2. Specification (@Battery initial Temp25±5°C)
NO.
Items
Rated Capacity
1
Minimum Capacity
2
Energy
3
Nominal Voltage
4
Outgoing Voltage
5
Internal resistance
6
Series parallel application
7
Limited charge voltage
8
Floating charge voltage
9
Standard charge current
10
Maximum charge current
11
Standard discharge current
Maximum discharge current
12
13
Pulse discharge current
14
Discharge cut-off voltage
>
2017-05-31
>
V00
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
info@upowerbatteries.com

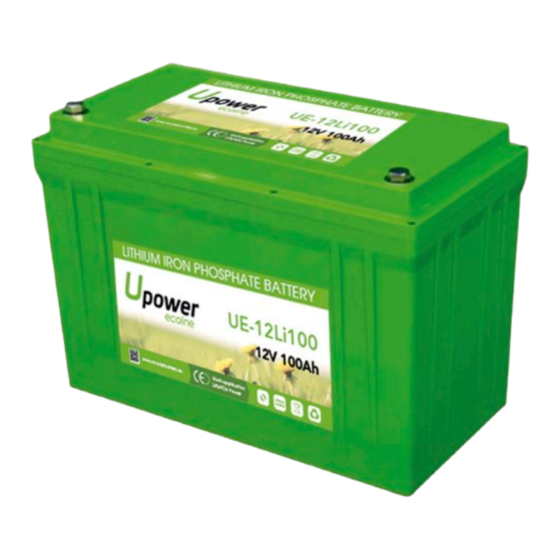

LITHIUM IRON PHOSPHATE BATTERY
UE-12Li100
Description
100Ah
95Ah
1.28KWh
12.8V
≥12.8V
≤30mΩ
Up to 4 series-connected applications
14.6±0.2V
13.8±0.2V
60A
80A
80A
100A
Withstand the 350A/3s
8.0V
www.upowerbatteries.com
manufactured by
01
01
01
01
Advertisement
Table of Contents
Related Manuals for UPOWER Ecoline UE-12Li100
Summary of Contents for UPOWER Ecoline UE-12Li100
- Page 1 LITHIUM IRON PHOSPHATE BATTERY Multi-application - LiFePO4 Power UE-12Li100 Issued Date > 2017-05-31 Issued Version > 1. General Information This specification defines the performance of rechargeable LiFePO4 battery pack manufactured by UE-12Li100 UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery pack.
- Page 2 UE-12Li100 www.upowerbatteries.com Items Description Length: 327±2mm Dimension Width: 171±2mm Height: 234±2mm Weight Approx: 12.8±0.5Kg Charging: 0~45°C Operating Temperature Discharging: -20~60°C Recommended operating temperature: 15°C~35°C Residual capacity: ≤3%/month; ≤15%/years Self-discharge rate Reversible capacity: ≤1.5%/month; ≤8%/years Less than 1 month: -20°C~35°C，45% RH~75％ RH Less than 3 months: -10°C~35°C，45% RH~75％ RH Storage Temperature & Humidity Range Recommended storage environment: 15°C~35°C, 45% RH~75％ RH...
- Page 3 UE-12Li100 www.upowerbatteries.com 4. Product Performance Items Criteria Testing Method Rated Capacity 100Ah Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 120...
- Page 4 UE-12Li100 www.upowerbatteries.com Items Content Specification Over-charge protection for each cell 3.75±0.025V Over charge Over-charge release for each cell 3.60±0.04V Over-charge release method Under the release voltage Over-discharge protection for each cell 2.0±0.04V Over discharge Over-discharge release for each cell 2.5±0.04V...
- Page 5 UE-12Li100 www.upowerbatteries.com 7. Transportation • Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery. • Battery should be stayed in the warehouse 15ºC 〜 35ºC where it’s dry, clean, shade and well-ventilated.
- Page 6 UE-12Li100 www.upowerbatteries.com 9. Battery Operation Instruction 9.1 Charge and discharge 9.1.1 Charging current: Do not surpass the largest charging current that specification stipulated. 9.1.2 Charging voltage: Do not surpass the highest limited voltage that specification stipulated. 9.1.3 Charging temperature: within temperature scope that specification stipulated.
