1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack
UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery
pack.
2. Specification (@Battery initial Temp25±5°C)
NO.
Items
Rated Capacity
1
Minimum Capacity
2
Energy
3
Nominal Voltage
4
Outgoing Voltage
5
Internal resistance
6
Limited charge voltage
7
Floating charge voltage
8
Standard charge current
9
Maximum charge current
10
Standard discharge current
11
Maximum discharge current
12
Pulse discharge current
13
Discharge cut-off voltage
>
2016-07-25
>
V01
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
info@upowerbatteries.com

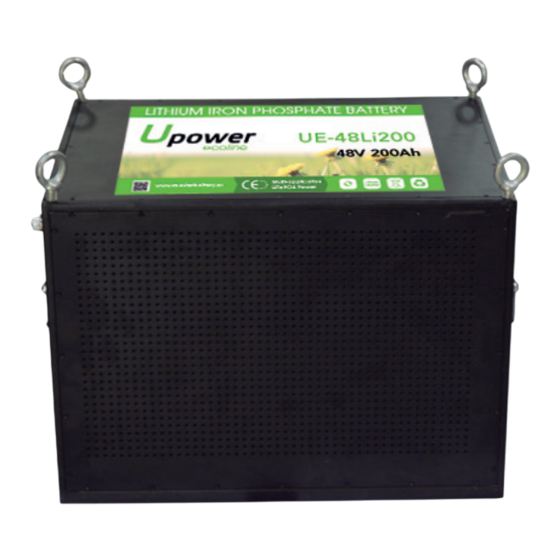

LITHIUM IRON PHOSPHATE BATTERY
UE-48Li200
Criteria
200Ah
190Ah
10.24KWh
51.2V
≥51.2V
≤30mΩ
58.4±0.2V
55.2±0.2V
60A
100A
100A
150A/Continuous for 1 hour
200A/Continuous for 15 min
40.0V
www.upowerbatteries.com
manufactured by
01
