Multi-application - LiFePO4 Power

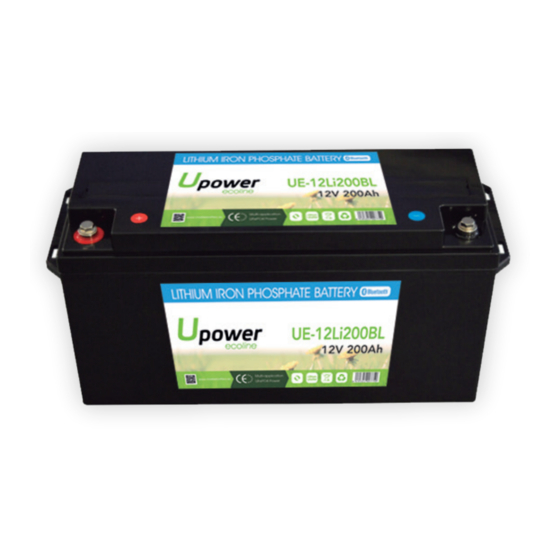

UE-12Li200BL
Issued Date
Issued Version
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack
UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery
pack. The battery pack support Bluetooth communication function. Through Android and IOS APP, can read the
battery status and information. Especially due to the Android system's openness, different smart phone manufactu-
rer will have their own different Bluetooth hardware version and customized feature Android systems.
So the APP may not work well on some smart phones (with Android system) due to compatible issue.
It is necessary for the customer to confirm whether the phone is compatible for the APP.
2. Specification (@Battery initial Temp25±5°C)
NO.
Items
Rated Capacity
1
Minimum Capacity
2
Energy
Nominal Voltage
3
4
Outgoing Voltage
5
Internal resistance
6
Series parallel application
7
Limited charge voltage
Floating charge voltage
8
9
Standard charge current
10
Maximum charge current
>
2017-07-26
>
V00
LITHIUM IRON PHOSPHATE BATTERY
UE-12Li200BL
Description
200Ah
190Ah
2.56KWh
12.8V
≥12.8V
≤200mΩ
Series connection is prohibited
14.6±0.2V
13.8±0.2V
60A
80A
manufactured by
01
Advertisement
Table of Contents
Related Manuals for UPOWER Ecoline UE-12Li200BL
Summary of Contents for UPOWER Ecoline UE-12Li200BL
- Page 1 LITHIUM IRON PHOSPHATE BATTERY Multi-application - LiFePO4 Power UE-12Li200BL Issued Date > 2017-07-26 Issued Version > 1. General Information This specification defines the performance of rechargeable LiFePO4 battery pack manufactured by UE-12Li200BL UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery pack.
- Page 2 UE-12Li200BL Items Description Standard discharge current Maximum discharge current 100A/ withstand 30min @Battery initial Temp 25±5°C Pulse discharge current Withstand the 350A/3s Discharge cut-off voltage 8.0V Length: 483.5±3mm Dimension Width: 170±3mm Height: 241±3mm Weight Approx: 24.5±1.5Kg Charging: 0~45°C Operating Temperature Discharging: -20~60°C Recommended operating temperature: 15°C~35°C...
- Page 3 UE-12Li200BL 4. Product Performance Items Criteria Testing Method 50% battery SOC state frequency of 1 KHZ ac ≤15mΩ Internal resistance resistance tester. Discharge with the current of 0.33C until it can’t discharge, and then rest it for 1h. Charge the battery following CC (0.33C)/CV (14.6V) mode to full capacity,...
- Page 4 UE-12Li200BL Items Content Specification Over-discharge protection for each cell 2.0±0.05V Over discharge Over-discharge release for each cell 2.5±0.05V Over-discharge release method Charge to recovery Discharge over current protection 300~500A Protection delay time 0.5s~2s Over current Over current release method Delay about 8S after recovery...
- Page 5 UE-12Li200BL 7. Transportation • Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery. • Battery should be stayed in the warehouse 15ºC 〜 35ºC where it’s dry, clean, shade and well-ventilated.
- Page 6 UE-12Li200BL 9. Battery Operation Instruction 9.1 Charge and discharge 9.1.1 Charging current: Do not surpass the largest charging current that specification stipulated. 9.1.2 Charging voltage: Do not surpass the highest limited voltage that specification stipulated. 9.1.3 Charging temperature: within temperature scope that specification stipulated.
