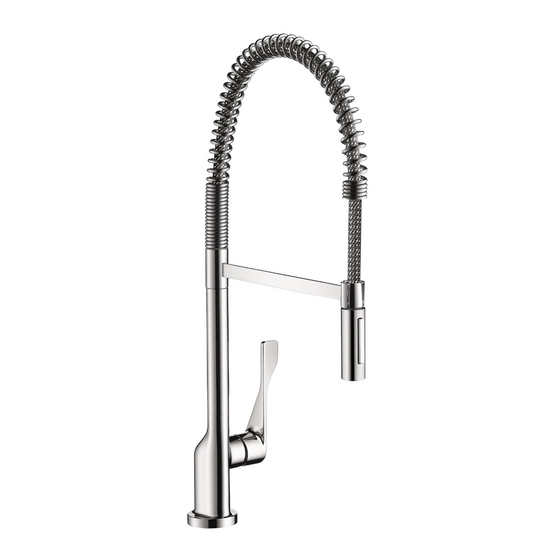

Hans Grohe Axor Citterio 39840 1 Series Installation/User Instructions/Warranty
Hide thumbs
Also See for Axor Citterio 39840 1 Series:
- Installation/user instructions/warranty (16 pages) ,
- Installation/user instructions/warranty (16 pages)
Related Manuals for Hans Grohe Axor Citterio 39840 1 Series
Summary of Contents for Hans Grohe Axor Citterio 39840 1 Series
- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Citterio 39840xx1...
-
Page 2: Technical Information
English Français Données techniques Technical Information Recommended water pressure 15 - 75 psi Pression d’eau recommandée 15 - 75 psi Pression d’eau maximum 145 psi Max. water pressure 145 psi Température recommandée 120° - 140° F* Recommended hot water temp. 120° - 140° F* d'eau chaude Max. hot water temp 176°F* Température maximum d'eau chaude 176°F* Flow rate 2.2 gpm Capacité nominale 2.2 gpm Hole size in mounting surface 1½" Dimension du trou dans la surface de montage 1½ po Max. depth of mounting surface 2¾" Profondeur maximale de la surface 2¾ po de montage *Please know and follow all applicable local plumbing * Vous devez connaître et respecter tous les codes de plom- codes when setting the temperature on the water heater. berie locaux applicables pour le réglage de la température du chauffe-eau. -
Page 3: Datos Tecnicos
Español Datos tecnicos Tools Required / Outiles Utiles / Herramientas Útiles Presión recomendada en servicio 15 - 75 psi Presión en servicio max. 145 psi Temperatura recomendada del 120� - 140� F* agua caliente Temperatura del agua caliente max. 176�F* Caudal máximo 2.2 gpm Tamaño del orificio en la superficie de montaje 1½" Profundidad máxima de la superficie de montaje 2¾" 16 mm 9 mm *Debe conocer y cumplir todos los códigos locales apli- cables para ajustar la temperatura del calentador de agua. 3 mm Consideraciones para la instalación • Para obtener mejores resultados, la instalación debe estar a cargo de un plomero profesional matriculado. - Page 4 12½" 10⅝" 1⅛" 5⅜" 2½" 5⅜" 1⅜" ⅜ 360°...
- Page 5 Replacement Parts / Pièces détachées / Repuestos 97475xx0 95340000 97350000 98231000 (18x1.5) 95908xx1 97662000 95909xx0 97735000 95910000 97558000 39891xx0 95008000 96338000 98603xx0 96461000 96316001 92730000 97825000 97523000 97548000 95049000 xx = Colors / Couleurs / Acabados 00 = Chrome 80 = Steel Optik...
-
Page 6: Installation
English Installation Place the faucet and sealing ring on the mounting surface. Install the plastic washer, friction washer, metal washer, and mounting nut. If the mounting surface is thinner than 1⅜", or if there is insufficient space, omit the plastic washer. Tighten the mounting nut. Tighten the screws. Install the hose. -
Page 7: Instalación
Français Español Installation Instalación Placez l'anneau d'étanchéite et le robinet sur la Coloque el oro de sellado y el grifo sobre la superfi- surface de montage. cie de montaje. Installez la rondelle de plastique, la rondelle en fibre, Instale la arandela plástica, la arandela de fibra, la la rondelle de friction, et l'écrou de montage. arandela de fricción y la tuerca de fijación. S l'épaisseur du comptoir dépasse 1⅜ po, ou si Si el espesor de la mesada es superior a 1⅜ pulg. l'espace disponible est insuffisant, omettez la rondelle o si no hay suficiente espacio, puede omitirse la de plastique. arandela plástica. Serrez l'écrou de montage et les vis de serrage. Apriete la tuerca de fijación y los tornillos. Installez le flexible. Instale el flexo. - Page 8 English Connect the hot and cold supply hoses to the stops. Use two wrenches. 16 mm 9 mm Do not allow the supply hoses to twist. Flush the hot and cold supplies. Install the handspray.
- Page 9 Français Español Connectez les tuyaux d'arrivée d'eau chaude et Conecte las mangueras de suministro de agua cali- d'eau froide aux tuyau d'alimentation. ente y fría a las alimentaciones de la red. Servez-vous de deux clés, tel Use dos llaves, como se illustra en el qu'illustre dans le schema. Serrez diagrama. fermement a l'aide des clés. No permita que ninguna de los Assurez-vous que les tuyaux mangueras se retuerza.
- Page 10 English Install the aerator tool on one of the supply hoses.
- Page 11 Français Español Installez l'outil spécial sur un des tuyaux. Instale la herramienta especial en uno de las mangueras.
- Page 12 Set the High Temperature Limit Stop / Réglage de la butée limite d’eau chaude / Ajuste el tope de límite de alta temperatura 3 mm 140ºF 50ºF 44 PSI 109° 100° 131° 122° 140° 97°F 3 mm...
- Page 13 User Instructions / Instructions de service / Manejo fermé ouvert cerrar abierto...
- Page 14 Cleaning / Nettoyage / Limpieza...
- Page 16 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of For best results: • Prevent the buildup of mineral scale and /or soap residue by cleaning your Hansgrohe product(s) when needed. • Select a cleaning agent specifically intended for the type of product. • Do not use these types of cleaners as they will cause damage to your Hansgrohe product: Any cleaning agent containing hydrochloric acid, formic acid, lye, or acetic acid. Abrasive cleaning powders, pads, or brushes. Steam cleaners. “No rinse” cleaning agents. • Always follow the instructions provided by the manufacturer of the cleaning agent. • Do not mix cleaning agents, unless directed by the manufacturer. • Do not spray cleaners directly onto the product as drops could enter openings and gaps and cause damage. When using spray cleaners, spray the cleaner onto a soft cloth or sponge. • Always rinse your Hansgrohe product thoroughly with clear water and polish dry with a soft cloth after cleaning. Important • Residue from soaps and shampoos can cause damage. Rinse the product with clean water after each use. • Residue from basin/tub/tile cleaner can cause damage to faucets and fittings. Immediately rinse any overspray from the Hansgrohe product.
-
Page 17: Indications Importantes
• Pour le nettoyage avec produit vaporisé liquide, en aucun cas sur la robinetterie, mais au contraire aspergé sur le chiffon (torchon, éponge) et effectuer comme cela le nettoyage, car les aérosols peuvent pénétrer dans les ouvertures et fentes de la robinetterie et peuvent provoquer des détériorations. • Après le nettoyage rincez avec suffisamment d’eau claire pour éliminer les restes de produits attachés. • L’utilisation d’appareil de nettoyage à vapeur n’est pas autorisée, car les températures importantes peuvent détériorer les produits. Indications importantes • Les produits pour le corps comme les savons liquides, les shampooings ou les gels de douche peuvent causer des détériorations. • Ici aussi on doit: Après l’utilisation rincer soigneusement les restes avec de l’eau. Conseil de nettoyage • Les deteriorations imputables à un mauvais entretien ne peuvent être pris en considération par notre garantie. • Par l’action d’un nettoyant sur les revêtements déjà endommagé il se produit une aggravation des dégâts. Recomendación de limpieza para los productos de Hansgrohe Hoy en día, las griferías de baño y de cocina así como duchas modernas se componen de materiales muy distintos para satisfacer las exigencias del mercado respecto al diseño y la funcionalidad. Para evitar daños y reclamaciones hay que tener en cuenta ciertos aspectos tanto en el uso como en su limpieza. -
Page 18: Limited Consumer Warranty
Limited Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products that are purchased by a consumer in the United States or Canada after March 1, 1996, and installed in either in the United States or in Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original purchaser only. This warranty is non-transferable. WHAT IS COVERED BY THE WARRANTY The warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material or workmanship as follows: Hansgrohe will replace at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be made in timely fashion, Hansgrohe may elect to refund the purchase price in exchange for the return of the product. LENGTH OF WARRANTY Replacement or repaired parts of products will be covered for the term of this warranty, as stated in the following two sentences. If you are a consumer who purchased the product for use primarily for personal, family or household purposes, this warranty extends for as long as you own the product and the home in which the product is originally installed. If you purchased the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe & Commercial products, and (ii) for 5 years, with respect to Axor products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: A. Conditions, malfunctions or damage not resulting from defects in material or workmanship. - Page 19 EXCLUSIONS AND LIMITATIONS REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
- Page 20 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 800-334-0455 • Fax 770-360-9887 www.hansgrohe-usa.com...
