Clearances - Access In Service - Main Eco Compact Heat 15 Installation And Service Manual

5 Before Installation
At least
1.5°

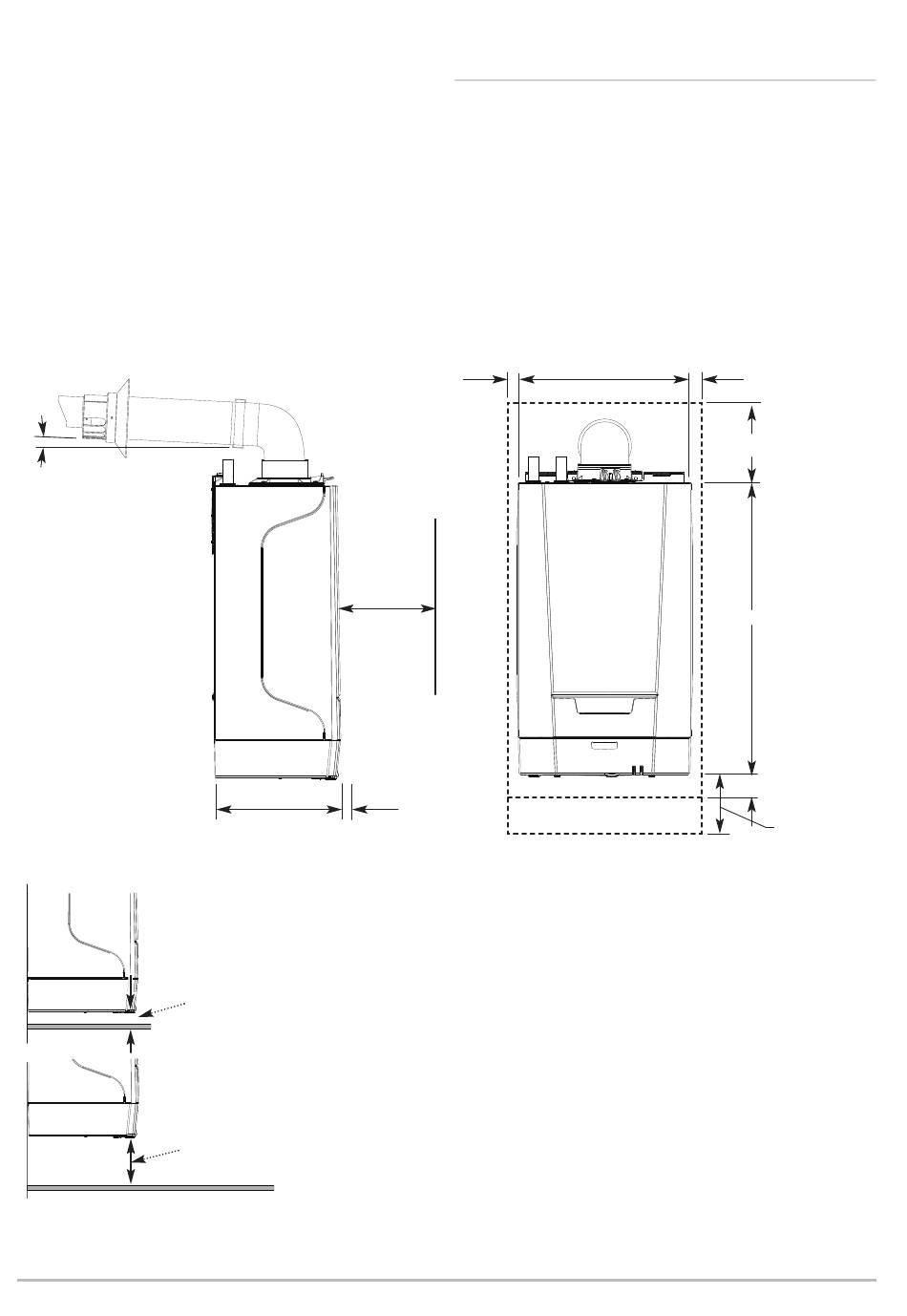

Fig. 9
cupboard 300mm deep
120mm Min when over
surface 600mm deep
30 Eco Compact Heat
500mm Min
For Servicing
Purposes
270mm 5mm Min
In Operation
35mm Min when in
5.3.6

Clearances - access in Service

1. A flat vertical area is required for the installation of the boiler.
2. These dimensions include the necessary clearances around
the boiler for case removal, spanner access and air movement
(Figs. 9 & 10). Additional clearances may be required for the
passage of pipes around local obstructions such as joists
running parallel to the front face of the boiler.
*These are MINIMUM recommended dimensions. Greater
clearance will aid installation and maintenance.
370mm
5mm Min
5mm Min
190mm
625mm
35mm Min*
in Cupboard
120mm Min*
7726859-01 (1/19)
