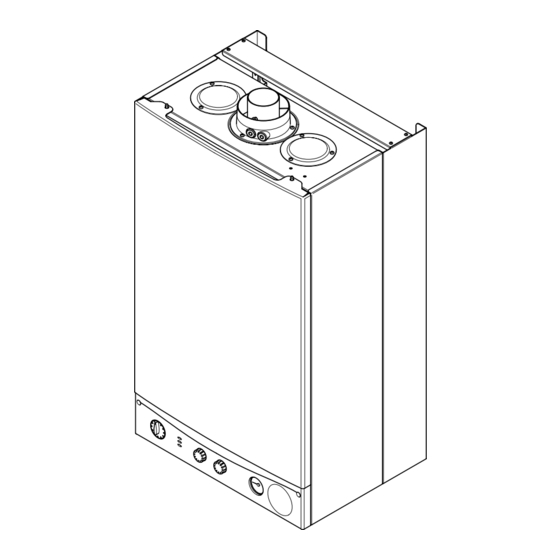

Wall mounted combination boiler gas fired central heating unit
Hide thumbs Also See for Combi 24:

Advertisement

Quick Links

Download this manual

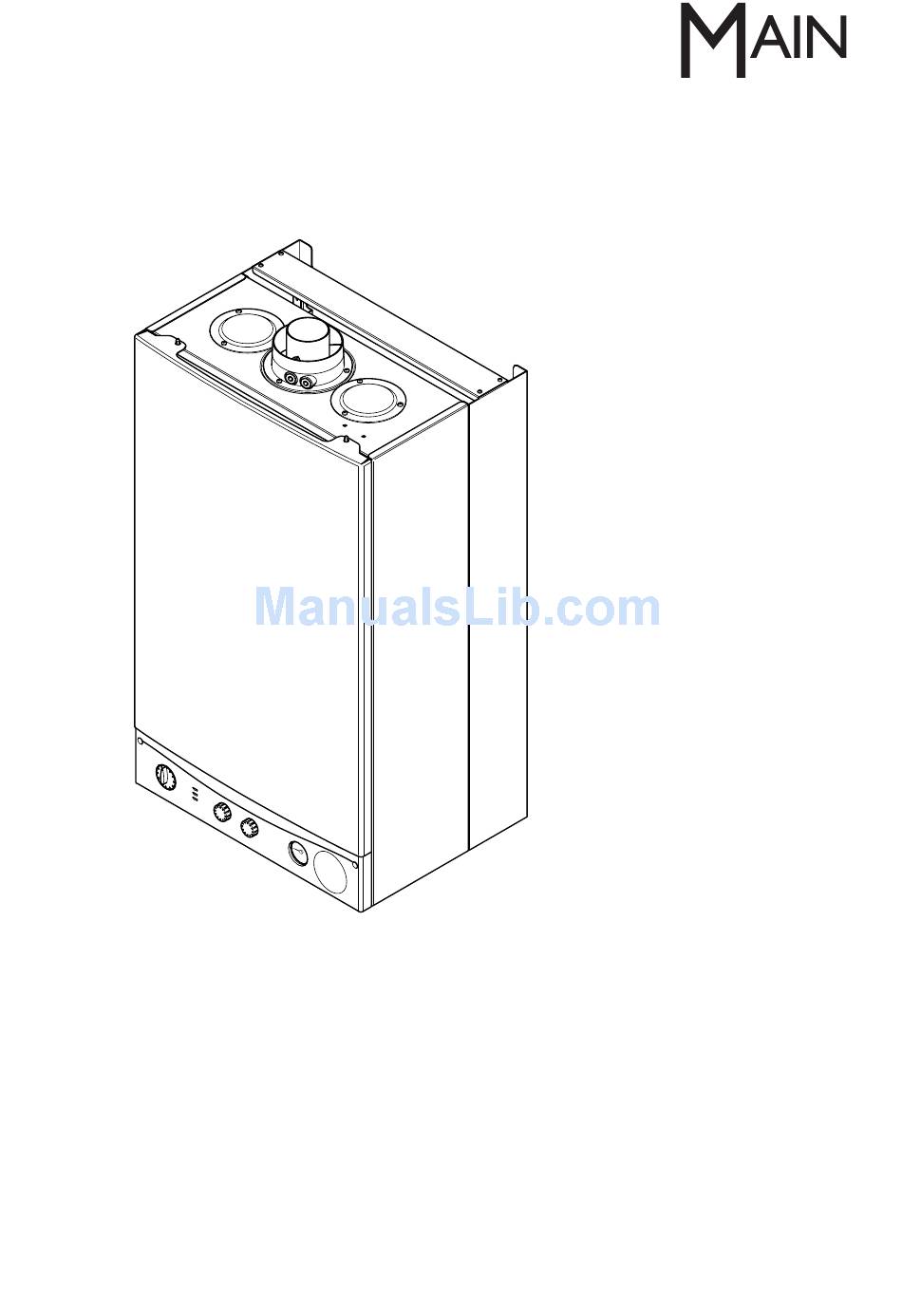

User's Guide and
Important Warranty Information
This is a Wall Mounted Combination Boiler Gas Fired Central Heating Unit.
The boiler meets the requirements of Statutory Instrument " The Boiler (Efficiency)
Regulations 1993 N
o
3083" and is deemed to meet the requirements of Directive
92/42/EEC on the energy efficiency requirements for new hot water boilers fired
with liquid or gaseous fuels:-
Type test for purpose of Regulation 5 certified by:
Notified Body 0051.
Product/Production certified by:
Notified Body 0086.
For use in GB/IE only.
Combi 24
Please read this
document and keep it safe.
It will help you out should
your boiler need attention.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Combi 24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Main Combi 24

Summary of Contents for Main Combi 24

  • Page 1 User’s Guide and Combi 24 Important Warranty Information This is a Wall Mounted Combination Boiler Gas Fired Central Heating Unit. The boiler meets the requirements of Statutory Instrument “ The Boiler (Efficiency) Regulations 1993 N 3083” and is deemed to meet the requirements of Directive...

  • Page 2: Natural Gas

    Natural Gas Dear User Main Combi 24 Thank you for choosing a Main Combination boiler. The following G.C.N 47 474 01 instructions are simple basic steps that you can take to ensure years of trouble free heating and hot water for your home.
  • Page 3 Fig. 2 6. The boiler will light automatically on demand. 7. The orange “burner” neon ( ) will illuminate when the boiler is operating and the main burner is on (Fig. 2). Reset Reset IMPORTANT: When the selector switch is in the ‘0’...
  • Page 4 Fault Indication 1. Your Main Combi 24 HE has three neon indicators. The upper two function as boiler on and fault indicators. Burner On 2. Depending on the nature of the fault the upper two Fast Flashing (2 every second) Flame Failure neons will illuminate, go off or flash.
  • Page 5 Temperature Control 1. Central Heating: The central heating hot water flow temperature can be adjusted between 30° C (± 5° C) minimum and 85° C (± 5° C) maximum. 2. Turn the control knob clockwise to increase the temperature (Fig. 6). 3.
  • Page 6 Central Heating System Pressure Pressure Gauge 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. With the system cold and the boiler not operating the pressure should be between 0.5 and 1.0 bar. During operation the pressure should not exceed 2.5 bar, and will normally be between 1.0 Fig.
  • Page 7 Servicing and Repair of your Boiler heateam can service and repair your boiler if your installer is not able to. Our Baxi Potterton trained heating experts will quickly get your heating and hot water working again. If your boiler is out of its free 12 month period, heateam can provide a competitive fixed price repair rate including parts, labour and VAT.
  • Page 8 For your Safety This appliance must have been installed in accordance with the manufacturer’s instructions and the regulations in force. GB - Heating Industry definition meaning England, Any modification that may interfere with the normal Scotland, Wales, Northern Ireland, Isle of Man and operation of the appliance without express written the Channel Isles permission from the manufacturer or his agent could...
  • Page 9 450mm 5mm Min 5mm Min 200mm Min 780mm Reset Burner On Flame Failure Power On 200mm Min Fig. 13 450mm Min For Servicing Purposes 8mm Min In Operation Fig. 14...
  • Page 10 In the unlikely event you have a problem with your boiler please check the following. 1. Is the electricity supply to your boiler switched on and the selector switch set to Central Heating and No Heating/Hot Water Hot Water? If so the Green ‘Power On’ neon will be on. 2.
  • Page 11 Warning ! If you smell gas Turn off the gas supply at the meter and call your gas supplier immediately. It is possible to isolate the boiler and at the isolating valve (Fig. 15). In GB, Transco operate a 24 hour emergency service and the telephone number will be listed in your telephone directory.
  • Page 12 5115811 - Iss. 2 Publication No. (05/2005) heateam heateam is the national customer service division of Please complete the boxes below Baxi Potterton providing a free warranty service within 12 months of installation of your boiler. If your installer is Serial Number unable to rectify your boiler fault, by contacting one of our friendly advisors we can arrange an engineer if...
