Dimensions and connections/clearances

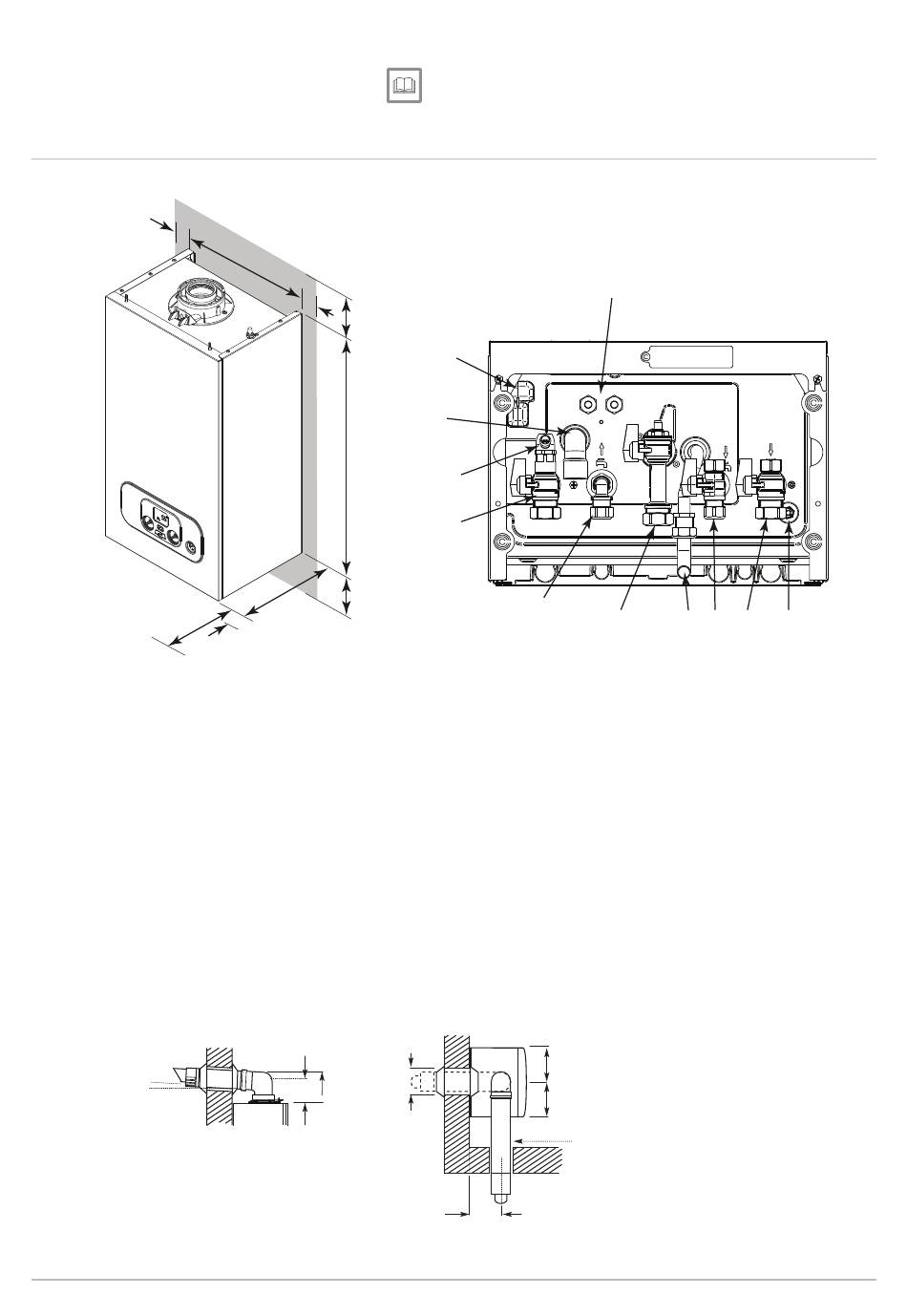

Fig.3 Dimensions and connections / clearances
5
450
Flue position
>1.5°
390
5
178
700
200
285
5
1
2
3
4
5
6
7
8
9
10
11
The clearances shown in the diagram are minimum requirements to allow
for case removal, spanner access and air movement. These should be ob­
served at all times and kept clear of obstructions.
Ø116 min
106
160
See
The back cover for contact details.
1
2
10
3
4
Condensate trap sump
Condensate drain
Heating circuit water flow
Hot water outlet
Gas inlet
Pressure relief pipe
Cold water inlet
Heating circuit water return
Pump drain point
Boiler drain point on flow isolation tap
Cable entry points
=
=
Ø100
154
