2. Schematic Checklist

2.1.2 Analog Power Supply

Pin1, pin3, pin4, pin20, pin51, and pin54 are the analog power supply pins, working at 2.8 V
noted that the sudden increase in current draw, when ESP32-S2 is in transmission mode, may cause a power rail
collapse. Therefore, it is highly recommended to add another 10 µF capacitor to the power trace, which can work
in conjunction with the 0.1 µF capacitor. In addition, a CLC filter circuit needs to be added near the power pins
(pin3 and pin4) so as to suppress high-frequency harmonics. The inductor's rated current is preferably 500 mA or
above. Refer to Figure 3
Notice:
• The recommended voltage of the power supply for ESP32-S2 is 3.3 V, and its recommended output current is 500
mA or more.
• It is suggested that users add an ESD protection diode at the power entrance.
Espressif Systems
5
and place the appropriate decoupling capacitor near each analog power pin.
D
VDD33
C2
100pF
VDD33
GND
C
VDD33
L1
C6 C7 C8
0.1uF
10uF 1uF
GND GND GND
ANT2
RF_ANT
1 L2
2
C11
PCB ANT
TBD
GND GND
B
The values of C11, L2 and C12
vary with the actual PCB board.
A

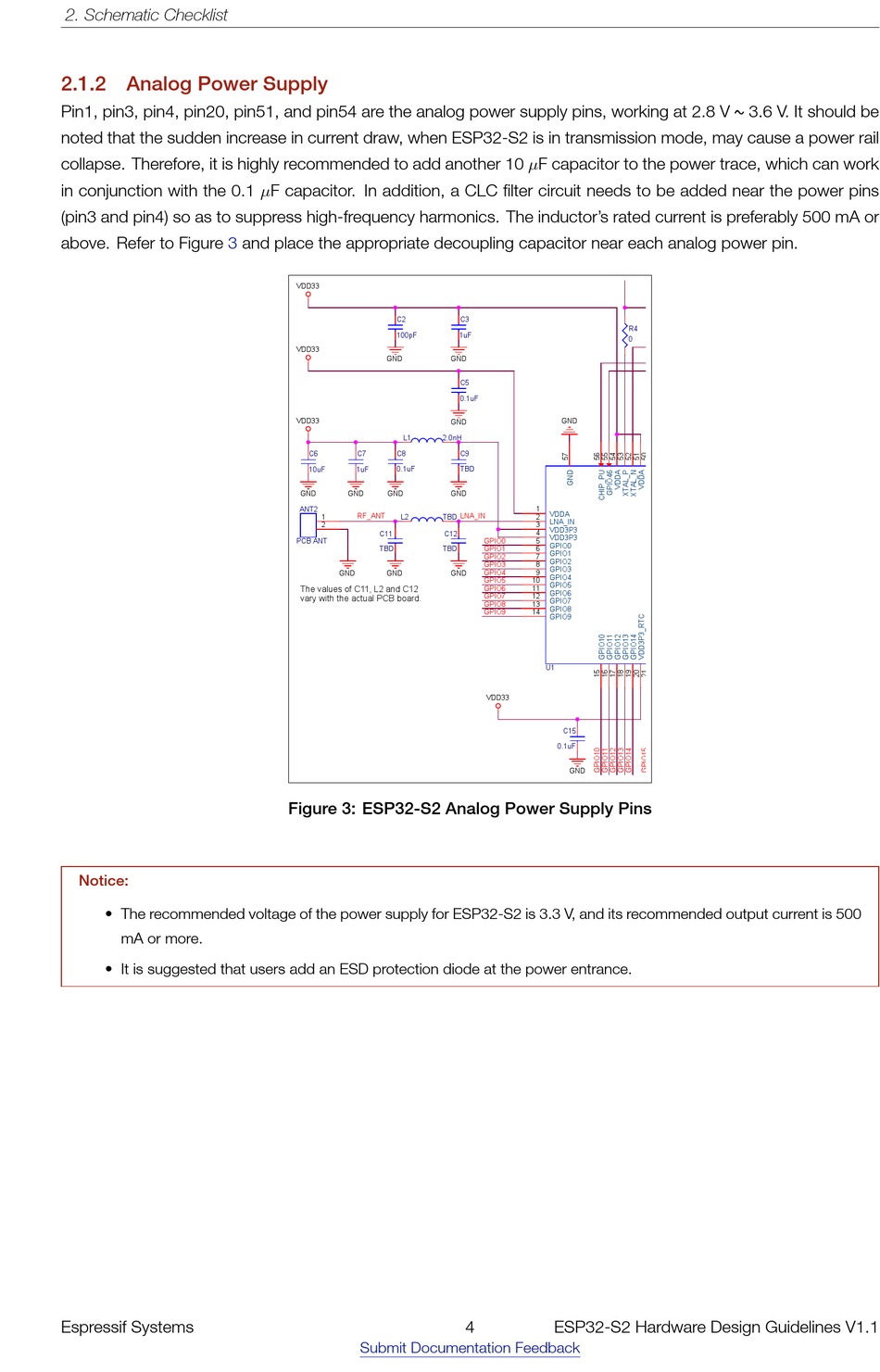

Figure 3: ESP32­S2 Analog Power Supply Pins
