2. Schematic Checklist
Notice:
• Please note the requirements for the 32.768 kHz crystal.
– Equivalent series resistance (ESR) ⩽ 70 kΩ.
– Load capacitance at both ends should be configured according to the crystal's specification.
• The parallel resistor R12 is used for biasing the crystal circuit (5 MΩ < R12 ⩽ 10 MΩ). In general, users do not need
to populate R12.
• If the RTC source is not required, then pin21 (XTAL_32K_P) and pin22 (XTAL_32K_N) can be used as general
D GPIOs.

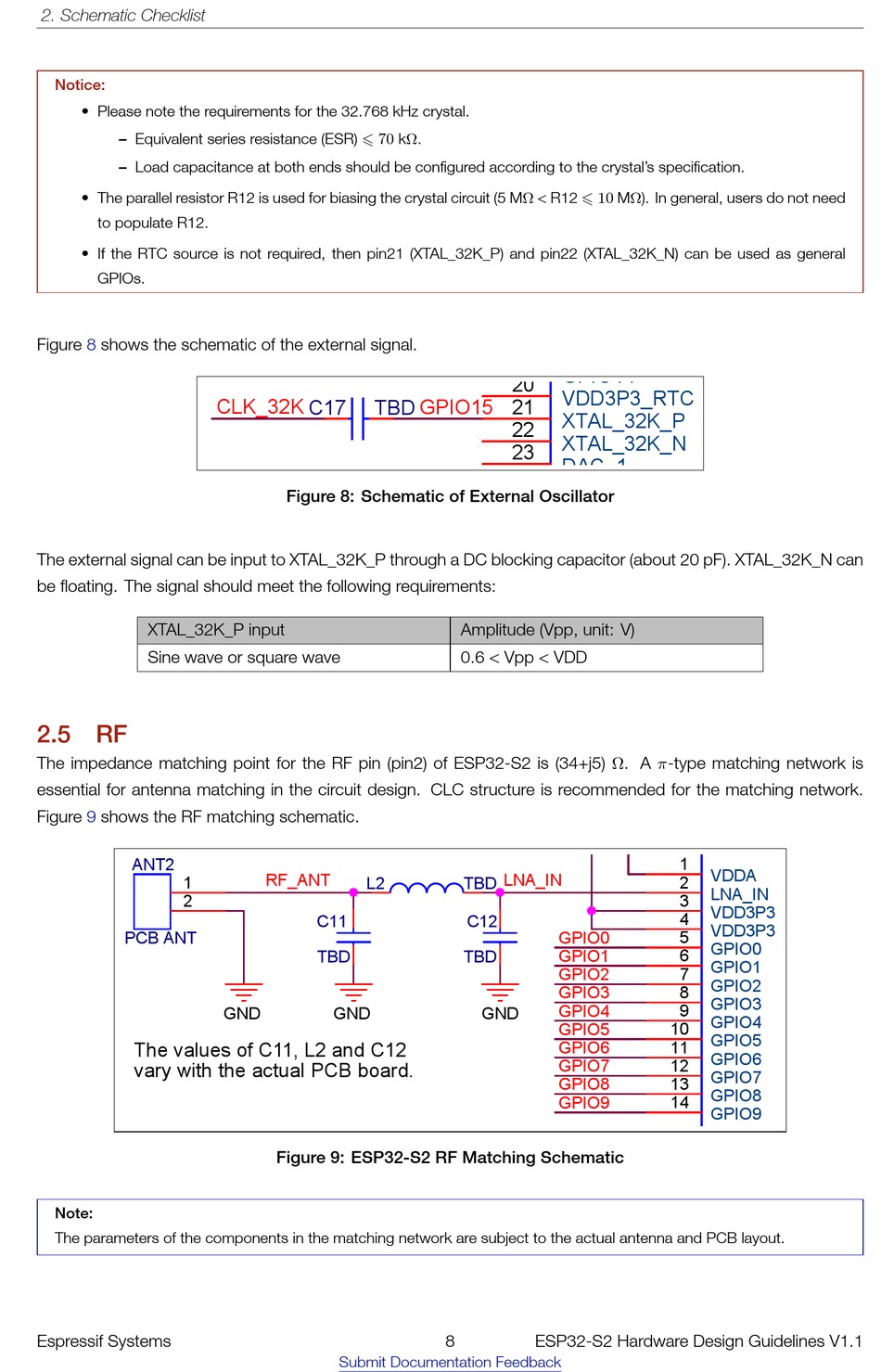

Figure 8 shows the schematic of the external signal.
VDD33
VDD33
The external signal can be input to XTAL_32K_P through a DC blocking capacitor (about 20 pF). XTAL_32K_N can
be floating. The signal should meet the following requirements:
XTAL_32K_P input
C
Sine wave or square wave
VDD33
2.5 RF
C6
The impedance matching point for the RF pin (pin2) of ESP32-S2 is (34+j5) Ω. A π-type matching network is
10uF
essential for antenna matching in the circuit design. CLC structure is recommended for the matching network.
Figure 9 shows the RF matching schematic.
GND
ANT2
1
2
PCB ANT
B
The values of C11, L2 and C12
vary with the actual PCB board.
Note:
The parameters of the components in the matching network are subject to the actual antenna and PCB layout.
