2. Schematic Checklist
• Touch Sensor
2.1 Power Supply
4
For further details of using the power supply pins, please refer to Section Power Scheme in
2.1.1 Digital Power Supply
Pin27 and pin45 are the power supply pins for RTC IO and CPU IO, in a voltage range of 3.0 V
3.6 V, respectively. We recommend adding extra 0.1 µF capacitors close to each digital power supply pin.
VDD_SPI can work as the power supply for the external device at either 1.8 V (when GPIO45 is 1 during boot),
or 3.3 V (when GPIO45 is 0 and at default state during boot). We recommend adding extra 0.1 µF and 1 µF
capacitors close to VDD_SPI.
• When VDD_SPI operates at 1.8 V, it can be generated from ESP32-S2's internal LDO. The maximum current
this LDO can offer is 40 mA, and the output voltage range is 1.8 V
• When VDD_SPI operates at 3.3 V, it is driven directly by VDD3P3_RTC_IO through a 5 Ω resistor, therefore,
there will be some voltage drop from VDD3P3_RTC_IO.
VDD_SPI can also be driven by an external power supply.

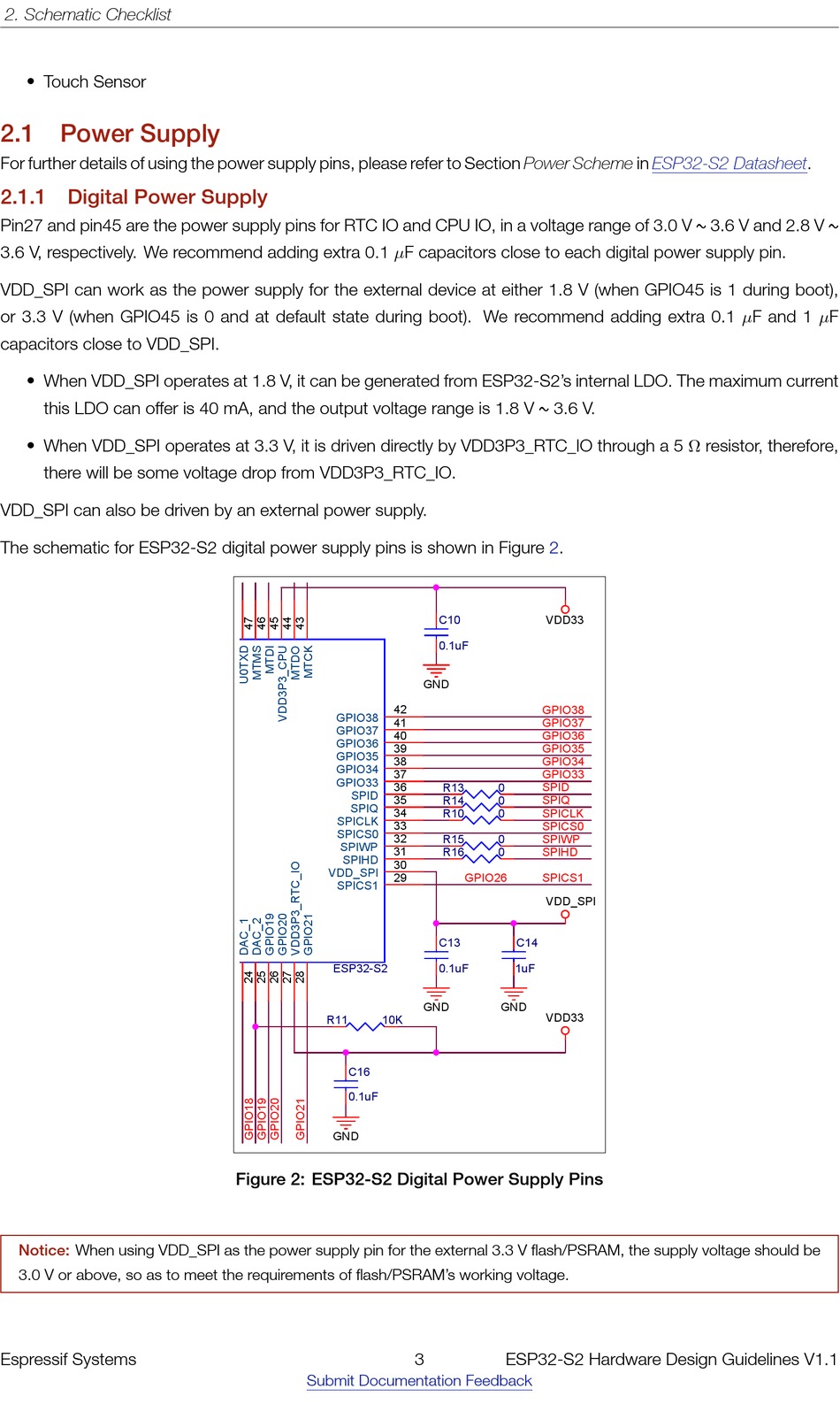

The schematic for ESP32-S2 digital power supply pins is shown in Figure 2.
GND
1
VDDA
2
LNA_IN
3
VDD3P3
4
VDD3P3
GPIO0
5
GPIO0
6
GPIO1
GPIO1
GPIO2
7
GPIO2
GPIO3
8
GPIO3
GPIO4
9
GPIO4
GPIO5
10
GPIO5
11
GPIO6
GPIO6
GPIO7
12
GPIO7
GPIO8
13
GPIO8
GPIO9
14
GPIO9
U1
VDD33
C15
0.1uF
GND
4
Notice:
When using VDD_SPI as the power supply pin for the external 3.3 V flash/PSRAM, the supply voltage should be
3.0 V or above, so as to meet the requirements of flash/PSRAM's working voltage.
