1.888.610.7664
DICKSON

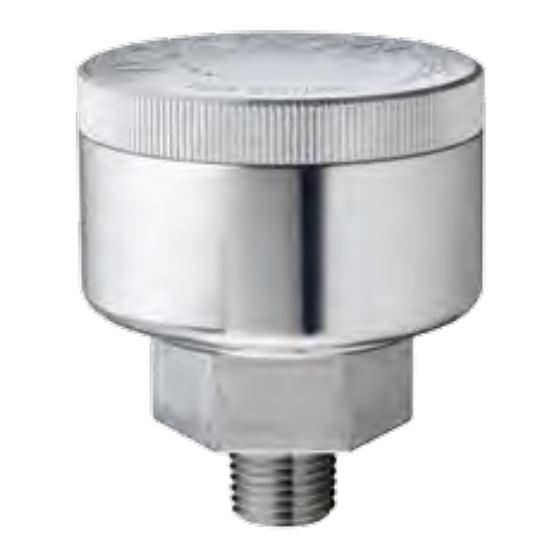

PR100/PR300/PR500
Pressure Logger Operation
Contents:
Product Applications and Useful Features
DicksonWare Software Specifications
Troubleshooting & Battery
Warranty / Factory Service & Returns
Rev. 06/08
www.calcert.com
15
10
20
5
25
0
30
sales@calcert.com
Advertisement
Table of Contents
Related Manuals for Dickson PR100
Summary of Contents for Dickson PR100

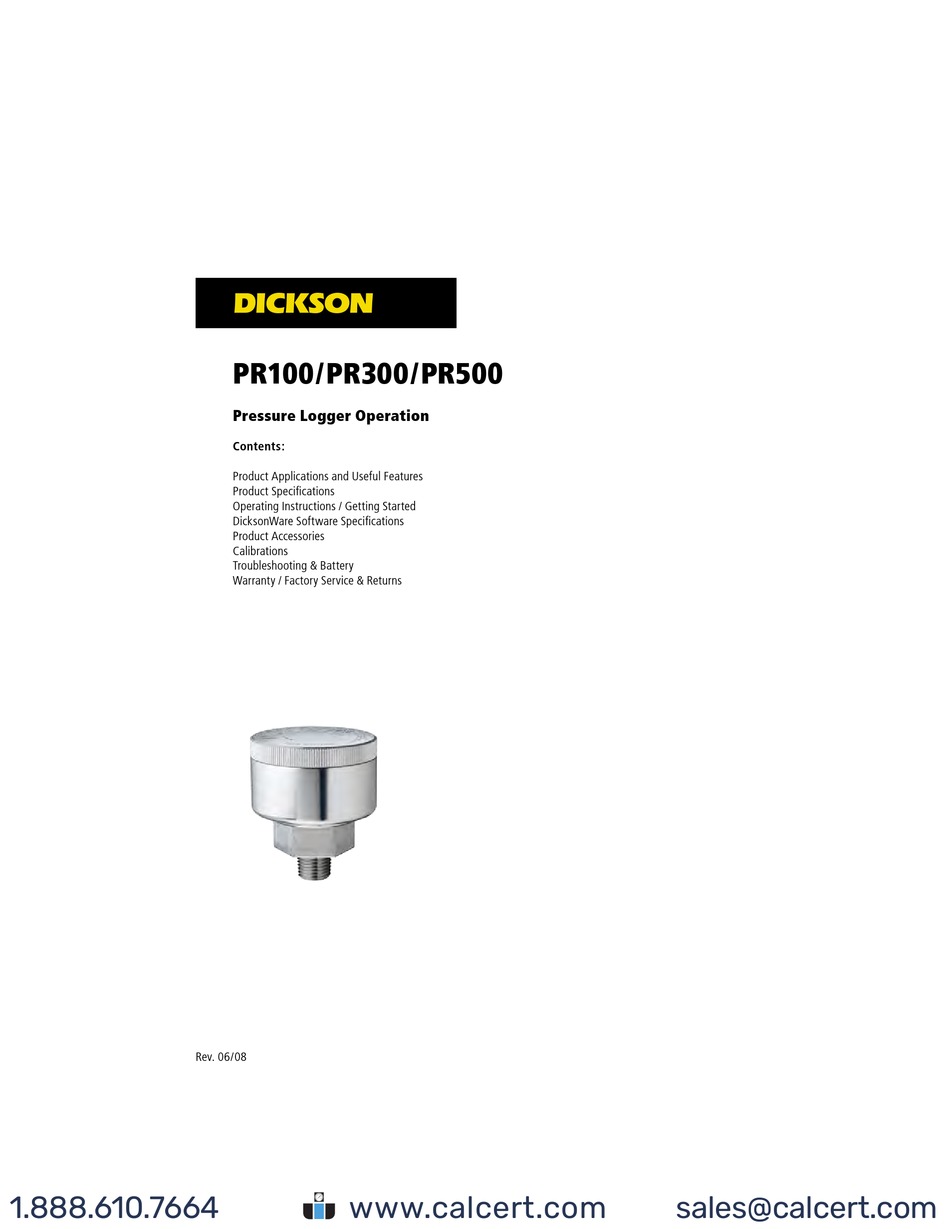

- Page 1 DICKSON PR100/PR300/PR500 Pressure Logger Operation Contents: Product Applications and Useful Features Product Specifications Operating Instructions / Getting Started DicksonWare Software Specifications Product Accessories Calibrations Troubleshooting & Battery Warranty / Factory Service & Returns Rev. 06/08 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 2 • Helps pinpoint causes of drops, surges and back flows • features easy to use DicksonWare™ software Product Specifications Pressure Range: PR100: 0 - 100 PSI , PR300: 0 - 300 PSI, PR500: 0 - 500 PSI Accuracy: ±1% of full scale Ambient Operating +32 to +122˚F (0 to +50˚C) 0 to 100% RH...
- Page 3 Getting Started • Install the DicksonWare ™ Software. • Unscrew the logger cover, connect the cable (supplied with the software) to the logger and to a working serial port on your computer. If the port is not COM2, refer to “No Communication ” in the Troubleshooting section below.
- Page 4 • Microsoft Windows® compatible • Allows for simple viewing and zooming of logged data • Easy set-up of Dickson Data Loggers including: • User selectable sample intervals from 10 seconds to 24 hours • Display temperature in °C or °F •...
- Page 5 (a high, medium, and low) on new units only. • N400 - Deluxe A2LA Accredited NIST Traceable Calibration 3-Point: ISO Guide 25/A2LA Documentation of 3 pre-selected points of as found data before and after calibration for Dickson temperature and/or humidity instrumentation on new units only. •...
- Page 6 Low Battery Warning when replacement is needed. The battery is user replaceable and MUST be replaced with one of the same type. A Tadiran TL-2155/SBP or equivalent is required. Dickson sells replacement batteries. IMPORTANT: Be sure to observe correct polarity when installing the new battery.
