Cypress CY3652 Manual

Installation Reference
For installation and operating instructions for the USB
Development board hardware and software see the fol-
lowing documentation:
1. To install and operate the USB Monitor/Debug soft-
ware see the USB Development System Software
Guide.
2. To install and operate the CYASM assembler see
the CYASM Assembler User's Guide.
3. To connect, configure and operate the Development
Board see the CY3652 USB Development System
User's Guide.
Kit Contents
• USB development board (in an anti-static bag).
• Wall transformer power supply
• USB cable
• RS-232 serial cable
• RS-232 9-pin to 25-pin adapter
• USB Monitor/Debug Software (3 disks)
• CYASM Assembler software and example applica-
tion software (1 disk)
• CYASM Assembler User's Guide
• USB Development System Software Guide
• USB Development System User's Guide
• Quick Start User's Guide (this document)
• Registration Card
System Requirements
In order to operate the USB Development Board you
must have a PC with the following components:
• 3.5 inch diskette drive
• Serial port
• USB ports
• Windows95™ OSR2.1 or later operating system
The Selftest (EPROM) program
The included EPROM program is meant to test the func-
tionality of the development board and USB host com-
puter. This program is referred to as "selftest" because it
should run without any intervention when the develop-
Cypress Semiconductor Corp.
4/29/98
P R
LEASE EAD
3901 North First Street, San Jose, CA 95134
- 1 -
CY3652 USB Development Kit
M F
E IRST
ment board USB cable is plugged into the host com-
puter. This program enumerates as a USB mouse and
moves the cursor to write out "USB" on the screen.
Procedure to run Selftest
1. The USB Host needs to be running Windows98™
Beta 3. It has been tested with build number
4.10.1650.
2. Install the Windows 98 Beta 3 CD on the CD drive
so that USB drivers can be loaded.
3. Turn the mouse pointer trails on and set the "pointer
speed" to the midpoint setting between "fast" and
"slow", otherwise the "USB" will wander across
the screen. Set the pointer trail length to the longest
possible configuration. These features are accessi-
ble through the "mouse" applet in the Windows
control panel.

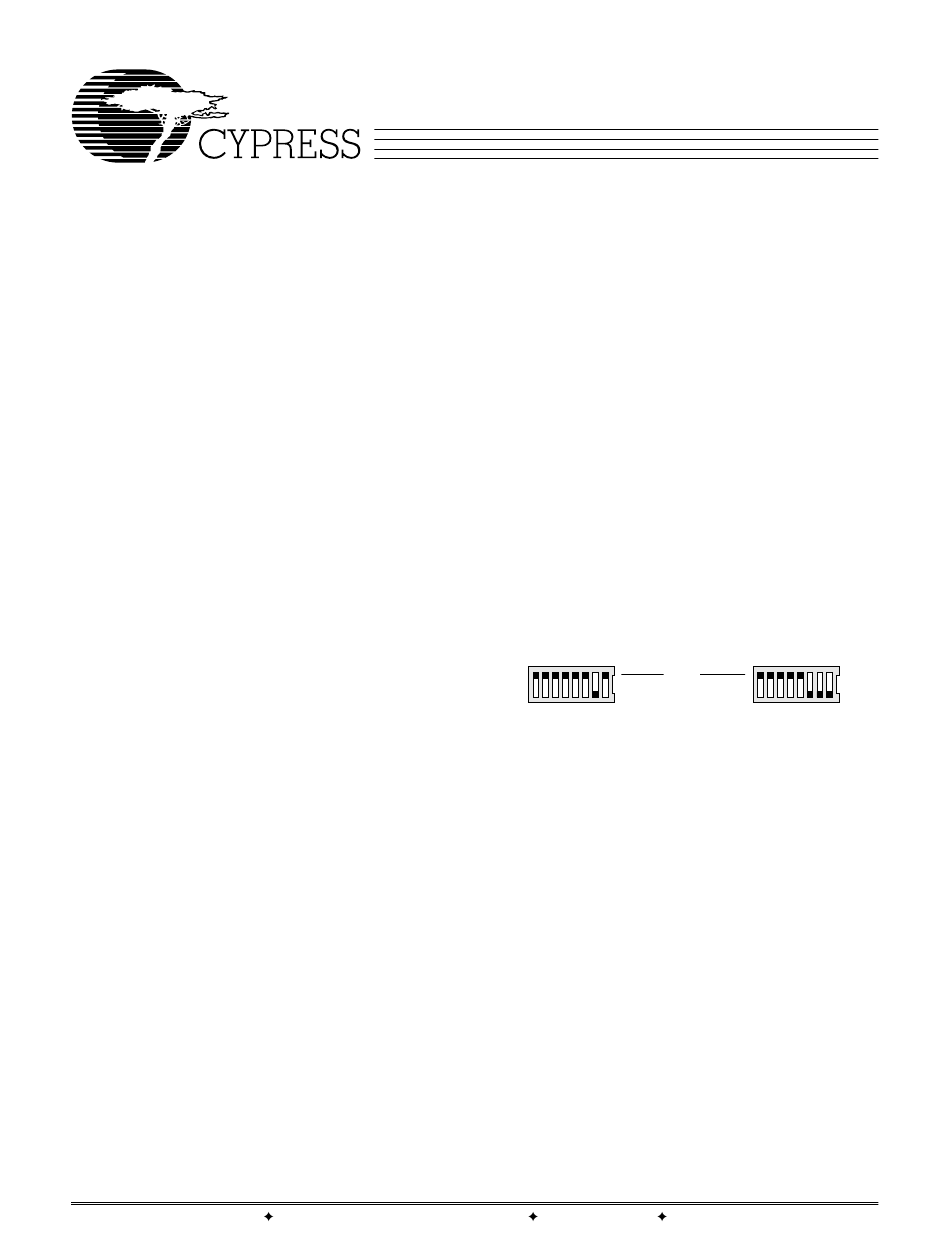

4. The switches on the USB development board
should have the following settings:
S1
8 7 6 5 4 3 2 1
Note: S1-3 open enables the USB Bus Reset.
5. Apply power to the USB development board, the
green LED indicates power on.
6. Plug the USB cable into the host and then plug the
other end into the development board.
7. When the cable is plugged into the development
board an hourglass hold appears momentarily, fol-
lowed by a window that displays "NEW HARD-
WARE FOUND". The window will then disappear,
and the mouse cursor should move in a pattern to
spell out "USB" on the screen.
If the Selftest program fails to run...
1. Check the settings of switches shown above.
2. Check the cables.
