CY3642 PROGRAMMING KIT
The CY3642 Programming Kit enables quick and easy Programming of Cypress's
High Performance Programmable Oscillator (CY29421, CY29422)
• Download and install the latest kit software onto
your PC from www.cypress.com/CY364X
• Connect the board to your PC using the provided
USB cable
• The Status LED (Green) turns ON after the kit
driver enumeration is complete
QUICK START GUIDE
All manuals and user guides at all-guides.com

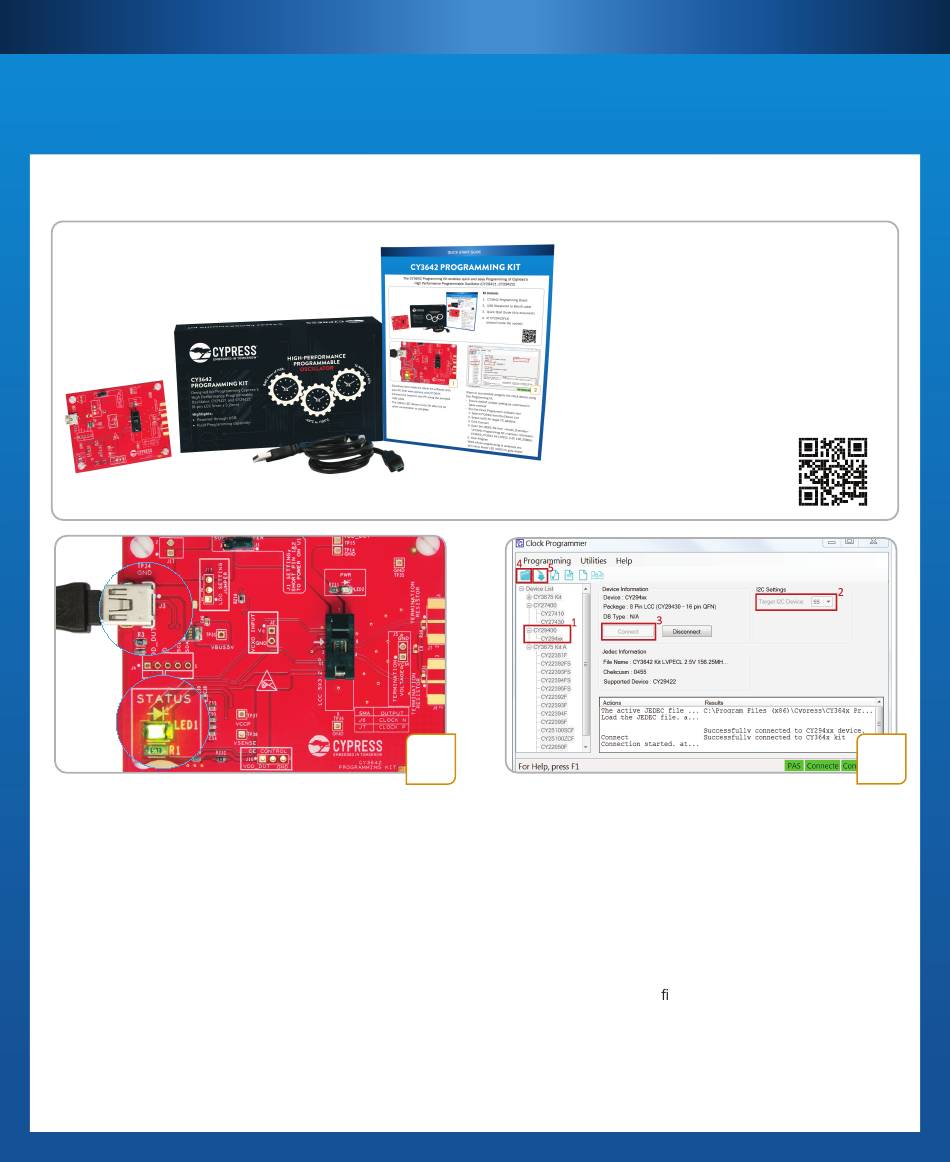

Kit Contents:

1. CY3642 Programming Board
2. USB Standard-A to Mini-B cable
3. Quick Start Guide (this document)
4. IC CY29422FLXI
1
Steps to successfully program the clock device using
this Programming kit.
• Ensure default Jumper setting as mentioned in
Table overleaf
• Run the Clock Programmer software tool
1. Select CY294xx from the Device List
2. Select 0x55 for target I
3. Click Connect
4. Open the JEDEC le from <Install_Directory>
\CY364x Programming Kit\<version>\Firmware\
CY3642\CY3642 Kit LVPECL 2.5V 156.25MHz)
5. Click Program
• While eFuse programming is underway you
will notice Power LED (LED2) to glow Amber
(placed inside the socket)
C address
