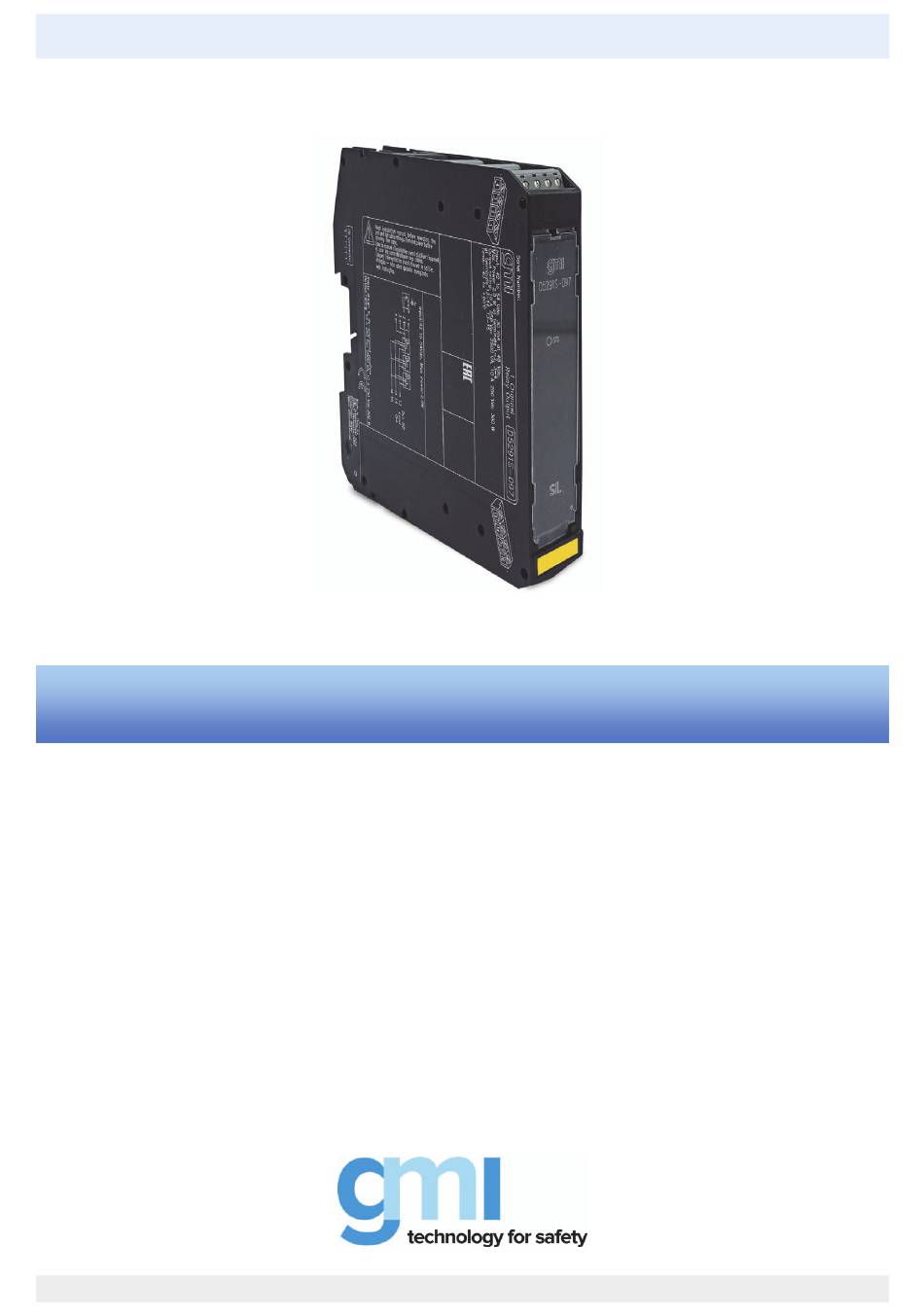

- Page 1 10 A SIL 3 Relay Out Module for ND Load with NE Relay condition (48 Vdc coil voltage) DIN-Rail & Term. Board, Model D5291S-097 D5291-097 - 10 A SIL 3 Relay Out Module for ND Load with NE Relay condition (48 Vdc coil voltage)

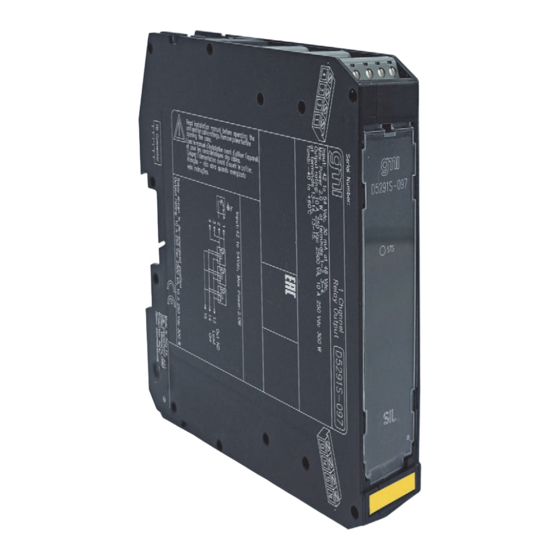

- Page 2 Characteristics General Description: The single channel Relay Output, D5291S-097 is a relay module suitable for the switching of safety related circuits, up to SIL 3 level according to IEC 61508:2010 Ed.2 for high risk industries. It provides isolation between input and output contacts.
- Page 3 Ordering Information DIN-Rail accessories: Cover and fix MCHP196 Model: D5291S-097 Front Panel and Features SIL 3 (low demand mode of operation), for ND load with NE relay condition (terminals 13-15), according to IEC 61508:2010 Ed. 2 with Tproof = 14 / 20 yrs (≤10% / >10 % of total SIF) and PFDavg (1 year) 7.02 E-06, SFF 98.91%.
- Page 4 Function Diagram SAFE AREA MODEL D5291S-097 Out Service Load 13-14 Out ND SIL3 Load 13-15 Termination board connector Relay contact shown in de-energized position Terminal 13-15 is closed, Terminal 13-14 is open. SIL3 Safety Function for ND load (energized in fail safe state) is available at terminal blocks 13-15;...
- Page 5 Warning D5291S-097 is an electrical apparatus installed into standard EN50022 T35 DIN-Rail located in Safe Area within the specified operating temperature limits Tamb - 40 to +60 °C. D5291S-097 must be installed, operated and maintained only by qualified personnel, in accordance to the relevant national/international installation standards, following the established installation rules.
