Specification:
Features:
2.5m
Installation considerations:
1 Mount luminaire on solid surface.
2 Optimal mounting height is 1.8 to 2.5 meters (6 to 8ft) above ground level.
3 Before selecting mounting location please note that movement across the sensor is more
effective than movement directly toward or away from the sensor
4 To avoid nuisance triggering, the sensor should be directed away from heat sources.
5 Do not aim the sensor towards the sun or reflective surfaces
1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household
waste (WEEE marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a
collection centre for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are
purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly.
It is important that it is separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal
household waste, but should be disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 1 210713

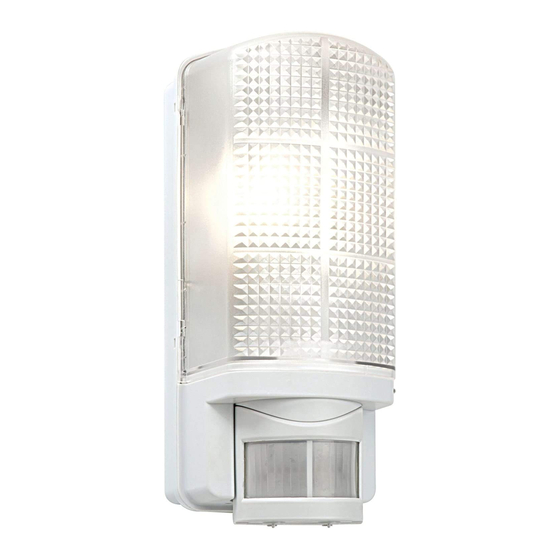

60W BULKHEAD WITH PIR,
WHITE/BLACK
R60BHPIR-01, R60BHPIR-04
Please read instruction before commencing installation and retain for future
reference.
The bulkhead light incorporates a PIR (Passive Infra Red) sensing device which
continuously scans a preset operating zone and immediately switches the lamp on
when it detects movement in that area.
Supply voltage:
Electrical Protection:
Output load:
Dimensions(mm):
Weight:
Detection range:
Duration time:
LUX control level:
IP rating:
Material:
Cap type:
Fuse:
Warranty:
4m
8m
12m
Information for the Product user
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
220-240V~50/60Hz
Calss I
Max. 60 Watt for incandescent
275(L) X 115(W) X 115(H)
0.6Kg
Approx.120º (horizontal), Max. 12 meters
adjustable and sensitivity adjustable
from (10±5) seconds to (4±1) minutes adjustable
from daylight to night adjustable
44
PC
E27
6.3A/250VAC
2 year
120
o
ISO 9001:2008
Q U A L I T Y A S S U R E D C O M PA N Y
Page 1
