Robus R888 Instructions

Specification:

Installation:

1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste
(WEEE marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection
centre for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a
replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is
important that it is separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household
waste, but should be disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 1 270710

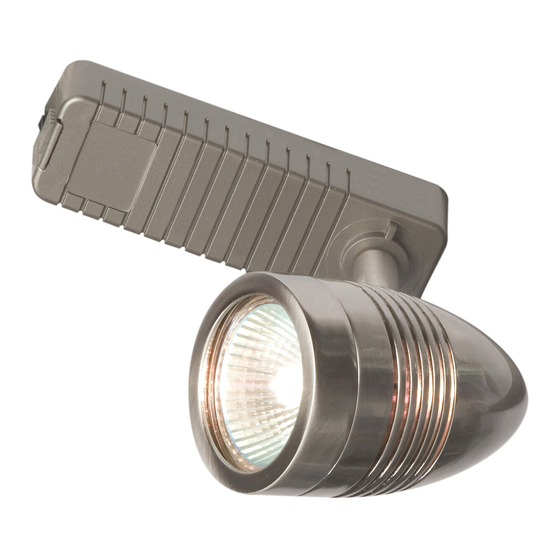

Track Spotlights for 12V
MR16 Lamps
R888,R816,R818
Please read instruction before commencing installation
and retain for future reference.
excl.
Protection against electric shock: ClassI (Track must be earthed!)
Lamp type:
Dimensions:
Temperature range:
Supply:
Suitable for mounting on normally flammable surface
Minimum distance from illuminated object is 0.5 metre
Complies with EN60598 (BS4533)
! Electrical products can cause death or injury, or damage to property. If in
any doubt about the installation or use of this product, consult a competent
electrician.
1 Ensure mains supply is switched off.
2 Fix track with countersunk screws to mounting.
3 Fit live end adaptor (RLE-01/04) and dead end to track end, wiring live end to a
fused supply.
4 To attach luminaires to the track, offer it up at 90° to the track and rotate until
parallel to the track and the lock tab engages. Note: the track is not symmetric.
There are two conductors on one side, and one on the other. Check alignment
of luminaire before rotating into position.
5 Lamp installation and replacement:
! Ensure mains supply is off. ! When operating luminaire is too hot to touch.
Switch off and allow to cool before undertaking any maintenance work.
Remove the front ring by rotating it a ½ turn. Insert lamp and replace ring.

Information for the Product user

Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
12V MR16 max. 50W dichroic
Overall depth 150mm
5°C < ta < 30°C
230V/240V (from mains track).
ISO 9001:2008
