Robus SONIC4 RSN15040MW-04 Instruction Manual

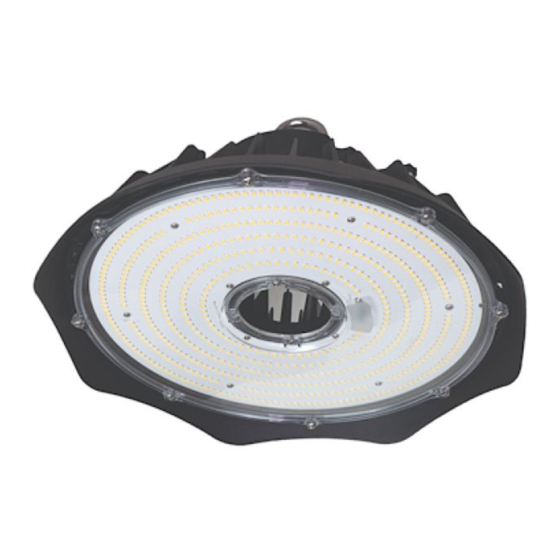

SONIC4 150W LED HIGHBAY, IP65, 130LM/W, WITH MW, 4000K
RSN15040MW-04
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. The Installation must be carried out by a qualified electrician.
Product technical information and specification may change over time without prior notification. For the latest technical information
please visit our web site www.robus.com or robusdirect.com
-25°C < Ta < +45°C, 220-240V ~ 50/60Hz, Class I, IP65
MW Detection radius: 1m-8m
Mounting height: Max 12m
Installation
1. Ensure mains supply is switched off before commencing work.
2. Choose suitable location for mounting the luminaire.
3. Ensure that the area directly below is not obstructed by pipes, racking or structural building supports.
4. If required change accessory as per list (see pictogram 2 and 3).
Suspension Mounting (see pictogram 4):
5. Screw eye hook into the hole on top of luminaire and insert screw to fix the hook so it is secure.
6. Suspend the luminaire on the ceiling using a suitable hook.
Surface Mounting (see pictogram 5):
7. Attach bracket (RSNB4-S) to the luminaire.
8. Mark appropriate fixing hole positions on the surface, check location buried cables, pipes and other building services before drilling.
9. Drill holes for wall bolts, attach fitting to the surface and ensure it is secure.
10. Adjust fitting to desired angle and tighten screws, ensure it is secure.
11. The luminaire is supplied with 1m of rubber cable and a SWIFT connector. Connect AC power supply cable to the terminals of SWIFT
connector. Brown/ Live to LS, Neutral/ Blue to N and Earth to Green/ Yellow. The connector is supplied with 4 terminals. The 4th LP terminal
can be used as common or as permanent live.
Note: Avoid resting luminaire on the MW to not damage it. The luminaire must be disconnected before carrying out any insulation resistance
testing. Ensure when working at height that proper care and procedures are employed along with suitable equipment used.
Accessories: Wire guard (pictogram 2), Lens diffuser( pictogram3) and surface mounting brackets ( pictogram 5).
RSNB4-S: Surface mounting brackets for 100W and 150W highbay
RSNL60-M: 60 Degree lens accessory for 150W highbay
RSNL90-M: 90 Degree lens accessory for 150W highbay
RSNWG4-M: Wire guard accessory for 150W highbay
Accessories purchased separately.

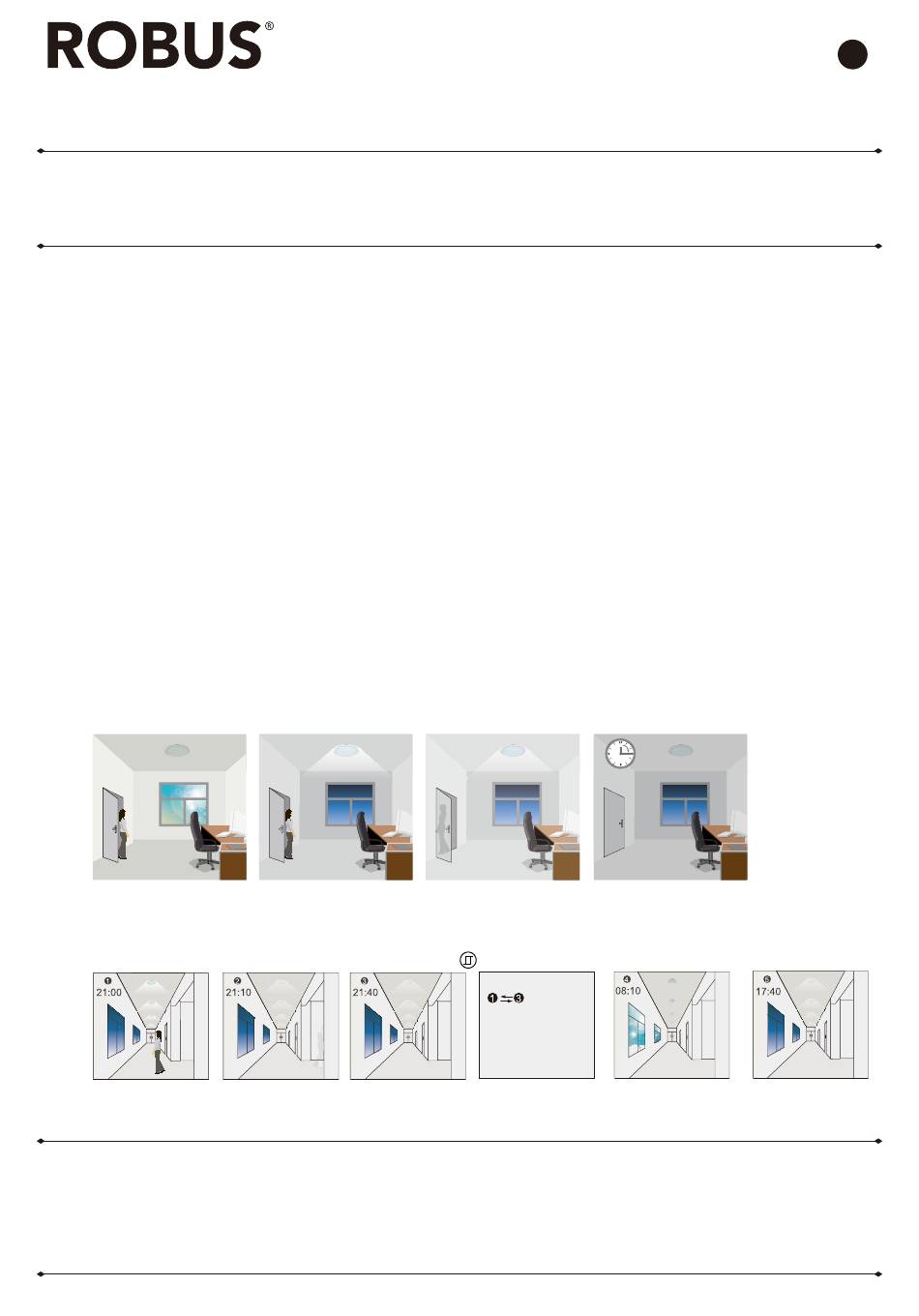

Corridor function

Achieve two scenes and more parameters as per below when operate the remote control of RSNMW-RC to control MW.
（1）
With suffcient natural light, the
light does not switch on when
presence is detected.
The daylight sensor function should be started up by pressing the
（2）
The light switches on at
100% when presence is
detected.

Information for the Product user:

1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE marked with crossed out wheelie bin
symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre for waste electrical equipment or a Civic
Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is important that it is separated from normal
household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household waste, but should be disposed of
according to local WEEE regulations
Issue 1 030221
Note:
With insuffcient natural light, the
sensor switches on the light
automatically when presence is
detected.
The light dims to standy-by The light remains in
level after the hold-time. dimming level at night.
Factory default setting: 100% sensitivity, Hold time 5min,
Daylight sensor: Sun, Dimming level 30%, Dimming time:30min
Use the remote control of RSNMW-RC to set the parameters
and models you desired such as the following corridor function.
( Check the instruction manual of RSNMW-RC ).
Market Surveillance: LS Code of energy efficiency Class D.
RSN15040MW-LS
Remove screws attaching driver.
Disconnect driver (SCG) from heat sink and LEDs (LS).
Light switches off automatically
After hold-time, the light dims to
after the stand-by period elapses.
stand-by level if the surrounding
natural light is below the daylight
threshold.
button on the remote control of RSNMW-RC to achieve this scene.
Goes in cycle at night - - -
100% on when presence is
detected, and dims to 10%
in long time absence
When the natural light level The light automatically turns
exceeds setpoint Lux in the PIR, on at 10% when natural light
the light will turn off even if when is insuffcient (no motion).
the space is occupied.
