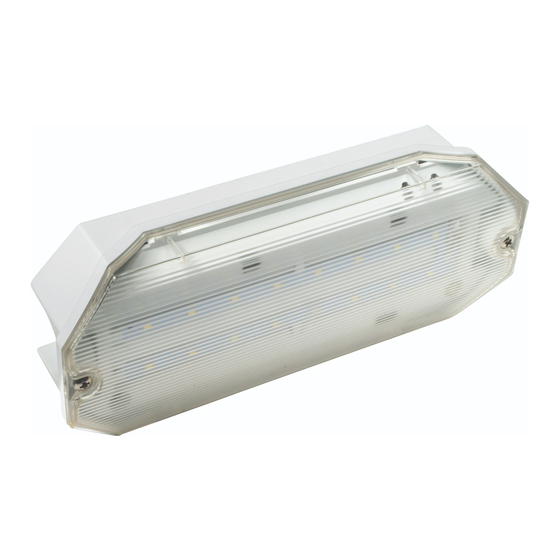

Robus SAPPHIRE RSI4LST-01 Instruction Manual

SAPPHIRE 4W EMERGENCY BULKHEAD SELF TEST IP65 WHITE C/W LEGENDS
RSI4LST-01
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property.
The luminaire must be disconnected before carrying out any insulation resistance testing. Product technical information and specification may change over time
without prior notification. For the latest technical information please visit our web site www.robus.com or robusdirect.com
0°C < Ta < +40°C, 220V – 240V ~ 50/60Hz, Class II, IP65, battery warranty 3 years
Luminaire is non-dimmable.
Suitable for mounting on a normally flammable surface.
Installation
1. Ensure mains supply is switched off before commencing installation.
2. Open front cover by removing screws.
3. Drill three mounting holes and the cables holes on the base of fitting.
4. Mark appropriated fixing points on the wall, ensure that the holes do not impinge on joists, pipe work, cables or other building services.
5. Insert wall plug and then fix the base onto the wall using screws provided.
6. Feed power cables through knockout, and connect to supply terminals: Brown to SL, Blue to N and Green/Yellow to E. For fitting always on, link terminal SL to terminal PL.
For fitting controlled by switch, connect switched live wire to terminal SL and permanent live to PL.
Note: a: Use IP Gland on the cable knockout in order to ensure waterproof. b: Cable size: fit with 4*1.5mm. c: Don't recommend loop in/out. d: Wired through one end
which is closest to the PCB terminal block. e: The fitting works as non-maintained if SL terminal not connected.
7. Write installation date on the battery and connect battery to PCB.
8. Refit the front cover.
9. Remove the protected film to reveal adhesive legend, and label it onto the diffuser. Please ensure the legend cannot wrinkle on the diffuser.
Market Surveillance:
LS Code of energy efficiency Class D. YGBH03-1BT
Remove front screws and take off diffuser. Using soldering iron disconnect LED plate.
The light source contained in the luminaire shall only be replaced by a qualified person.
Self-Test
This is a maintained emergency fitting, when main power is connected, the green charging LED should come on and indicating the correct battery has started, the fitting
should come on. When main power is lost, the fitting will go into emergency mode, fitting will still be on. Press test button once, LEDs will come on for a short period of time
in the emergency mode. Testing and inspection must be in accordance with local codes of practice.
1. Green LED indicator comes on: Normal charging mode
2. 1-Month Self-Test: Test duration 10s
Manual 1-Month Test: Hold and press test button for 3s and then release, there will be 2 beeps
3. 6-month Self-Test: Test duration 3 hours
Manual 6-month Test: Press and hold test button for 6s and then release, you will hear 3 beeps
LED Indicators
4. Red LED flashes (unit will beep every 45s): Battery fault or battery failure AND emergency LED failure
5. Yellow LED flashes, (unit will beep every 45s): Emergency LED failure
6. Clear memory and re-set test schedule: Disconnect supply to Live terminal, fitting will go into emergency mode. Press in and hold the test button for more than10s and
then release, the emergency LED will then go out. New schedule will start when supply to fitting is connected.
After installation, the battery will charge for 24 hours. The self-test function will perform a 3-hour test within the next 24 hours. After the initial test, the fitting will enter 1-Month
Test and 6-Month Test schedules.
1. Daily check that charge indicator LED is working.
2. Monthly check: The status of LED indicator and emergency battery discharge.
3. 6-Month and one-year check: The self-test operation is working, that the LED indicators the Emergency LEDs come on and last for a minimum 3 hours
4. Complete record sheet on installation and retain in maintenance file.
5. Update file with ongoing test records for inspection by fire officer or other duly authorised person.
Start: 24-Hour
1-Month Test
Charge
10s discharge
Emergency battery
During test, all LED
3-hour discharge
indicators are off.
within the next 24hour
After the test
green LED back on
Information for the Product user:
1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE marked with crossed
out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre for waste electrical
equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is important that it is separated
from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household waste, but should be
disposed of according to local WEEE regulations
Issue 1 070122
Note:
2-Month Test
10s discharge
30th day 30th day
Emergency battery
During test, all LED
indicators are off.
After the test
green LED back on
The Installation must be carried out by a qualified
3-Month Test 4-Month Test
10s discharge 10s discharge
30th day 30th day
Emergency battery Emergency battery
During test, all LED During test, all LED
indicators are off. indicators are off.
After the test After the test
green LED back on green LED back on
INSTRUCTION MANUAL
electrician.
6-Month Test
5-Month Test
( Half a Year )
10s discharge 3hour discharge
30th day 30th day
Emergency battery Emergency battery
During test, all LED During test, all LED
indicators are off. indicators are off.
After the test After the test
green LED back on green LED back on
EN
Page 1
