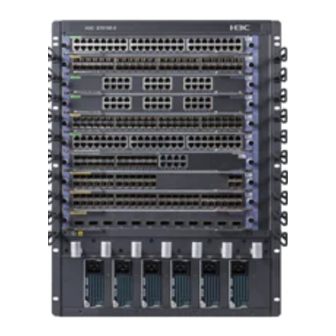

H3C S7500E Series Ethernet Switches
OAA
Command Reference
Hangzhou H3C Technologies Co., Ltd.
http://www.h3c.com
Software version: S7500E Series--Release 6626 and Later
S7508E-X------------Release 6826 and Later
Document version: 20111130-C-1.01

Advertisement

Table of Contents
loading

Related Manuals for H3C S7500E Series

Summary of Contents for H3C S7500E Series

  • Page 1 H3C S7500E Series Ethernet Switches Command Reference Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Software version: S7500E Series--Release 6626 and Later S7508E-X------------Release 6826 and Later Document version: 20111130-C-1.01...
  • Page 2 SecPro, SecPoint, SecEngine, SecPath, Comware, Secware, Storware, NQA, VVG, V G, V G, PSPT, XGbus, N-Bus, TiGem, InnoVision and HUASAN are trademarks of Hangzhou H3C Technologies Co., Ltd. All other trademarks that may be mentioned in this manual are the property of their respective owners Notice The information in this document is subject to change without notice.
  • Page 3 Preface The H3C S7500E documentation set includes 12 command references, which describe the commands and command syntax options available for the H3C S7500E Release 6620 & 6630 Series and the H3C S7508E-X Release 6820 & 6830 Series. The OAA Command Reference describes OAA configuration commands.
  • Page 4 Convention Description A line that starts with a pound (#) sign is comments. GUI conventions Convention Description Window names, button names, field names, and menu items are in Boldface. For Boldface example, the New User window appears; click OK. > Multi-level menus are separated by angle brackets.
  • Page 5 Describe card specifications, features, and standards. Provides a complete guide to hardware installation Installation guide and hardware specifications. H3C N68 Cabinet Guides you through installing and remodeling H3C Installation and Remodel N68 cabinets. Introduction H3C Pluggable SFP Guides you through installing SFP/SFP+/XFP [SFP+][XFP] Transceiver transceiver modules.
  • Page 6 Required software version Pluggable modules supported by the card Obtaining documentation You can access the most up-to-date H3C product documentation on the World Wide Web at http://www.h3c.com. Click the links on the top navigation bar to obtain different categories of product documentation: [Technical Support &...

  • Page 7: Table Of Contents

    Contents OAP card configuration commands ··························································································································· 1 oap connect ······························································································································································1 oap reboot ································································································································································1 ACFP configuration commands··································································································································· 3 acfp server enable····················································································································································3 display acfp client-info ·············································································································································3 display acfp policy-info············································································································································4 display acfp rule-info················································································································································6 display acfp server-info············································································································································9 ACSEI configuration commands ·······························································································································11 acsei client close···················································································································································· 11 acsei client reboot ·················································································································································...

  • Page 8: Oap Card Configuration Commands

    OAP card configuration commands oap connect Syntax In standalone mode: oap connect slot slot-number In IRF mode: oap connect chassis chassis-number slot slot-number View User view Default level 1: Monitor level Parameters slot slot-number: Specifies the number of the slot where an OAP card resides. (In standalone mode) chassis chassis-number slot slot-number: Specifies a card on an IRF member switch.
  • Page 9 oap reboot slot slot-number In IRF mode: oap reboot chassis chassis-number slot slot-number View User view Default level 2: System level Parameters slot slot-number: Specifies the number of the slot where an OAP system resides. (In standalone mode) chassis chassis-number slot slot-number: Specifies a card on an IRF member switch. The chassis-number argument refers to the ID of the IRF member switch, and the slot-number argument refers to the number of the slot where the card resides.

  • Page 10: Acfp Configuration Commands

    ACFP configuration commands acfp server enable Syntax acfp server enable undo acfp server enable View System view Default level 2: System level Parameters None Description Use the acfp server enable command to enable the ACFP server. Use the undo acfp server enable command to disable the ACFP server. By default, the ACFP server is disabled.

  • Page 11: Display Acfp Policy-Info

    |: Filters command output by specifying a regular expression. For more information about regular expressions, see Fundamentals Configuration Guide. begin: Displays the first line that matches the specified regular expression and all lines that follow. exclude: Displays all lines that do not match the specified regular expression. include: Displays all lines that match the specified regular expression.
  • Page 12 View Any view Default level 1: Monitor level Parameters client client-id: Displays the policy sent by the specified ACFP client, where client-id is the ACFP client ID, in the range of 1 to 2147483647. policy-index: Policy index, in the range of 1 to 2147483647. dest-interface interface-type interface-number: Displays all the policies that use the specified interface (destination interface) for connecting to the ACFP client, where interface-type interface-number is the interface type and interface number.

  • Page 13: Display Acfp Rule-Info

    Rule-Num: ContextID: Exist-Time: 61500 Life-Time: 2147483647(s) Start-Time: 00:00:00 End-Time: 24:00:00 Admin-Status: enable Effect-Status: active DstIfFailAction: delete Priority: In-Interface: GigabitEthernet1/0/1 Out-Interface: GigabitEthernet1/0/2 Dest-Interface: Ten-GigabitEthernet3/0/1 Table 2 Output description Field Description ACFP policy total number Total number of ACFP policies ClientID Client ID, index of client list Policy-Index Policy index Rule-Num...
  • Page 14 Default level 1: Monitor level Parameters in-interface: Displays ACFP rule information in order of inbound interface. The ACFP rule information which does not include the inbound interface is not displayed. out-interface: Displays ACFP rule information in order of outbound interface. The ACFP rule information which does not include the outbound interface is not displayed.
  • Page 15 Table 3 Output description Field Description In-Interface Inbound interface of the packet ACFP rule total number Total number of ACFP rules ClientID Client ID, index of client list Policy-Index Policy index Rule-Index Rule index SMAC Source MAC address DMAC Destination MAC address StartVLAN Start VLAN of the source VLAN EndVLAN...

  • Page 16: Display Acfp Server-Info

    Field Description Action, including: • permit • deny Action • mirror • redirect • rate: rate limit Status Rule status: active or inactive OperationStatus Rule application status: succeeded or failed display acfp server-info Syntax display acfp server-info [ | { begin | exclude | include } regular-expression ] View Any view Default level...
  • Page 17 Field Description Maximum expiration time (in seconds) of the collaboration policy supported Max Life-Time by the ACFP server PersistentRules Whether the ACFP server supports permanent collaboration rules. Context ID types currently supported by the ACFP server: • no-context: No context ID is carried. •...

  • Page 18: Acsei Configuration Commands

    ACSEI configuration commands acsei client close Syntax acsei client close client-id View ACSEI server view Default level 2: System level Parameters client-id: ID of the ACSEI client to be closed. An ACSEI client ID is assigned by the ACSEI server, which ranges from 1 to 10.

  • Page 19: Acsei Server

    <Sysname> system-view [Sysname] acsei server [Sysname-acsei-server] acsei client reboot 1 acsei server Syntax acsei server View System view Default level 2: System level Parameters None Description Use the acsei server command to enter ACSEI server view. Examples # Enter ACSEI server view. <Sysname>...

  • Page 20: Acsei Timer Clock-Sync

    [Sysname] acsei server enable acsei timer clock-sync Syntax acsei timer clock-sync minutes undo acsei timer clock-sync View ACSEI server view Default level 2: System level Parameters minutes: Value of the synchronization timer that is used for clock synchronization from ACSEI server to ACSEI client.

  • Page 21: Display Acsei Client Info

    Use the undo acsei timer monitor command to restore the default. By default, the monitoring timer is set to 5 seconds. Examples # Set the monitor timer for ACSEI server to monitor ACSEI client to 6 seconds. <Sysname> system-view [Sysname] acsei server [Sysname-acsei-server] acsei timer monitor 6 display acsei client info Syntax...
  • Page 22 CPLD Version: 1.00 Bootrom Version: 1.12 CF card: 256 MB Memory: 512 MB Harddisk: 40.0 GB # Display information about all ACSEI clients. <Sysname> display acsei client info Total Client Number: 2 Client ID: 1 Client Description: Hardware: System Software: Application Software: CPU: Intel(R) Pentium(R) M processor 1.40GHz PCB Version: 3.00...

  • Page 23: Display Acsei Client Summary

    Field Description Bootrom Version Boot ROM version of the ACSEI client CF card CF card information of the ACSEI client Memory Memory information of the ACSEI client Harddisk Harddisk information of the ACSEI client display acsei client summary Syntax display acsei client summary [ client-id ] [ | { begin | exclude | include } regular-expression ] View Any view Default level...
  • Page 24 Client ID: 1 Status: Open MAC Address: 00e0-fc0a-c3ef Interface: GigabitEthernet1/0/5 Last registered: 02/08/2007 12:00:00 Client ID: 2 Status: Open MAC Address: 00e0-fa1e-03da Interface: GigabitEthernet1/0/6 Last registered: 02/08/2007 13:00:00 Table 6 Output description Field Description Client ID ID of the ACSEI client Status ACSEI client status MAC Address...

  • Page 25: Index

    Index A D O display acfp client-info,3 display acfp policy-info,4 acfp server enable,3 display acfp rule-info,6 acsei client close,1 1 display acfp server-info,9 acsei client reboot,1 1 display acsei client info,14 acsei server,12 display acsei client summary,16 acsei server enable,12 acsei timer clock-sync,13 acsei timer...
