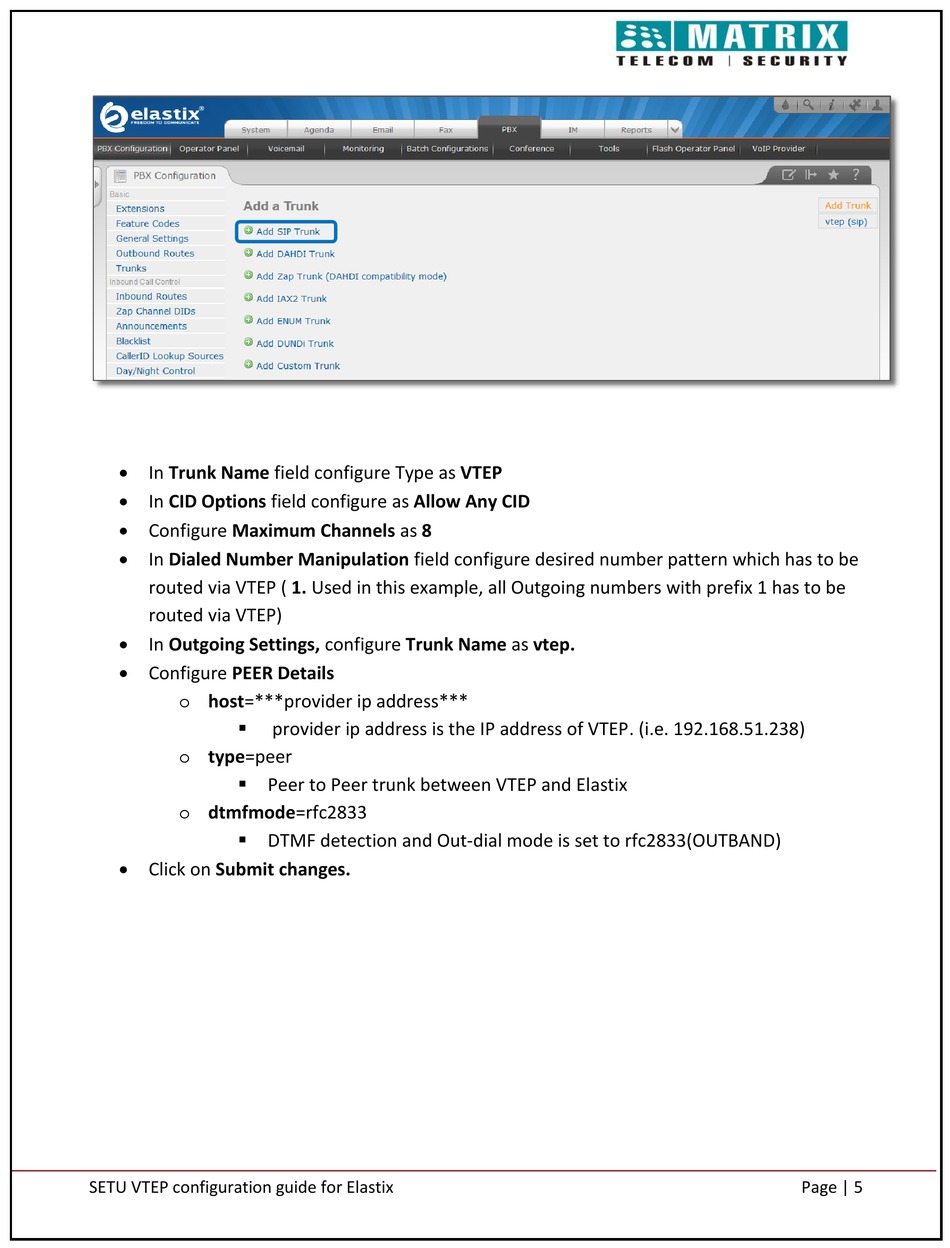

Matrix Telecom SETU VTEP Configuration Manual page 5

 In Trunk Name field configure Type as VTEP
 In CID Options field configure as Allow Any CID
 Configure Maximum Channels as 8
 In Dialed Number Manipulation field configure desired number pattern which has to be
routed via VTEP ( 1. Used in this example, all Outgoing numbers with prefix 1 has to be
routed via VTEP)
 In Outgoing Settings, configure Trunk Name as vtep.
 Configure PEER Details
o host=***provider ip address***

o type=peer
 Peer to Peer trunk between VTEP and Elastix
o dtmfmode=rfc2833
 DTMF detection and Out-dial mode is set to rfc2833(OUTBAND)
 Click on Submit changes.
SETU VTEP configuration guide for Elastix
provider ip address is the IP address of VTEP. (i.e. 192.168.51.238)
Page | 5
