Introduction
This device offers the following features:

Convenient front panel plug-in and testing

Four displays for Watts, PF/VA, V/KHz, Amperes

True power, true RMS for AC Voltage (V) and Current (A)

Datalogger stores over 1000 readings (Model 380803)

Auto Range for Watts and Volts

RS-232 PC Interface (9-pin PC COM port)

Windows XP compatible Application Software
Careful use of this meter will provide years of reliable service.

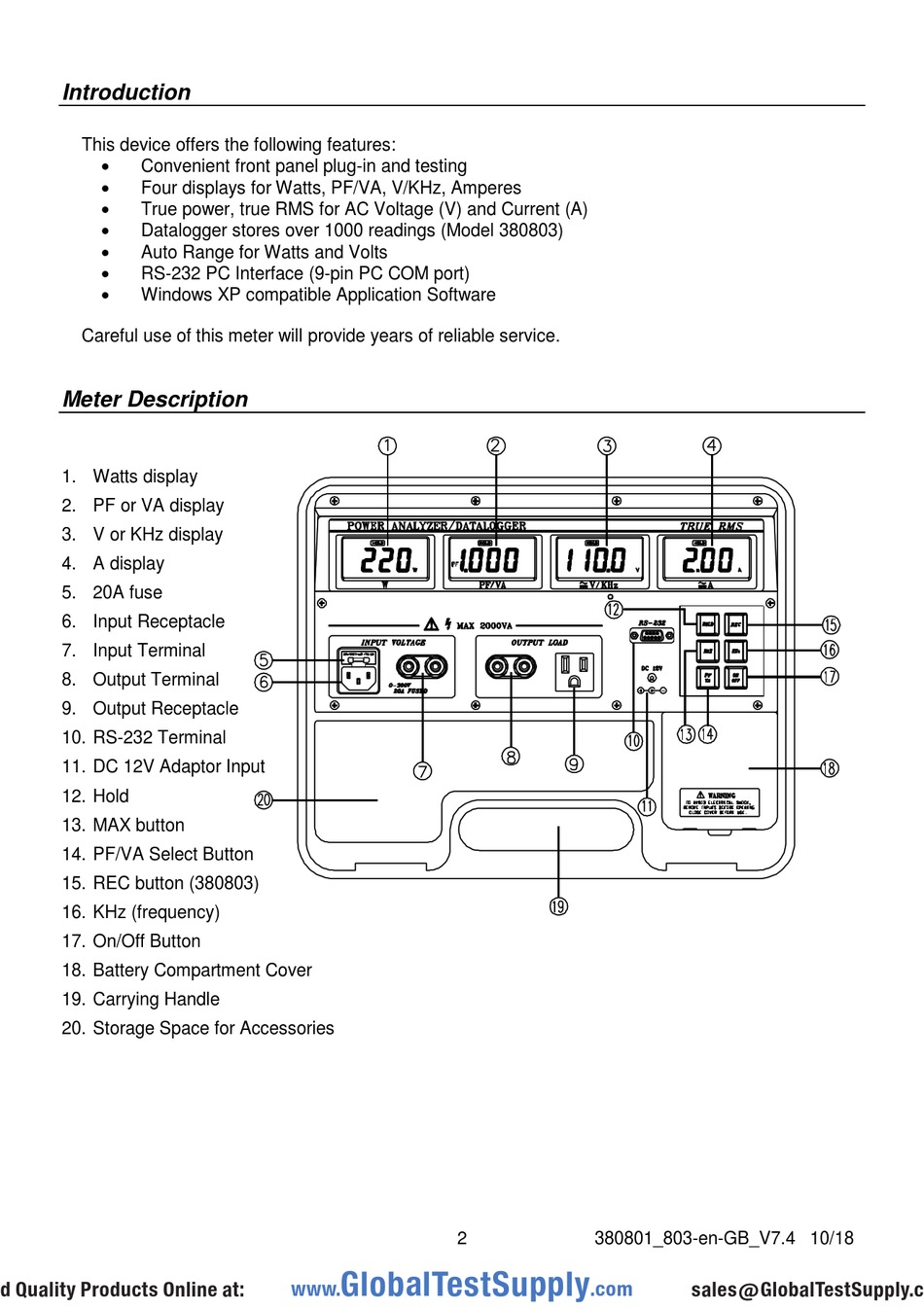

Meter Description
1. Watts display
2. PF or VA display
3. V or KHz display
4. A display
5. 20A fuse
6. Input Receptacle
7. Input Terminal
8. Output Terminal
9. Output Receptacle
10. RS-232 Terminal
11. DC 12V Adaptor Input
12. Hold
13. MAX button
14. PF/VA Select Button
15. REC button (380803)
16. KHz (frequency)
17. On/Off Button
18. Battery Compartment Cover
19. Carrying Handle
20. Storage Space for Accessories
