Lateral
2 light fixture shown above
Also available in 1 light and 3 light fixtures
HOUSING DIMENSIONS
A
FIXTURE TYPE
1 Light
12.51"
2 Light
19.36"
3 Light
26.21"
TRIM DIMENSIONS
FIXTURE TYPE
D
1 Light
5.35"
2 Light
12.20"
3 Light
19.05"
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak

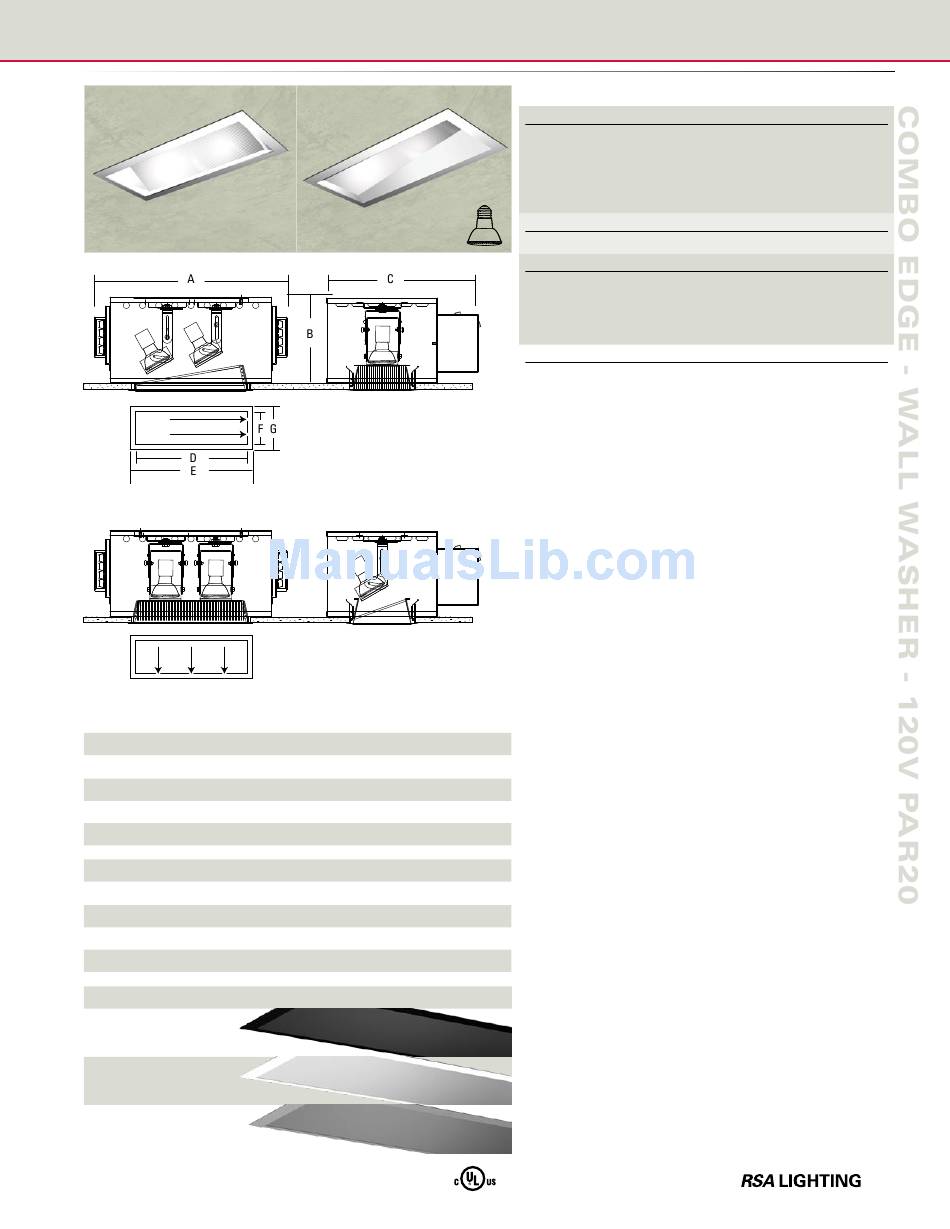

COMBO EDGE - WALL WASHER - 120V PAR20
Transverse
Transverse Configuration
(2 light only)
Lateral Configuration
B
C
CEILING CUT-OUT
8.25"
12.44"
6.10" x 5.97
8.25"
12.44"
12.97" x 5.97"
8.25"
12.44"
19.82" x 5.97"
E
F
6.45"
5.16"
6.26"
13.30"
5.16"
6.26"
20.15"
5.16"
6.26"
Combo EdgE - wAll wAshEr
Fixture Type
CEL1P20
(1) One Light 120V PAR20 - Lateral
CEL2P20
(2) Two Light 120V PAR20 - Lateral
CEL3P20
(3) Three Light 120V PAR20 - Lateral
CET2P20
(2) Two Light 120V PAR20 - Transverse
Wattage
50 watts max 120V PAR20
50
Trim Finish
BK
Black Alzak
White Powder Coat
WH
Clear Alzak
CA
PT
Custom Color (Specify)
Ordering Example
CET2P20-50-CA
2 Light Combo Edge Wall Wash Transverse Configuration for
PAR20 lamp, 50 watts max., Clear Alzak trim
Features
• Available in 1, 2 or 3 light fixtures
(Transverse 2 light only)
• Includes linear spread lens
• Lateral or Transverse configurations for added versatility
• Splayed trim inserts have a 1/2" flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
G
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2" to
1-3/8" ceiling thickness
• Configured for line voltage connection
• Electrical J-Box easily accessed from below the ceiling
• Includes butterfly brackets for black iron installations
25
