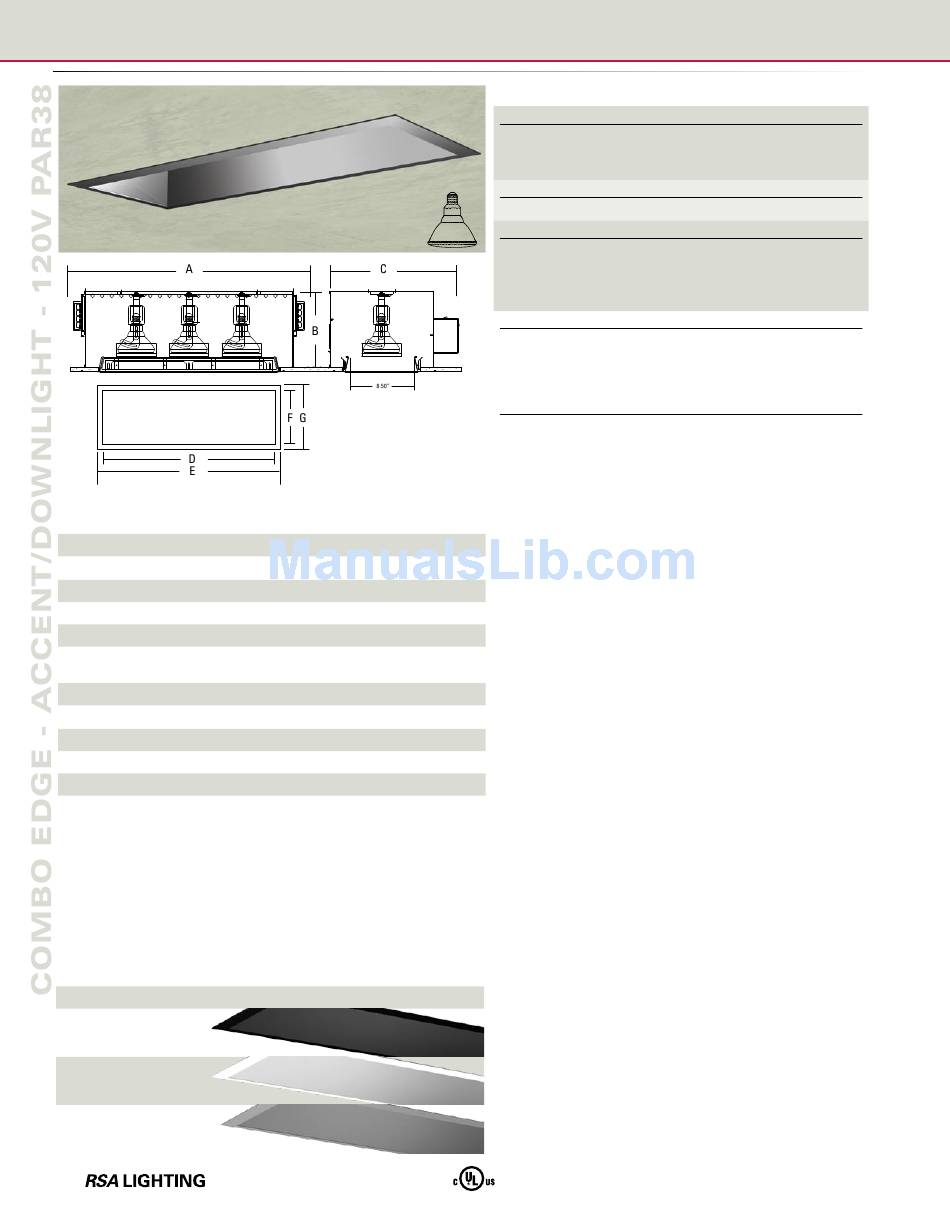

COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR38
3 light fixture shown above
Also available in 1 light and 2 light fixtures
HOUSING DIMENSIONS
FIXTURE TYPE A
1 Light 16.54"
2 Light 25.29"
3 Light 34.04"
TRIM DIMENSIONS
FIXTURE TYPE D
1 Light 9.48"
2 Light 18.23"
3 Light 26.98"
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
12
B C CEILING CUT-OUT
10.86" 16.72" 10.18" x 10.18"
10.86" 16.72" 18.93" x 10.18"
10.86" 16.72" 27.68" x 10.18"
E F
10.58" 9.37" 10.47"
19.33" 9.37" 10.47"
28.08" 9.37" 10.47"
Combo EdgE - ACCEnt/downlight
Fixture Type
CED1P38 (1) One Light 120V PAR38
CED2P38 (2) Two Light 120V PAR38
CED3P38 (3) Three Light 120V PAR38
Wattage
150 150 watts max. 120V PAR38
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
Custom Color (Specify)
PT
Ordering Example
CED3P38-150-CA
3 Light Combo Edge Accent/Downlight for PAR38 lamp, 150 watts
max., Clear Alzak trim
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2" flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
G
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2" to
1-3/8" ceiling thickness
• Configured for line voltage connection
• Electrical J-Box easily accessed from below the ceiling
• Includes butterfly brackets for black iron installations
