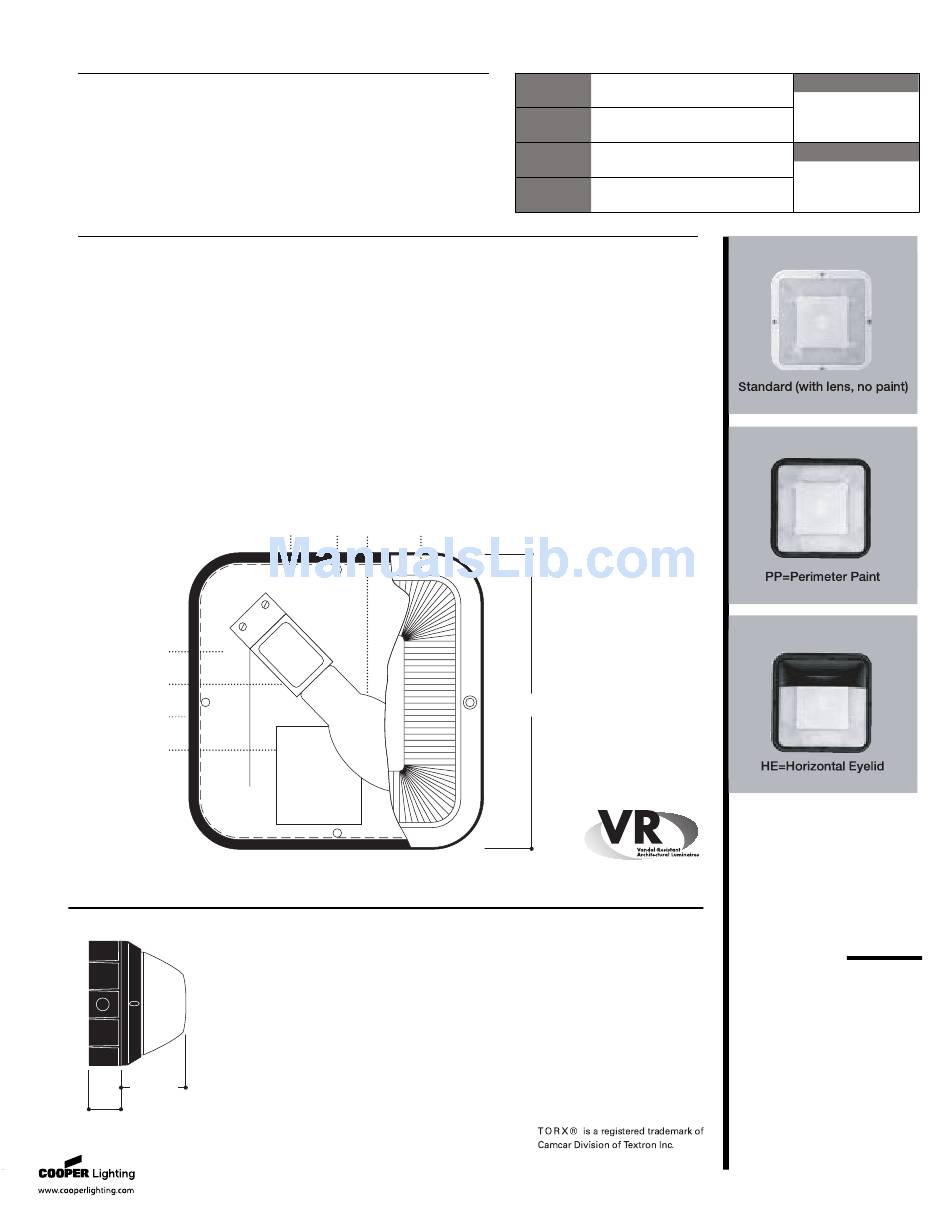

DESCRIPTION
The Fail-Safe VR 2000 9" Square Series combines strength-gaining
architecture with energy-saving technology. Architecturally angled facets
with radius corners actually increase the ability of the lens to deflect blows
and absorb impact. Extra thick injection molded polycarbonate lens
incorporates optical design that obscures the lamp image and spreads light
evenly. U.L. listed and C.S.A. certified for wet locations. Mount on
non-combustible surface.
The durable, versatile 9" Square EC/EW is perfect for use in corridors,
dormitories, public rest rooms, rapid transit stations, loading docks and
minimum security institutions.
SPECIFICATION FEATURES
A ... Lens
One piece injection molded UV
stabilized polycarbonate, min.
0.130" thick. All light control prisms
& blondels are on the inside
surface of the lens, reducing dirt
build-up and making cleaning
easier.
B ... Fasteners
Four stainless steel TORX® screws
with center reject pin. Screw heads
are recessed into lens to maximize
tamper-resistance. Fasteners are
captive in the lens and sealed by
means of a neoprene O-ring.
C
F
G
H
SIDE DIMENSIONS
D e e p
4 11/16"
[119mm]
3 1/8"
[80mm]
C ... Reflector
16 ga. CRS with white high
reflectance polyester powder coat
finish.
D ... Housing
Die-cast aluminum with reinforcing
ribs on exposed sidewalls.
Thickened areas occur at lens
junction and at mounting/fastening
holes. Four 1/4" dia. fasteners are
required for maximum vandal
resistance. Four 1/2" NPT entries
for surface conduit.
D
B
E
A
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
E ... Socket
Porcelain medium base socket with
nickel-plated brass screw shell.
Shock absorbing socket bracket
protects lamp from impact.
F ... Gasket
One piece die-cut closed cell
silicone mounting gasket seals
entire lens and housing.
G ... Ballast
Copper-wound NPF or HPF ballast
available. Consult ordering
information.
9" Sq.
[229mm]
FAIL-SAFE
®
Type
Date
EC
EW
9" SQUARE
35W - 100W
High Pressure Sodium
Metal Halide
POLYCARBONATE
9" SQUARE LUMINAIRE
Clear Prismatic or White
Vandal Resistant
Luminaire
E N E R G Y D AT A
For Energy Management related
technical data to support the
performance of this fixture series,
refer to the ordering information for
input wattage.
ADC041364
04/17/2007 10:11:12 AM
