Cooper Lighting METALUX 248VHO Specifications

DESCRIPTION
The EIVM Series is an energy efficient family of industrials that feature
premium performance and durability. The industrial series incorporates
heavy duty, embossed, reflectors that precisely direct and effectively control
light. The EIVM reflector is a unique design that was developed to prevent
debris accumulation in special applications. The special deep center "V"
reflector provides 30° crosswise shielding to minimize glare. The versatile
EIVM Series can be installed using various mounting methods and
numerous options and accessories are available. The EIVM Series can be
utilized in simple task and area lighting to the most demanding specialized
industrial applications with environmental requirements.
SPECIFICATION FEATURES
A ... Construction
Channel is code gauge prime cold
rolled steel. Die formed with deep
V-grooves for tong hanger. Die
formed channel connector assures
straight rows and continuity of
ground through set screws.
Lampholder mounting brackets are
easily inserted with snap-in action.

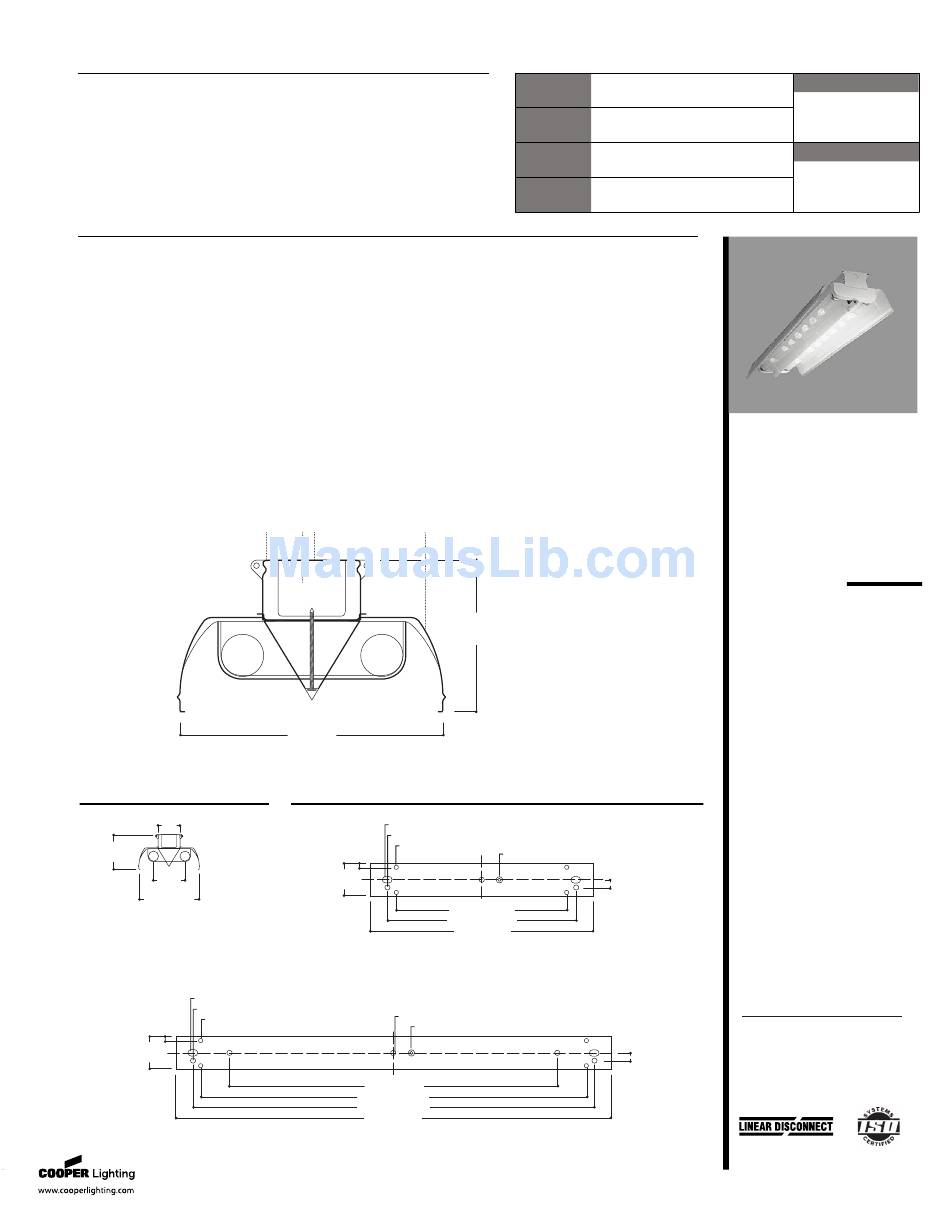

LAMP CONFIGURATIONS
X
6-3/8"
[162mm]
6"
X=4-1/4"
[152mm]
[108mm]
13" [330mm]
11/16" [17mm] x 1 K.O. (2)
7/8" [22mm] K.O. (5)
7/32" [6mm] x 3/8" [10mm] K.O. (4)
5/16"
[8mm]
4-1/4"
[108mm]
Specifications and Dimensions subject to change without notice.
COOPER LIGHTING - METALUX
B ... Electrical*
Ballast are CBM/ETL Class "P" and
positively secured by mounting
bolts. Metal clad lampholders are
spring loaded for turret safety.
UL/CUL listed. Suitable for damp
locations.
C ... Finish
Multistage iron phosphate
pretreatment ensures maximum
bonding and rust inhibitor.
Lighting grade, baked white
enamel finish.
A B C
D
13"
[330mm]
MOUNTING DATA
11/16" [17mm] x 1 K.O. (2)
7/8" [22mm] K.O. (3)
7/32" [6mm] x 3/8" [10mm] K.O. (4)
5/16"
[8mm]
4-1/4"
[108mm]
7/8" [22mm] K.O. (5)
Ground Screw Bump
76" [1930mm]
85-1/4" [2165mm]
89-1/2" [2273mm]
96" [2438mm]
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
D ... Reflectors
Painted after fabrication. Die
formed code gauge steel. Deep
draw full width ribs formed with
one press stroke. Side flanges lend
strength with downward turn.
Reflector design prevents lint, dust
and debris buildup. Easily cleaned.
Baked white enamel 13" width.
Four foot sections. Reflector Center
"V" provides 30° crosswise
shielding and reduces glare.
Reflector and Center "V" retained
by positive mounting bolt.
Reflector aligners provided.
Standard with 20% uplight (EIVM).
Closed top reflector (ECIVM).
6-3/8"
[162mm]
Ground Screw Bump
1-1/16"
[27mm]
37-1/4" [946mm]
41-1/2" [1054mm]
48" [1219mm]
4' OR 8' INDUSTRIAL
POWER GROOVE, 1500 MA
VERY HIGH OUTPUT,
Environmental Heavy Duty
E N E R G Y D ATA
Input Watts:
STD Ballast & STD Lamps
248PG (242)
248VHO (242)
296PG (440)
296VHO (440)
Luminaire Efficacy Rating
LER = FI-60
Catalog Number: EIVM-296PG
Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $4.00
*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.
1-1/16"
[27mm]
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
disconnecting power
09/17/2008 4:50:12 PM
®
Type
Date
EIVM
248PG
296PG
248VHO
296VHO
2 LAMP
1500MA
Industrial
ADF020737
