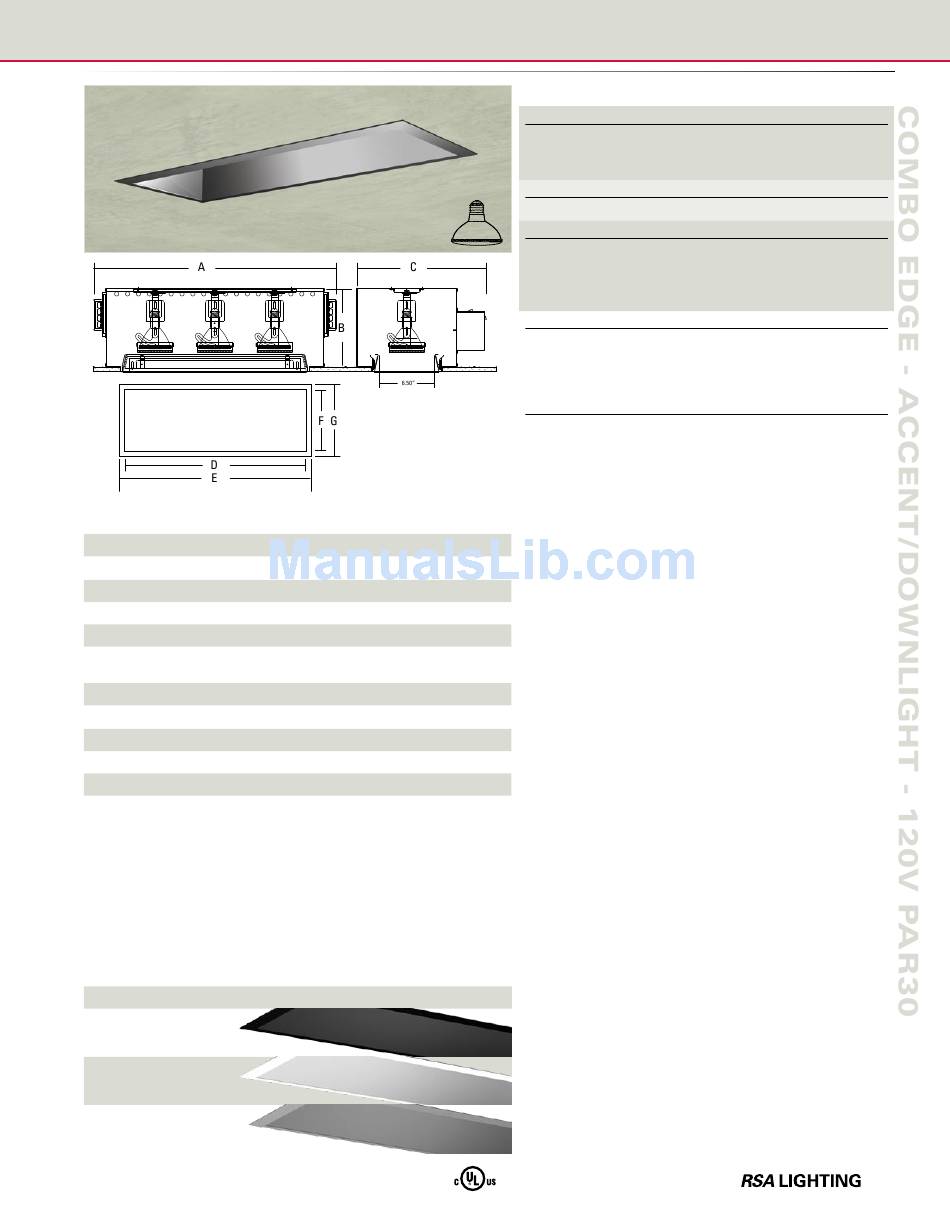

Cooper Lighting Combo Edge Brochure page 11

3 light fixture shown above
Also available in 1 light and 2 light fixtures
HOUSING DIMENSIONS
FIXTURE TYPE A
1 Light 14.36"
2 Light 21.21"
3 Light 28.06"
TRIM DIMENSIONS
FIXTURE TYPE D
1 Light 7.37"
2 Light 14.22"
3 Light 21.07"
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR30
B C CEILING CUT-OUT
9.00" 14.72" 8.074" x 8.18"
9.00" 14.72" 14.92" x 8.18"
9.00" 14.72" 21.72" x 8.18"
E F
8.47" 7.37" 8.47"
15.32" 7.37" 8.47"
22.17" 7.37" 8.47"
Combo EdgE - ACCEnt/downlight
Fixture Type
CED1P30 (1) One Light 120V PAR30
CED2P30 (2) Two Light 120V PAR30
CED3P30 (3) Three Light 120V PAR30
Wattage
75 75 watts max. 120V PAR30
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
Custom Color (Specify)
PT
Ordering Example
CED3P30-75-CA
3 Light Combo Edge Accent/Downlight for PAR30 lamp, 75 watts
max., Clear Alzak trim
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2" flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
G
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2" to
1-3/8" ceiling thickness
• Configured for line voltage connection
• Electrical J-Box easily accessed from below the ceiling
• Includes butterfly brackets for black iron installations
11
