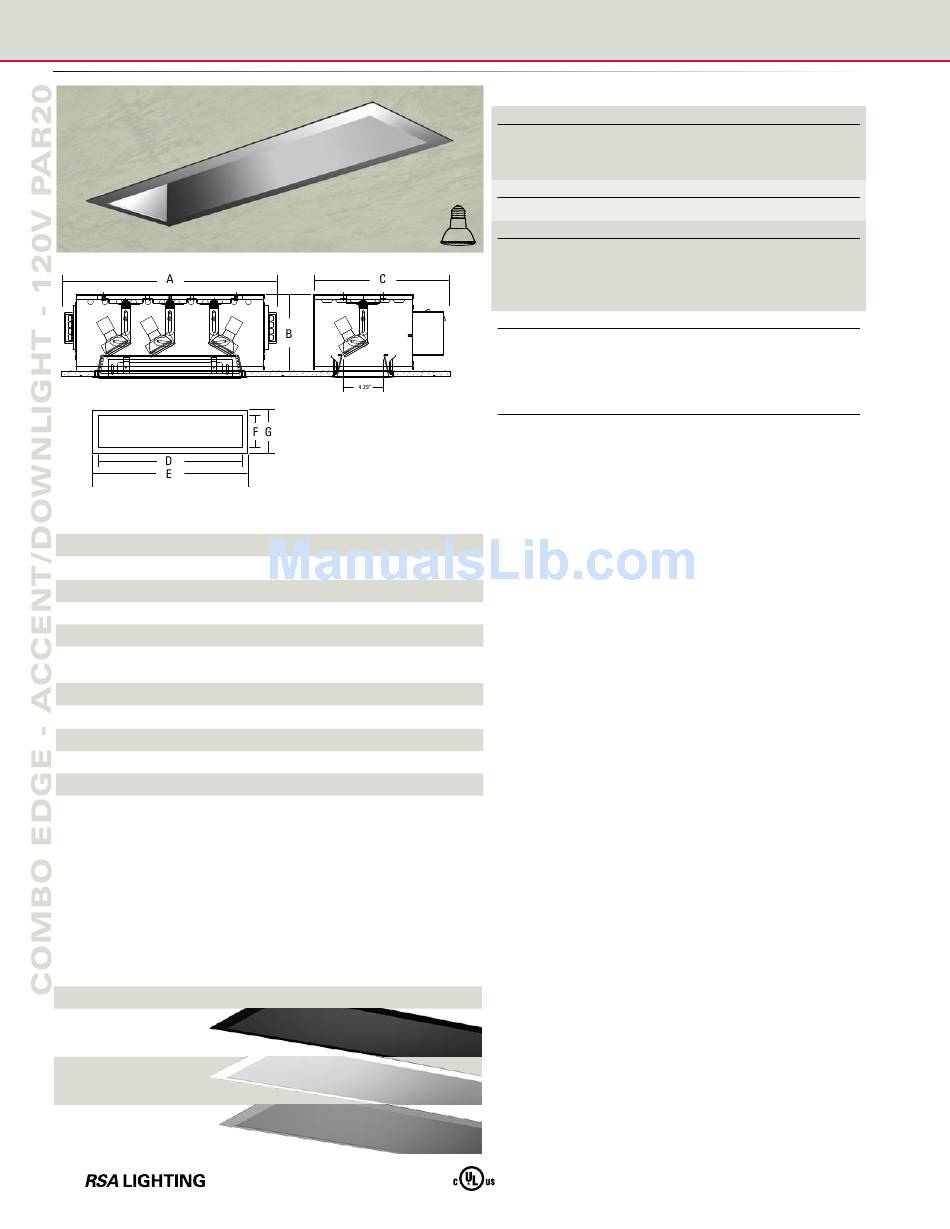

COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR20
3 light fixture shown above
Also available in 1 light and 2 light fixtures
HOUSING DIMENSIONS
FIXTURE TYPE A
1 Light 12.51"
2 Light 19.36"
3 Light 26.21"
TRIM DIMENSIONS
FIXTURE TYPE D
1 Light 5.35"
2 Light 12.20"
3 Light 19.05"
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
10
B C CEILING CUT-OUT
8.25" 12.44" 6.10" x 5.97
8.25" 12.44" 12.97" x 5.97"
8.25" 12.44" 19.82" x 5.97"
E F
6.45" 5.16" 6.26"
13.30" 5.16" 6.26"
20.15" 5.16" 6.26"
Combo EdgE - ACCEnt/downlight
Fixture Type
CED1P20 (1) One Light 120V PAR20
CED2P20 (2) Two Light 120V PAR20
CED3P20 (3) Three Light 120V PAR20
Wattage
50 50 watts max. 120V PAR20
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
Custom Color (Specify)
PT
Ordering Example
CED3P20-50-CA
3 Light Combo Edge Accent/Downlight for PAR20 lamp, 50 watts
max., Clear Alzak trim
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2" flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
G
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2" to
1-3/8" ceiling thickness
• Configured for line voltage connection
• Electrical J-Box easily accessed from below the ceiling
• Includes butterfly brackets for black iron installations
