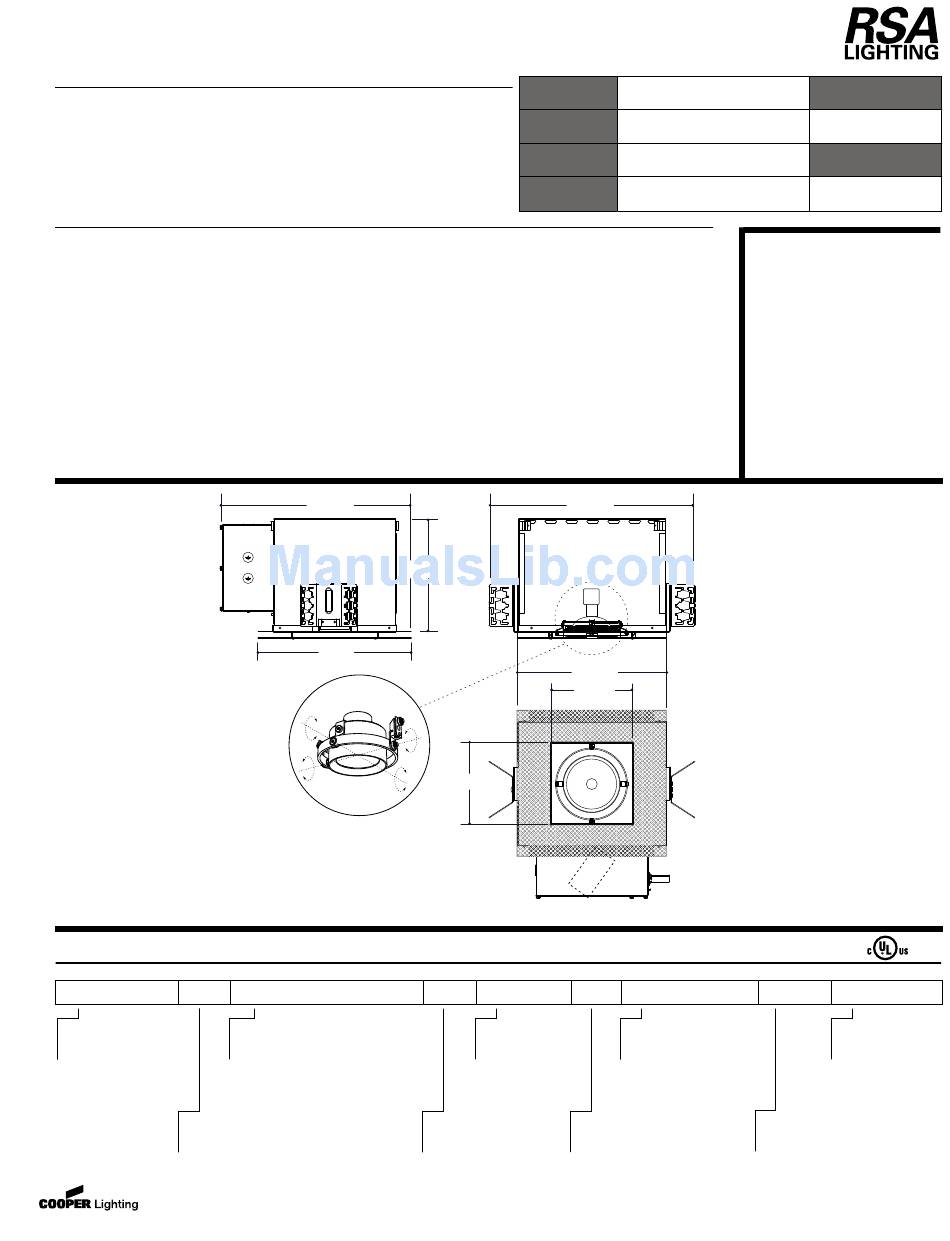

RSA Lighting COMBOLIGHT CDMR111 Specifications

DESCRIPTION

An adjustable Single-lamp Recessed fixture for trimless installation suitable for
downlighting and accent applications. Utilizes ONE (1) CDMR111 Metal Halide
lamp.
For new construction applications. Insulation must be kept 3" from all sides
and at least 1" above the housing.

SPECIFICATION FEATURES

A ... Housing
Housing, junction box & trimless
meshplate assembly are all steel
construction. Perforated meshplate allows
for trimless installation in drywall/plaster
ceilings by allowing the ceiling's mudding
compound to be applied right up to the
edge of the fixture opening. Includes
a beveled "knife-edge" lips to ensure a
clean edge. Can accommodate 0.50" to
1.25" ceiling thickness. Optional Chicago
Plenum configuration available.
B ... System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture. Vent
holes in housing provide cooler operation.
C ... Junction Box
Junction Box is UL listed for through
For use with 39 or 70W CDMR111 Metal halide lamps.

ORDERING INFORMATION

C1
Configuration
C1
= COMBOLIGHT
Recessed One (1) Light
Housing
N New Construction
=
C
= Chicago Plenum
www.cooperlighting.com
branch wiring, 6 #12 90º C supply
conductors or 60º C for end of run. The
fixture is also UL listed as 'access above
ceiling not required'.
D ... Electrical
Electrical accessible through ceiling
opening. J-Box located on the side wall
of the housing behind removable access
doors. Integral electronic metal halide
ballasts on individually removable "trays"
for easy maintenance. May also be con-
figured for remote power.
E ... Lamps
One (1) CDMR111 Metal Halide lamp
mounted in adjustable double gimbal.
Lamp holder is individually removable and
may be regressed 1" for additional cut-off.
Lamp can accept snoot or baffle acces-
sories. 45º x 45º locking lamp adjustment.
16.01"
9.45"
13.01"
Double
Gimbal
45º x 45º
Adjust
Lamp Type / Wattage Label
039C11 = 39 Watt CDMR111 Metal Halide
070C11 70 Watt CDMR111 Metal Halide
=
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Project
Comments
Prepared by
Beveled-edge lamp ring is secured with
threadless, bayonet action. Optional
retractable arm is available for lamp
pulldown and extreme aiming. Includes
GX8.5 sockets.
F ... Mounting
Butterfly Brackets accept 1/2" EMT,
C Channel, Tbar fasteners, and bar
hangers. Four tabs on housing for
securing to structure. Perforated flaps
along housing sides for securing trimless
insert to fixture and drywall.
G ... Labels
cULus listed for non-type IC
applications, suitable for use in damp
locations.
Ceiling Cut-Out: 7.49" x 7.49 "
17.14"
13.01"
6.69"
6.69"
Integral Electronic
Metal Halide Ballast
E N
Power Supply
Voltage
1 120V
=
2 = 277V
Power Supply
Trim Insert
E Electronic Metal Halide
= N = Trimless
Ballast
COMBOLIGHT
Single-Lamp Fixture
CDMR111 Metal Halide
New Construction
Thermal
Protector
Lamp Mechanism
G Double Gimbal
=
R
= Retractable Double Gimbal
Housing Interior/Electrical Door/Sleeve
Finish
W
= White
B Black
=
S = Industrial Silver
Type
Date
®
Next Generation
Recessed
One (1) Light
Housing
Trimless
N
Trim Insert Finish
N
= Trimless
rev 050108
