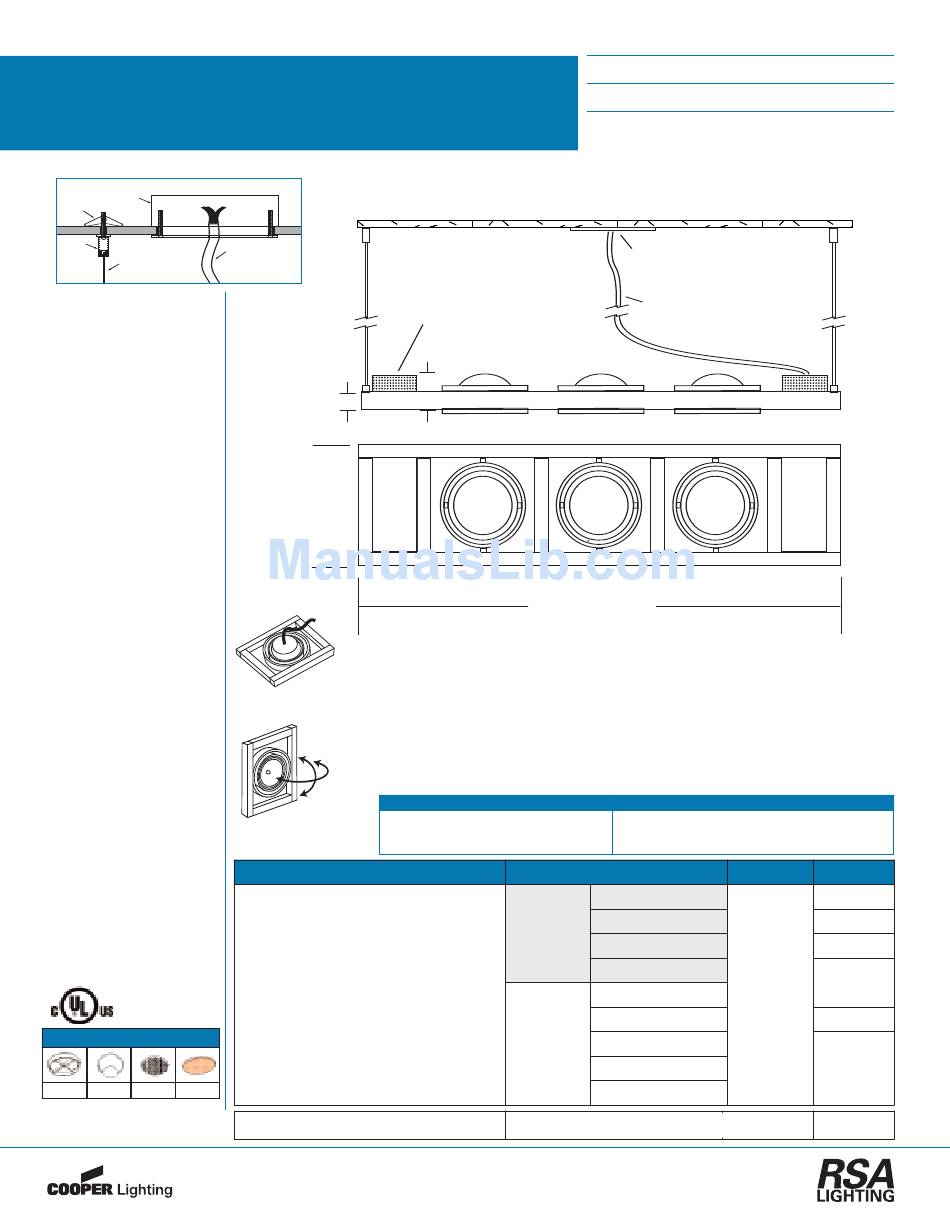

RSA Lighting Combolight Galleria CGSHI Specifications

COMBOLIGHT® GALLERIA Series • CGSHI
THREE (3) Light Horizontal Suspended
Grid Configuration "B" • Lamp Groups 1 & 2
Low Voltage w/ Integral Transformer
Cable Mounting Detail (CGSHI)
Junction Box
120 Volt Primary Leads
Toggle Bolt
Cable
Locking
Aircraft
Device
Suspension
x 4
Cable

DESCRIPTION:

A horizontally suspended, grid style
multi-lamp fixture. Fixture is sus-
pended from the ceiling with 1/16"
steel cable.

CONSTRUCTION:

All aluminum construction. Grid is
made of .75" square aluminum tub-
ing with .062" wall thickness.
Perforated metal transformer enclo-
sure for cooler operation.

LAMP ASSEMBLY:

Three lamps mounted in adjustable
double gimbal lamp holders. Dual
axis 90º x 90º locking adjustability.

ELECTRICAL:

Configured with integral electronic
low voltage transformers. Fused and
short circuit protection. For remote
transformers, see spec sheets for
model number CGSH or CGCH. For
Metal Halide see spec sheets for
models CGSHM or CGCHM.
Dimmable.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Label: UL, CSA and New York
Calendar
This sheet represents a standard
configuration. Custom configura-
tions are available with Galleria
fixtures. Consult RSA for details.
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses

SPECIFY -

Primary Leads in
CGSHI Cable Suspension x 4
Mesh Cable Shield
Integral Electronic
.75"
Lamp Group 1
5.90"
Lamp Group 2
7.40"
Standard lamp back cover for
AR111 models hides lamp
terminals and connections.
90º
90º
GRID CONFIGURATION "B"
This sheet is for Grid Configuration "B". To see
Adjustable double gimbal
other grid configurations, consult other ComboLight
lamp holder accepts up to
Galleria Series spec sheets.
two optical accessories

Cat. # / Description

CGSHI - Horizontal Cable Suspension
CGSHI
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
Low Voltage
Transformer
1.75"
Side View
Bottom
View
Lamp Group 1
23.50"
Lamp Group 2
28.00"
Lamp Type
Lamp Group 1 11 - MR16 12V 50W
12 - MR16 12V 75W
13 - AR70 12V 20W
14 - AR70 12V 50W
Lamp Group 2 21 - PAR36 12V 50W
22 - AR111 12V 35W
23 - AR111 12V 50W
24 - AR111 12V 75W
25 - AR111 12V 100W
___
CGSHI Mounting
4.63" Round J-Box
Coverplate
Power Cord
IMPORTANT: USING THIS SPEC SHEET
This fixture is dimensioned according to lamp type. Please select
lamp from either Lamp Group 1 or 2 - and then refer to the appro-
priate dimensions of fixture as shown above.
Grid Configuration Finish
B - Three
Light
B
BK - Black
WH - White
S - Silver
PC - Polished
Chrome
PT - Custom
